TOELLNER TOE 9261 - Views and Diagrams; TOE 9261 Front Panel View and Labels; TOE 9261 Rear Panel View and Labels

Section 5 – Views
TOELLNER Electronic Instrumente GmbH
21
5. Views

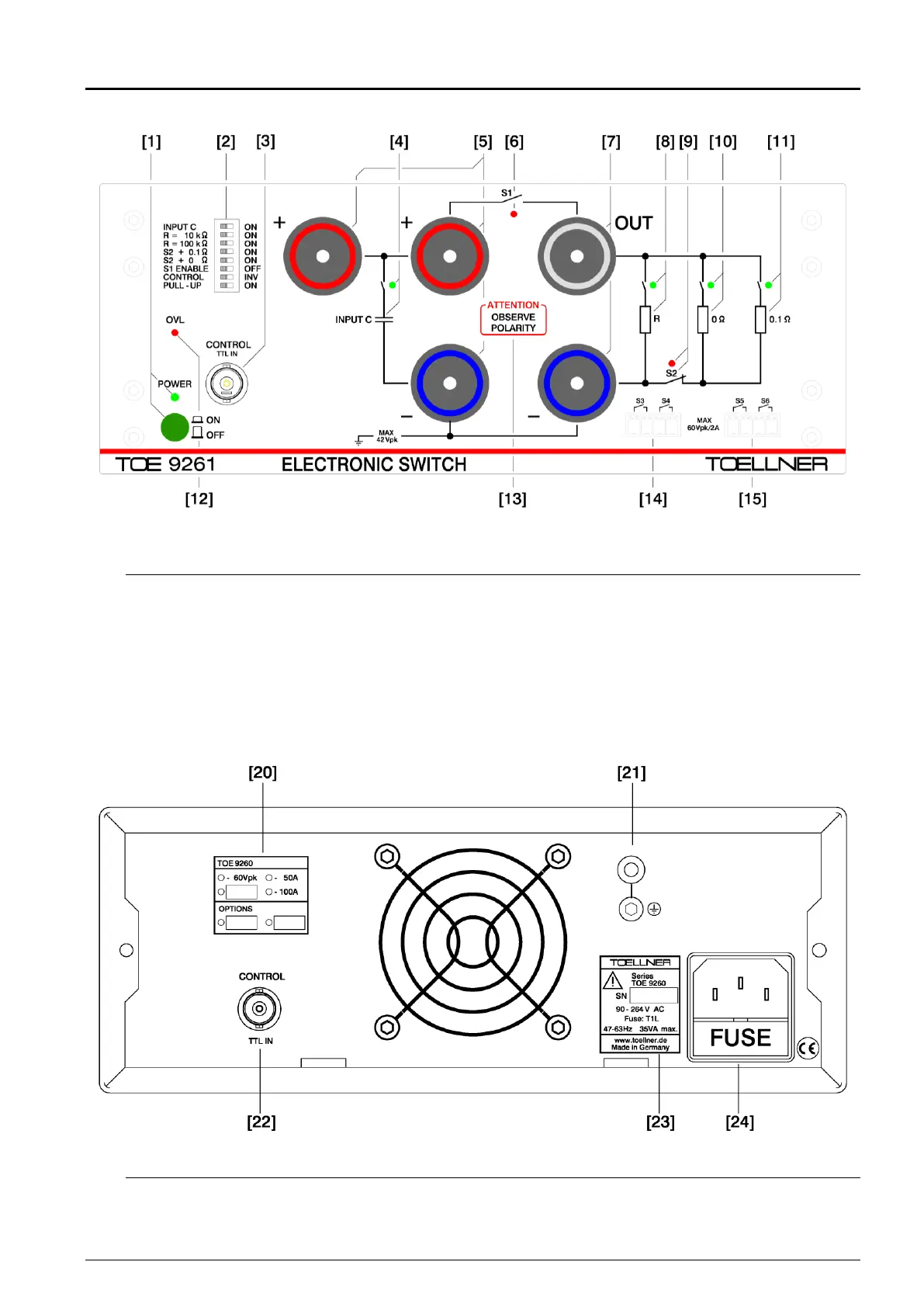

Front panel view of the TOE 9261
[1]
Mains switch with green POWER LED
[2]
8x DIL switch
[3]
Front BNC control input
[4]
Selectable input buffer capacitor with green indication
LED
[5]
Power switch input
[6]
Power switch, longitudinal path incl. red indication LED
[7]
Power switch output
[8]
Selectable base load 10 kΩ or 100 kΩ with green
indication LED
[9]
Power switch, branch path incl. red indication LED
[10]
0 Ω series resistor for branch path with green
indication LED
[11]
0.1 Ω series resistor for branch path with green
indication LED
[12]
Red OVL LED (overload)
[13]
Polarity reminder
[14]
Connections for signal line switches S3 and S4
[15]
Connections for signal line switches S5 and S6
Rear view of the TOE 9261
[20]
Identifier
[21]
Protective earth
Do not unscrew!
[22]
Rear BNC control input
[23]
Rating plate
[24]
Mains panel plug, with fuse
