16

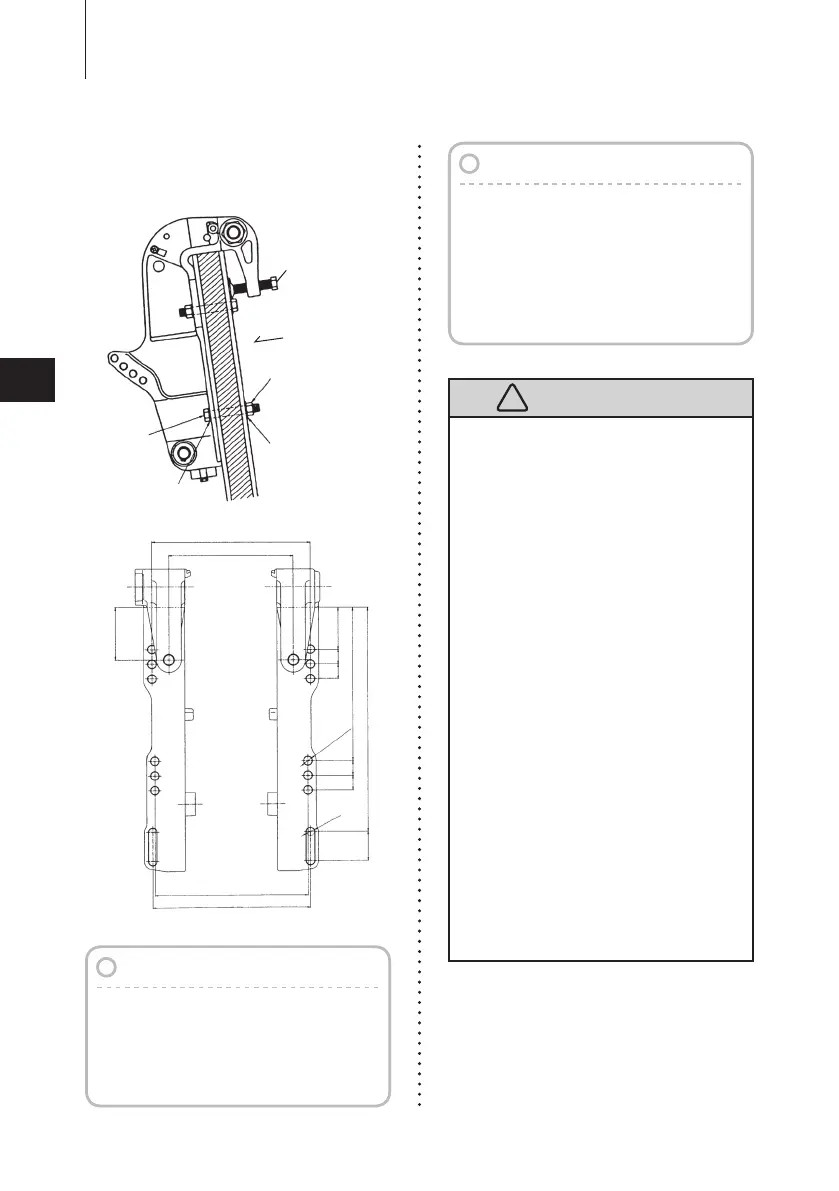

INSTALLATION
4
EFT, EPT type
②
Power Tilt and Gas Assist type
Notes
1. Apply sealing agent such as
silicone sealed between the bolts
and transom board holes before
tightening the bolts.
2. Be sure to tighten mounting bolt
nuts to the specified torque. (30
Nm(3.0kgf)13ft·lb)
Note
It is recommended to install upper
mounting bolts with bolt head at
inside surface of transom. Bolts with
threaded end at inside surface of
transom can cause personal injury.
!
●
Mounting the outboard motor without
following this manual can lead to
unsafe conditions such as poor
maneuverability, lack of control or fire.
●
Loose clamp screws and/or mounting
bolts can lead to the release or
displacement of the outboard motor,
possibly resulting in lost of control and/
or serious personal injury. Be sure that
fasteners are tightened to the specified
torque (30 Nm (3.0kgf)13ft·lb). Check
the fasteners for tightness from time to
time.
●
Be sure to use outboard mounting
fasteners included in the outboard
motor package or their equivalents
in terms of size, material, quality and
strength.
Tighten fasteners to the specified
torque (30 Nm (3.0kgf)13ft·lb). Test
cruise to check if fasteners are
tightened securely.
●
Outboard motor mounting must
be performed by trained service
person(s) using lift or hoist with
sufficient capacity.
193
187
275
188
64
36
1818
1818
51
194
152
11
12-
10
Nut
Clamp Screw
(EFT type only)
A
Bolt
(8
×
85)
Washer
Washer
OM_E_MFS15C-20C_body_111224.indd 16 11/12/13 12:40
