INSPECTION AND MAINTENANCE76
10
ENOW00086-0
z Do not install propeller without thrust
holder, or propeller boss could be dam-
aged.
z Do not reuse split pin.
z After installing split pin, spread the pin
apart to prevent it from falling out which
could lead to the propeller coming off
during operation.
A worn-out or bent propeller will lower
the motor's performance, and cause
engine trouble.

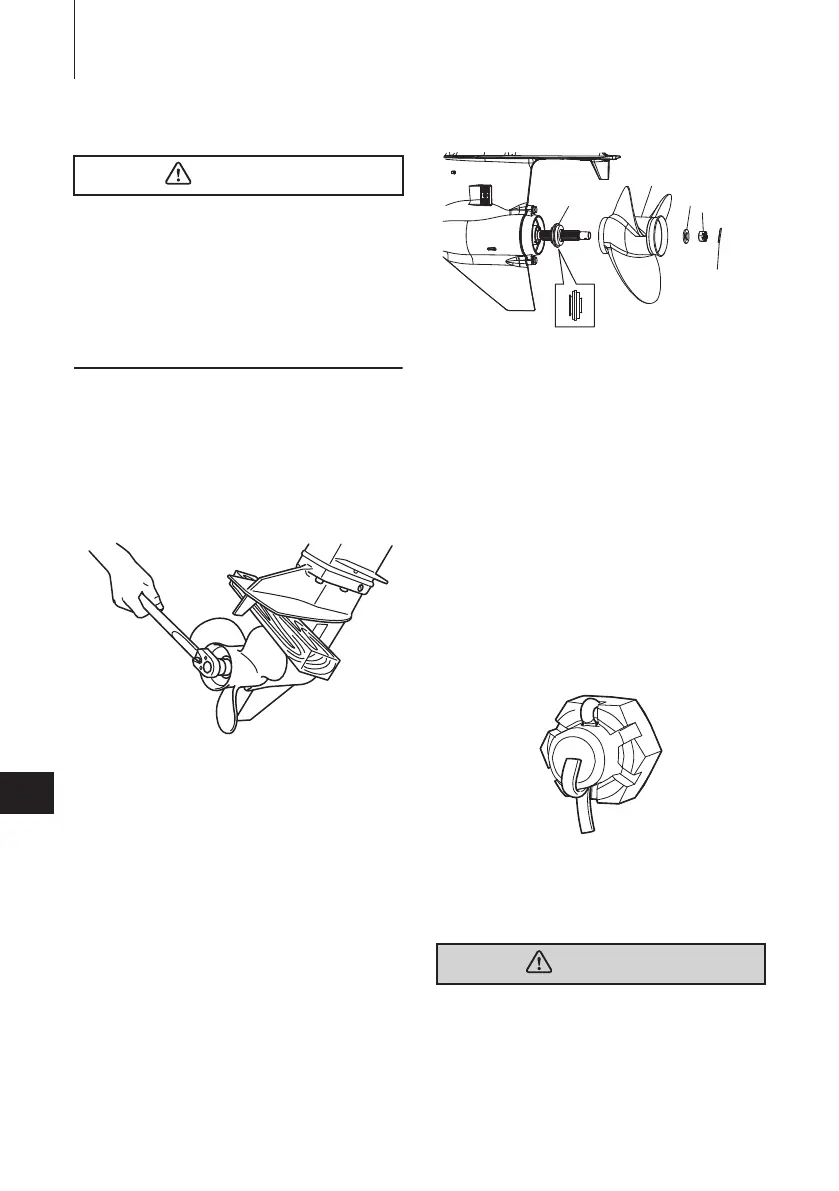

1. Put a piece of wood block between
propeller blade and anti-ventilation
plate to hold propeller.
2. Remove the split pin, propeller nut
and washer.
3. Remove the propeller and thrust
holder.
4. Apply water proof grease to the pro-
peller shaft before installing a new
propeller.
5. Install the thrust holder, propeller,
stopper, washer and propeller nut
onto the shaft.
1. Propeller
2. Thrust holder
3. Washer
4. Propeller nut
5. Split pin
6. Tighten the propeller nut to specified
torque, and align one of grooves to
propeller shaft hole.
Propeller nut torque:
25 Nm
(18 ft
-lb, 2.5kgf-m)
7. Install a new split pin into the nut hole
and bend it.
ENOM00087-A
Spark plugs replacement
ENOW00087-0
z Do not reuse spark plug with damaged
insulation, or sparks can leak through
crack, potentially leading to electric
shock, explosion and/or fire.
CAUTION
ENOF00084-B
WARNING
1
2
3
5
4
ENOF00084-C
ENOF00084-E
