v. After release the torque load, the tool judges the measured data due to Auto
reset timer setting. (If Auto reset timer is off, press "MEM" key to judge the result)
[When judgment is OK]
The blue LED turns on and the tool outputs the measured data to external device.
If the Output format is set to “M3-ID”, it outputs the torque and angle data.
[When judgment is NG]
・ If you select “NGAUTO” in NG setting, solid red LED inform NG result for one
second and all measured data are automatically sent to external device.
・ If you select “NG_MAN”, the left display shows NG judgment result and measured
angle repeated alternatively each 1 second. About NG judgment result, refer the
"1.2. Judgment features".
vi. The tool saves data, send a counter to the next and reset the measured data.

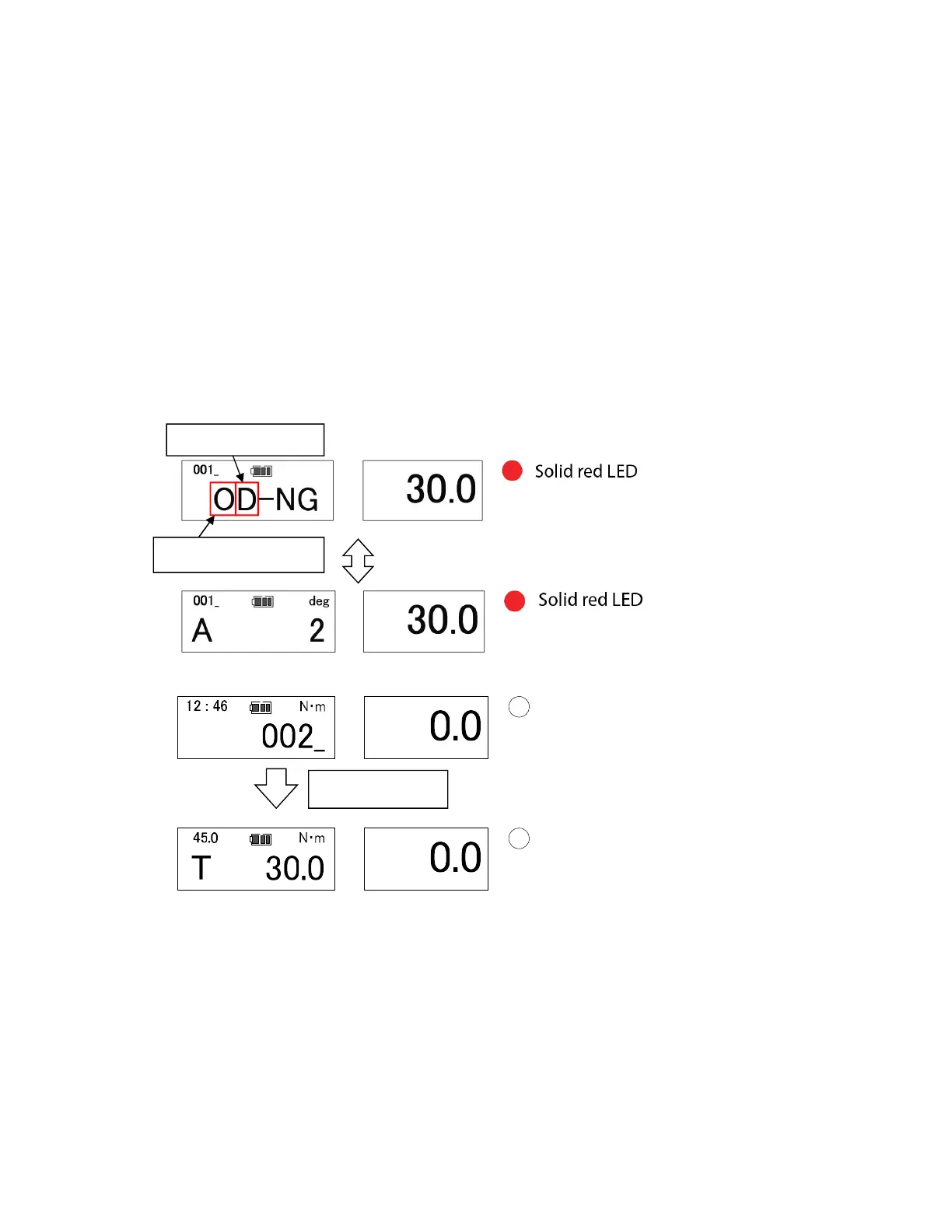

Torque judgment result
Angle judgment result
After 1 second
