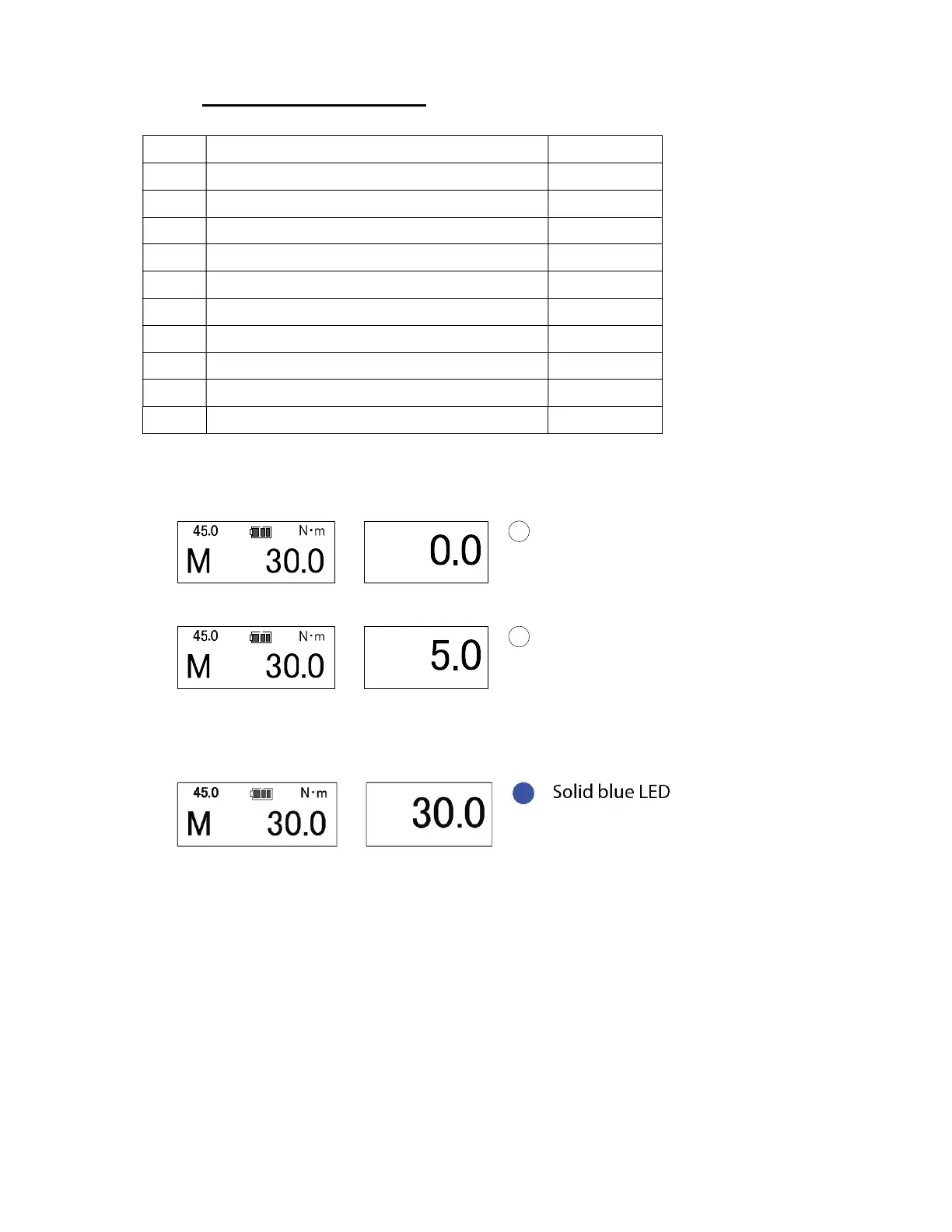

5.2. Inspection mode operation
Shows example on the following settings:
Ang Angle setting ON
SEL Measurement mode setting MODE-M
Lo Lower limit torque setting
35N・m
HI Higher limit torque setting
45N・m
Trg Trigger torque setting
5N・m
An_d Double tightening detection angle setting 0 deg
An_L Lower limit angle setting 10 deg
An_h Higher limit angle setting 50 deg
Ar
Auto reset timer setting
0.5
ng
NG output setting
NG_MAN
dCn
Output format setting
M3+ID
※ Set both the angle setting and trigger torque setting to measure the angle.
i. Set to Peak mode (counter between "001" to "999") and start measurement.
ii. When torque load reaches on trigger torque, starts the angle measurement.
iii. After measure and release the torque load, the tool judges the measured data
due to Auto reset timer setting. (If Auto reset timer is off, press "MEM" key to
judge the result)
