4.19
WEB PLATE

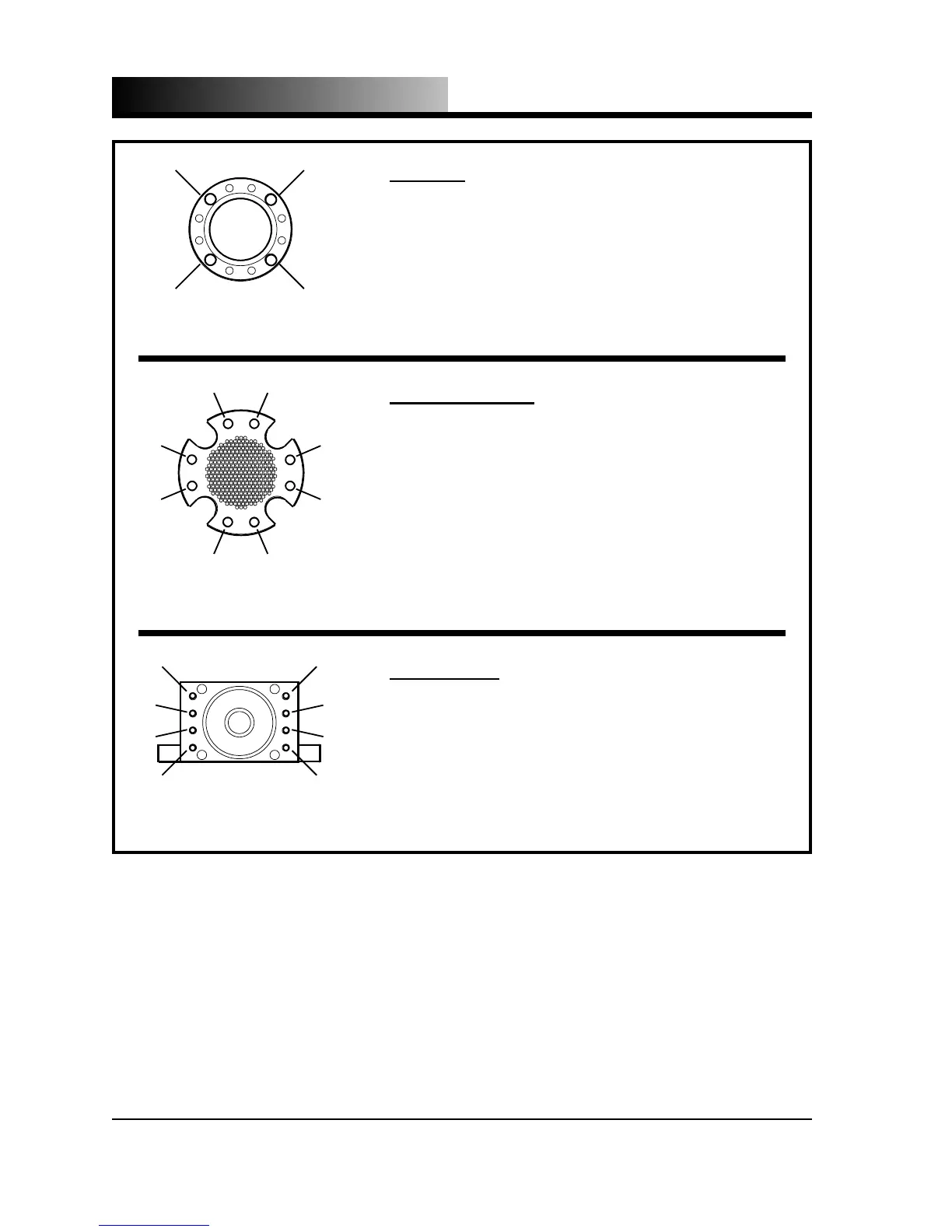

TORQUE SEQUENCE
1
2
6
4
3
7
5 8
WEB PLATE
Fastener - 7/8” - 14 x 4” UNF SHCS
Final Torque Value - 500 ft lbs (69 m kg) (678 Nm)
Figure 4.3.2 - Models DE89RB-500 & DE89RB-1000
Torque Sequences and Values
TIE ROD
Fastener - 1” - 14 UNS tie rod with matching hex nut
Final Torque Value - 700 ft lbs (97 m kg) (951 Nm)
TIE ROD
TORQUE SEQUENCE
1
2
3
4
1
2
6
4
3
7
5 8
EXTRUSION DIE
TORQUE SEQUENCE
EXTRUSION DIE
Fastener - 5/8” - 18 x 3 1/2” UNF Grade 8 SHCS
Final Torque Value - 175 ft lbs (24 m kg) (238 Nm)
