4.20
WEB PLATE
TORQUE SEQUENCE
1
2
6
4
3
7
5 8
WEB PLATE
Fastener - 1 1/4” - 12 x 4” SHCS
Final Torque Value - 1250 ft lbs (173 m kg) (1699 Nm)

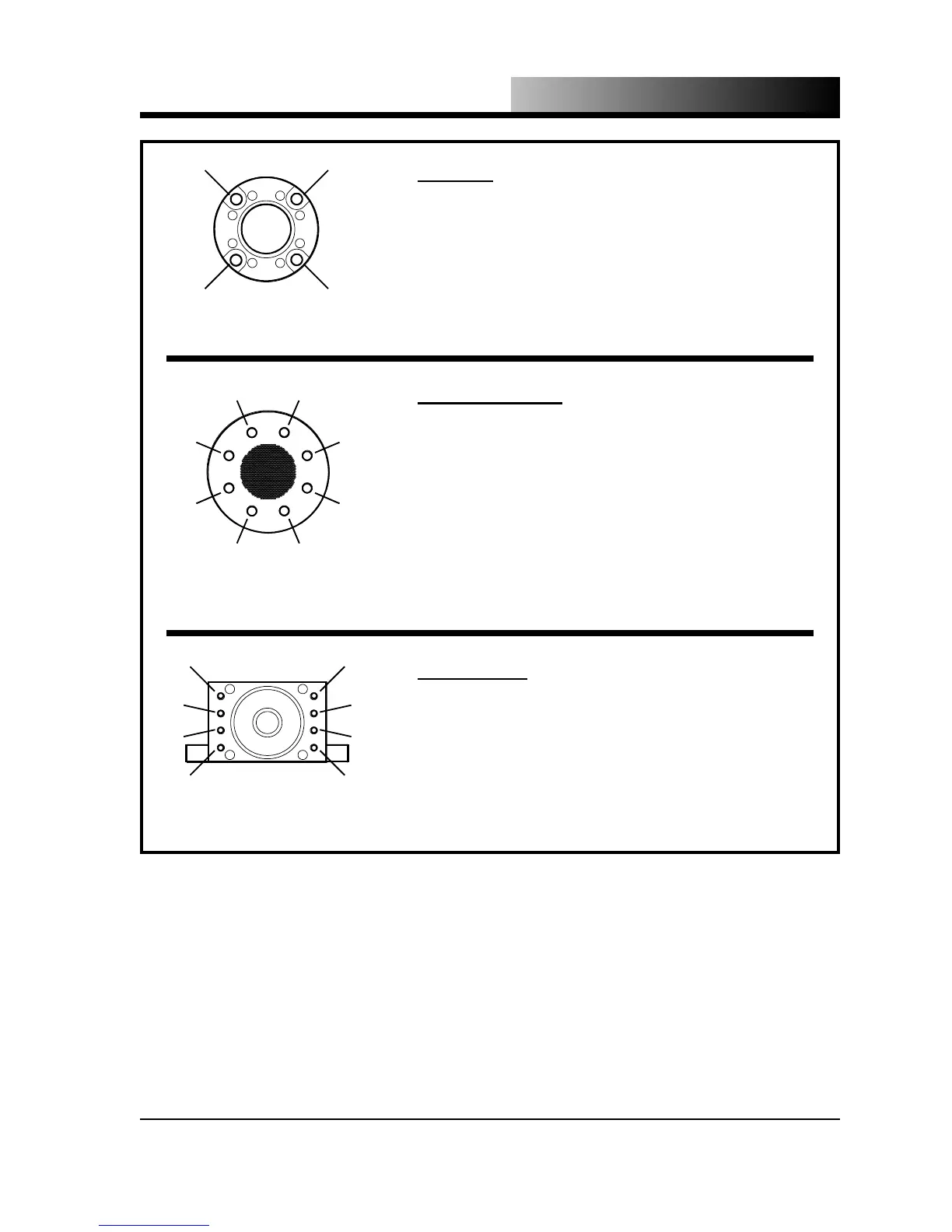

Figure 4.3.3 - Models HP-500 & HP-1000
Torque Sequences and Values
TIE ROD
Fastener - 1 1/4” - 12 UNF Tie Rod with Matching Hex Nut
Final Torque Value - 1250 ft lbs (173 m kg) (1699 Nm)
TIE ROD
TORQUE SEQUENCE
1
2
3
4
1
2
6
4
3
7
5 8
EXTRUSION DIE
TORQUE SEQUENCE
EXTRUSION DIE
Fastener - 1” - 14 x 6” UNF Grade 8 HHCS
Final Torque Value - 475 ft lbs (66 m kg) (646 Nm)
OPERATION & MAINTENANCE
