4.21
WEB PLATE
TORQUE SEQUENCE
1
2
6
4
3
7
5 8
WEB PLATE
Fastener - 1” - 14 x 4 1/2” UNF
Final Torque Value - 700 ft lbs (97 m kg) (951 Nm)

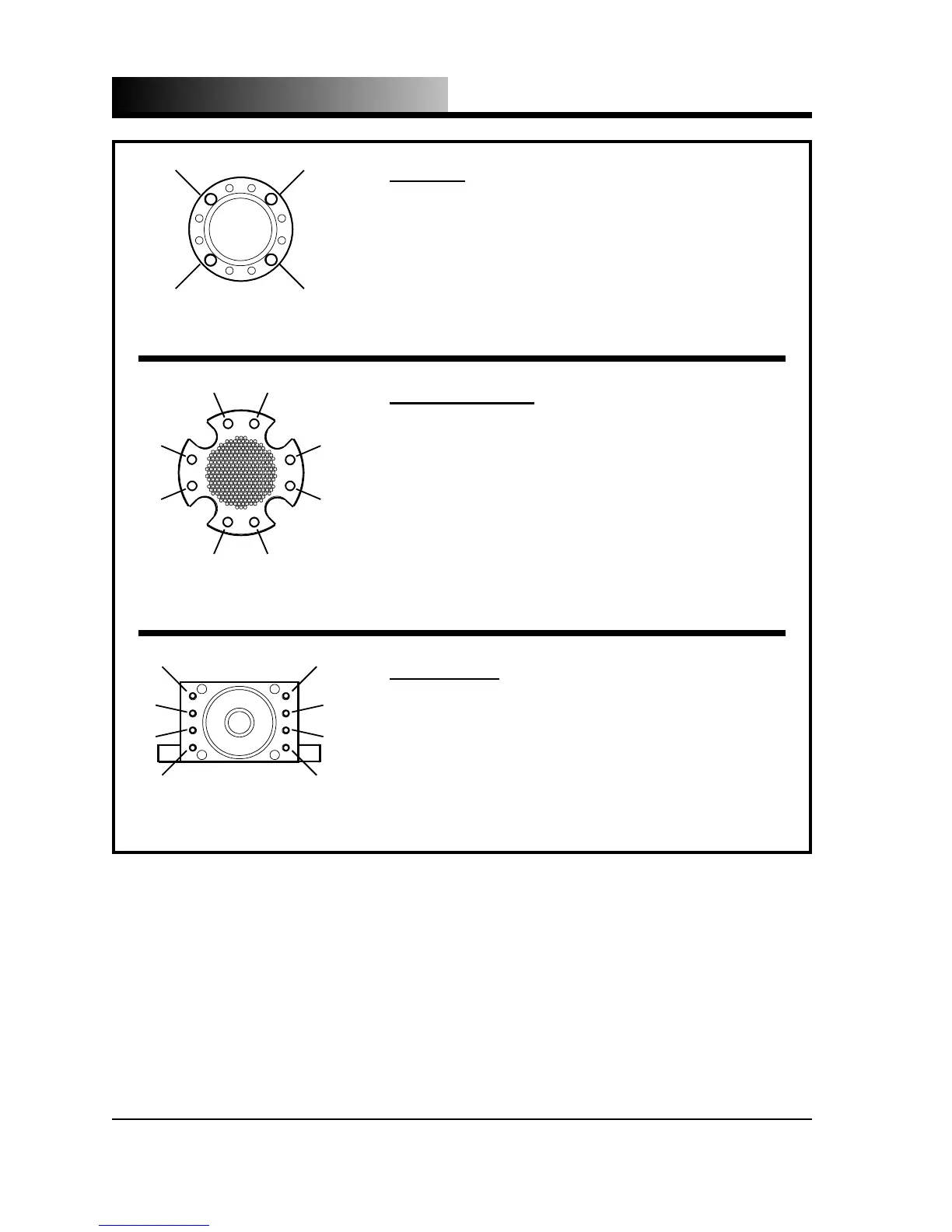

Figure 4.3.4 - Model DE89RB-1500
Torque Sequences and Values
TIE ROD
Fastener - 1 1/8” - 12 UNF Tie Rod with Matching Hex Nut
Final Torque Value - 950 ft lbs (131 m kg) (1291 Nm)
TIE ROD
TORQUE SEQUENCE
1
2
3
4
1
2
6
4
3
7
5 8
EXTRUSION DIE
TORQUE SEQUENCE
EXTRUSION DIE
Fastener - 3/4” - 16 x 3 1/2” UNF Grade 8 SHCS
Final Torque Value - 280 ft lbs (39 m kg) (381 Nm)
OPERATION & MAINTENANCE
