Tomco DE89RB100-US - Page 47

4.22
WEB PLATE
TORQUE SEQUENCE
1
2
6
4
3
7
5 8
WEB PLATE
Fastener - 1 1/4” - 12 x 3 3/4” frt. SHCS (4” rear)
Final Torque Value - 600 ft lbs (83 m kg) (815 Nm)

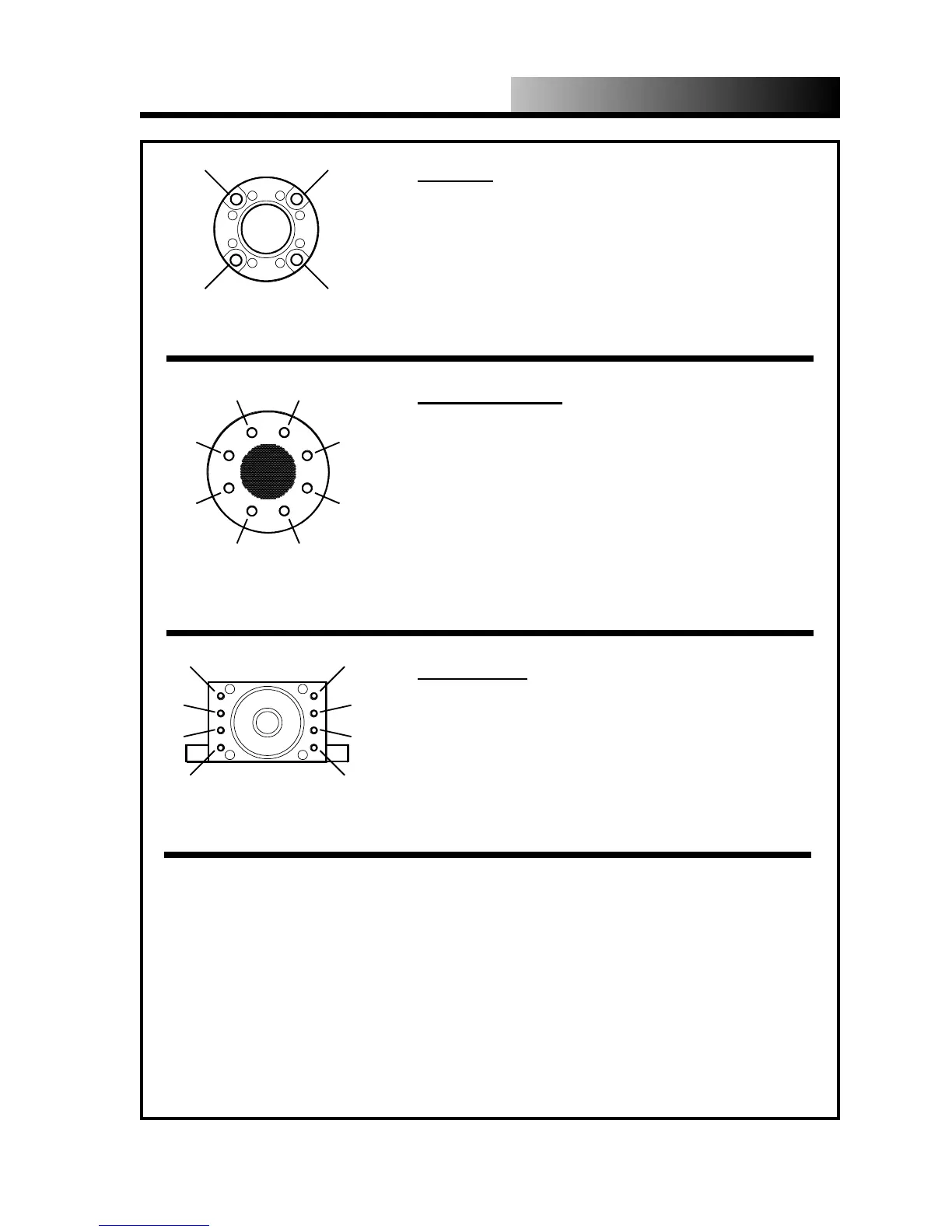

Figure 4.3.5 - High Capacity
Torque Sequences and Values
TIE ROD
Fastener - 1 1/2” - 12 UNF Tie Rod with Matching Hex Nut
Final Torque Value - 1800 ft lbs (249 m kg) (2446 Nm)
TIE ROD
TORQUE SEQUENCE
1
2
3
4
1
2
6
4
3
7
5 8
EXTRUSION DIE
TORQUE SEQUENCE
EXTRUSION DIE
Fastener - 1” - 14 x 7” UNF Grade 8 HHCS
Final Torque Value - 530 ft lbs (73 m kg) (720 Nm)
OPERATION & MAINTENANCE
