3. OPERATION PROCEDURES
3.1 Preparation before use

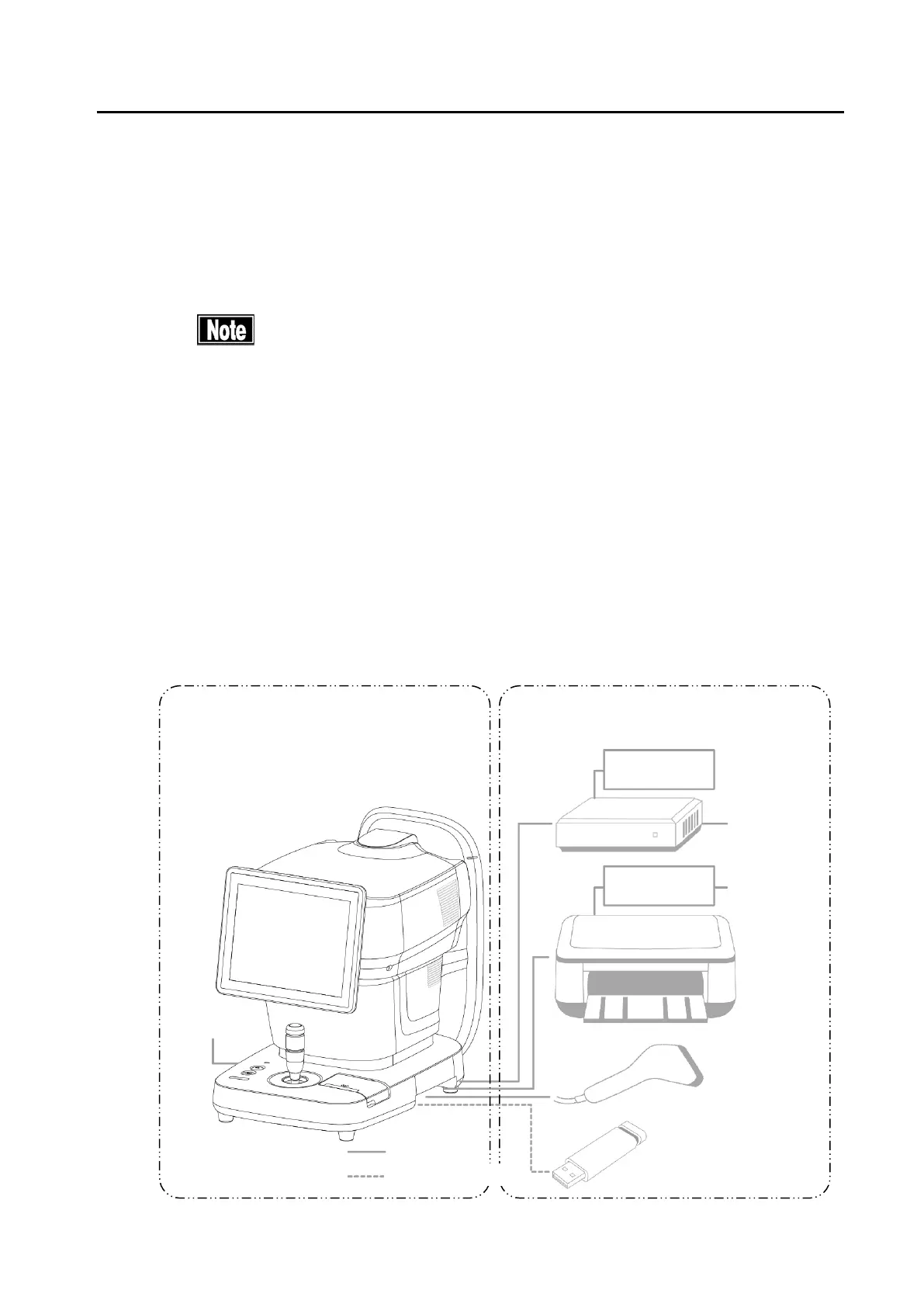

3.1.1 Connection diagram of the system
 Be sure to connect with the external printer and ID input device that
conforms to IEC60601-1 or equivalent safety requirements. Or
connect with devices that conform to IEC60950-1 and whose power
source is insulated with an isolation transformer. Also, take care to
follow the same safety guidelines when changing the connection
system.
 Be sure to connect with an isolation transformer directly without
connecting to a power strip or extension cord.
 Be sure to use devices which connect with this instrument after
confirming the permission environment condition of each operation
manual.
Inside the patient environment
Outside the patient environment
AC Power
AC Power
Isolation
Transformer
AC Power
2 Printer
3 ID Input Device
4 USB Stick
1 Hub
Network into
the hospital
Main unit
ME Device
Non ME Device
：Cable
：Direct Connection
