2-3
Alignment screen
Used for centering the lens
2.3

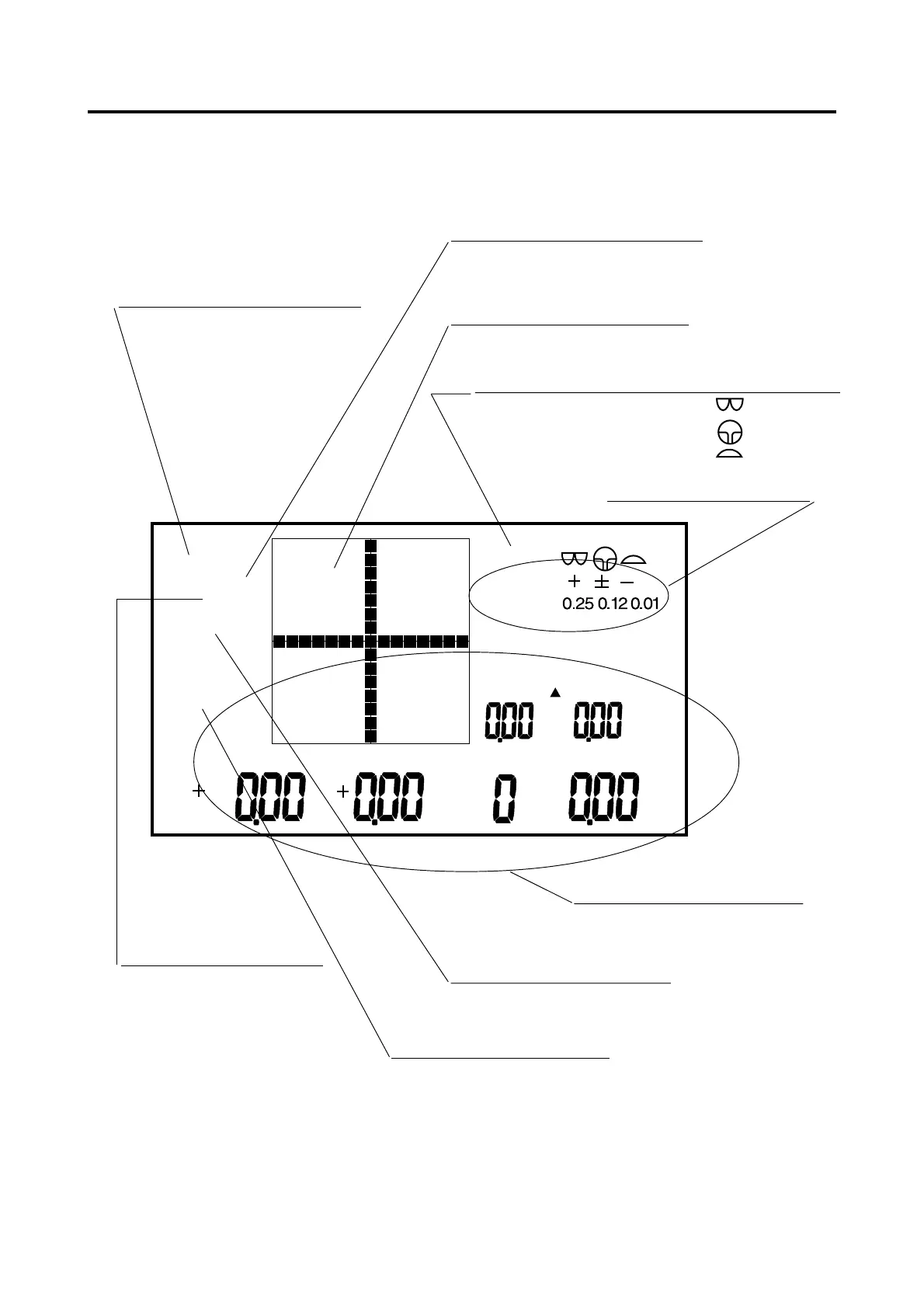

SCREEN LAYOUT
2.3 SCREEN LAYOUT
AUTO
HOLD
HI
ERROR
L R
MODE
CYL
STEP
PRISM
PRISM
A
X
I
S
BO
BI
BU
BD
SPH
C
Y
L
AXIS
ADD
Data area
The reading is displayed.
Holding data
[HOLD]:
Indicates the data are
being held.
Indication of the automatic
measurement mode
[AUTO]:
Automatic measure-
ment mode
The lens to be measured
R: Right lens
L: Left lens
Indication of an ERROR
Lens modes
Single vision lens mode:
Multi-focal lens mode:
Contact lens mode:
High index lens mode
Measuremet Condition
13
15
Table of Contents
Table of Contents
3
Prior to Use
6
Cautionary Notes
6
Unpacking
8
Explanation of Terms
9
Outline of Operation
10
Component List and Functions
12
Front
12
Back
13
Screen Layout
14
Method of Operation
16
Preparation for Operating
16
Measuring Methods
18
Measuring Single Vision Lenses
18
A) Automatic Hold Mode
18
B) Manual Hold Mode
20
Measuring Multi-Focal Lenses (PROG Mode)
22
A) Measuring Progressive Addition Lenses
22
B) Measuring Bifocal Lenses
27
Measuring Prism
30
Measuring High Index Lenses (HI Mode)
31
Measuring Contact Lenses (CL Mode)
32
Recalling the Readings (READING)
34
Detecting Progressive Lenses
35
Operating the Clamp, Marking Device and Lens Table
36
Clamp
36
Marking Device
37
Lens Table
38
Setup
39
LCD Contrast Adjustment
43
Automatic Power Saving Function (AUTO POWER OFF)
44
Maintenance and Inspection
46
Warranty
46
Routine Maintenance
47
Cleaning Cover Glass
47
Replacing Spare Parts
49
Ink Cartridge
49
Storage
51
Packing Materials
51
Troubleshooting
52
Troubleshooting Guide
52
General Operation
52
Progressive Addition Lens Measurement
54
Error Messages
58
Spare Parts
60
Specifications
62
Measurement
62
Data Control
62
Physical Dimensions and Electrical Requirements
62
Environmental Conditions
