4) Remove the ink cartridge and the spring from the marking device.
5) Place a new ink cartridge in the marking device and replace the spring.

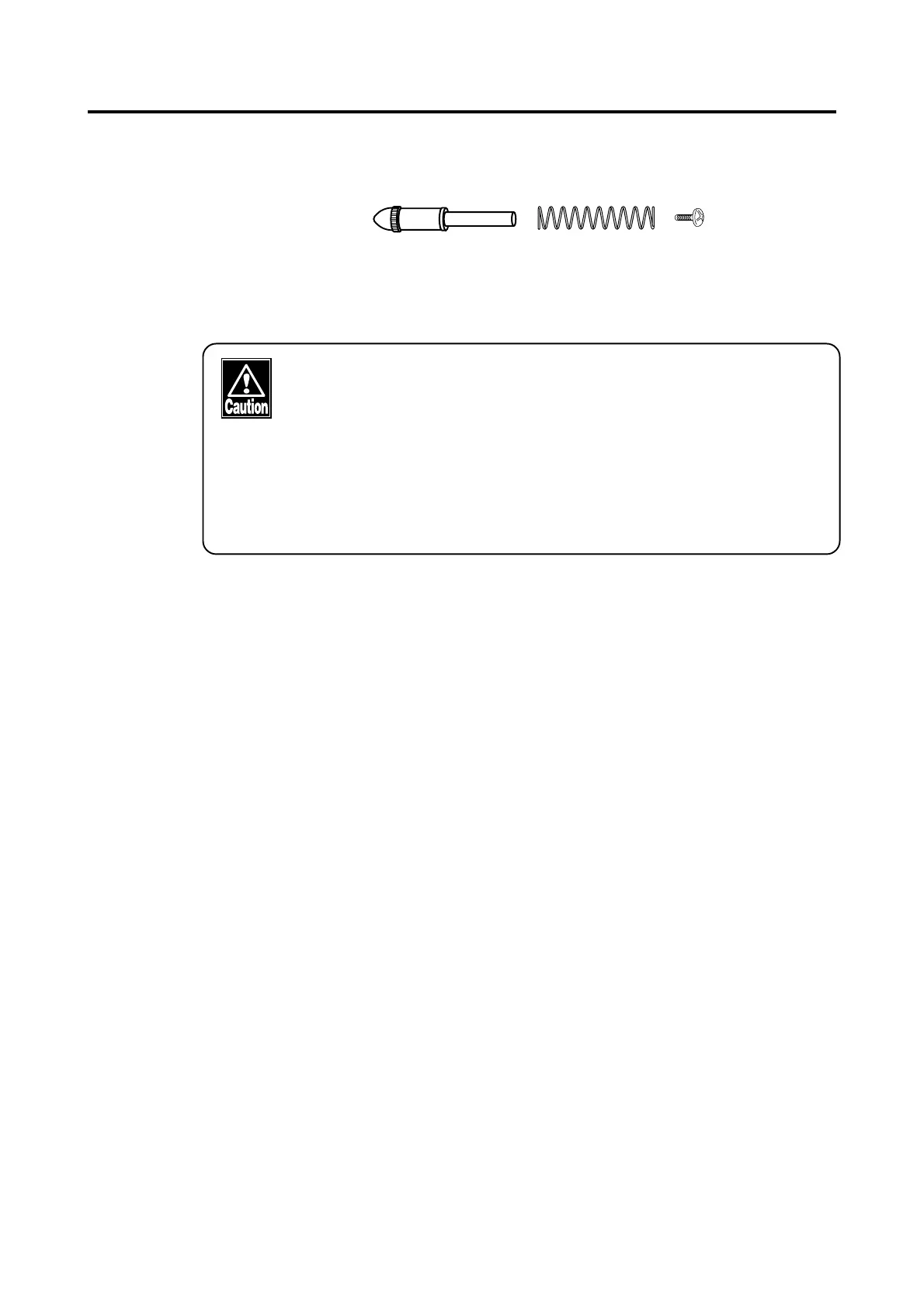

Cartridge Spring Screw
6) Firmly attach the cartridge to the marking device with the screw.
• Do not touch the tip of the pen while replacing the ink
cartridge. Touching the tip may result in damage to the tip of
the pen and the dots marked on the lens may not be accurate.
• Fastening the screw too tightly may result in damage to the
ink cartridge. Use the accompanying screws and springs
only. If the screws and/or the springs are lost , contact your
Tomey representative or local distributor.
4.3 REPLACING SPARE PARTS
