5-4.
Checking the volume of water in the exhaust bottle
Do not bend the exhaust hose.
●
Contravention is dangerous with likelihood of damage to parts and burns,
injury, or serious accident due to explosive breakage because the pressure will
rise abnormally when exhaust is not carried out smoothly.
Check that the water level in the exhaust
bottle is between the lowest and highest
levels.
When the water level is not appropriate,
supply water following the procedures given
below.
Conrm that the operation indication lamp is
not illuminated.
Remove the exhaust bottle gently from the
main unit.
Pull out the exhaust hose from the exhaust
bottle while holding the joint of the exhaust
hose.
Supply water from the water supply/drain
port to the lowest water level.
Insert the joint of the exhaust hose in the rear
of the exhaust bottle.
Pay attention to the orientation so that the
exhaust hose is located at the upper of the
joint of the exhaust hose.
In addition, be careful to avoid the hose from
bending in the exhaust bottle.
Place the exhaust bottle gently in the main
unit.
①
②
③
④
⑤
⑥
⑦
High-temperature steam is exhausted from the autoclave during operation. In order to avoid
accidents such as scalds, check that the volume of water for cooling steam is appropriate.

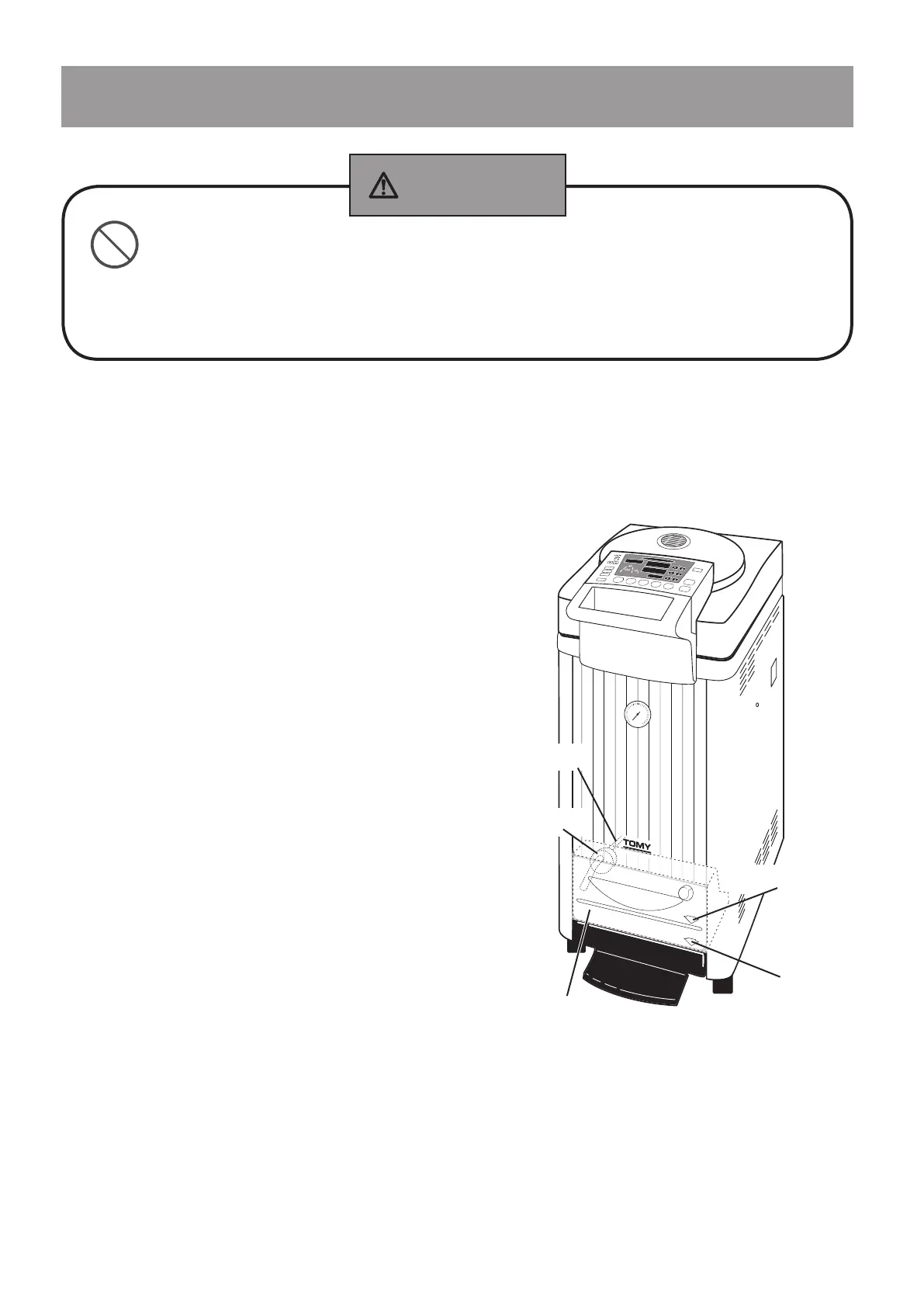

Exhaust bottle
Lowest level
Highest level
Exhaust hose
Joint of
exhaust hose
