ー49ー

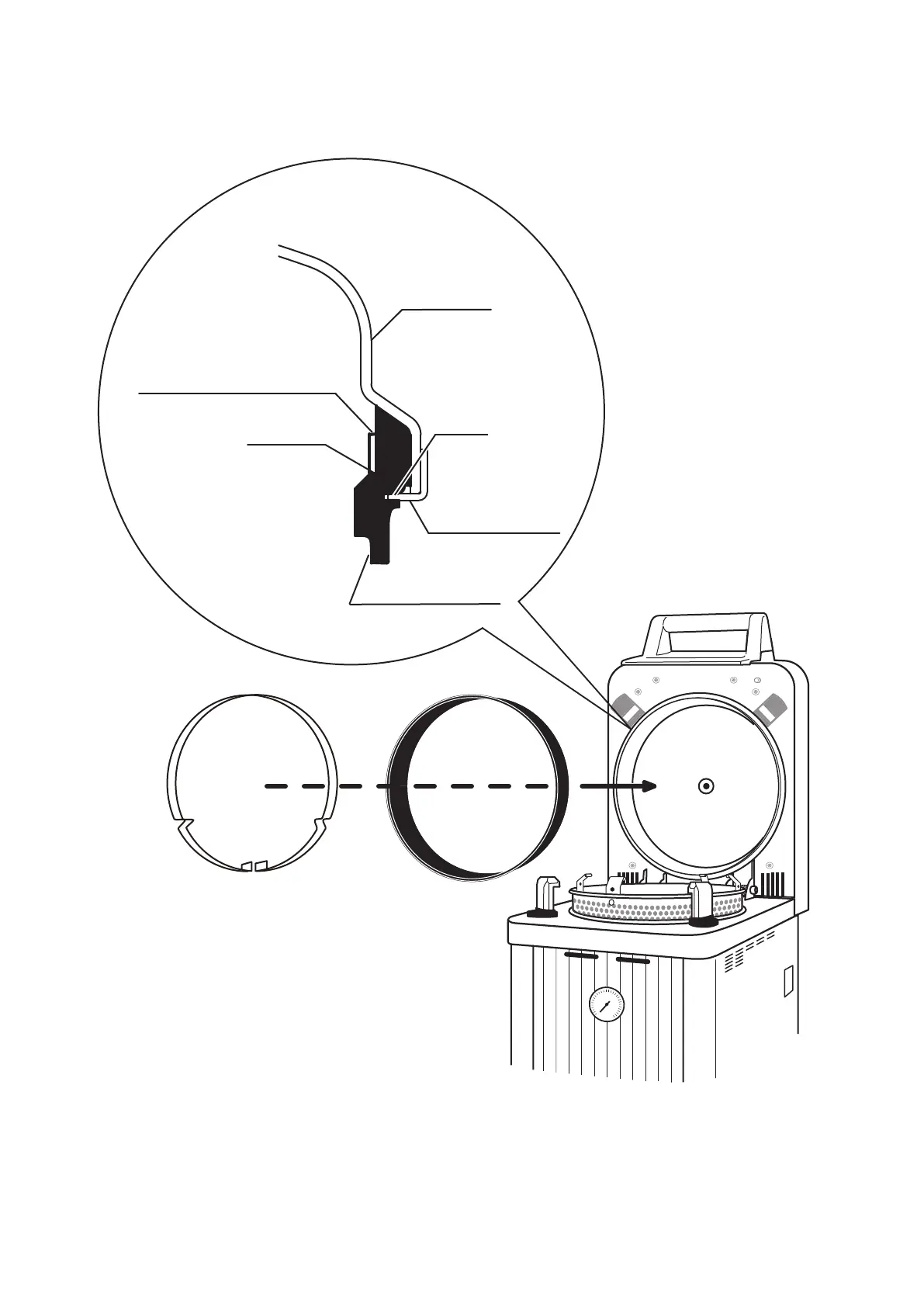

2. Install the chamber lid gasket.
Install the new lid gasket so that the gasket groove rests rmly in the chamber lid guide.
①
Spring band of gasket gland
Chamber lid gasket
Spring band of gasket gland
Chamber lid gasket
Groove
Chamber lid
Chamber lid guide
Alignment
Cutaway view
