Put the spring band of the gasket gland
inside the chamber lid gasket so that the bolt
holding part of the spring band lies beneath
the lid gasket.
※
Do not install the chamber lid gasket with the
spring band of the gasket gland secured with
a bolt. Any deection on the spring band
prevents it from holding down the lid gasket
tighty. Install the chamber lid gasket properly
by following the procedures provided in the
operator's manual.
②

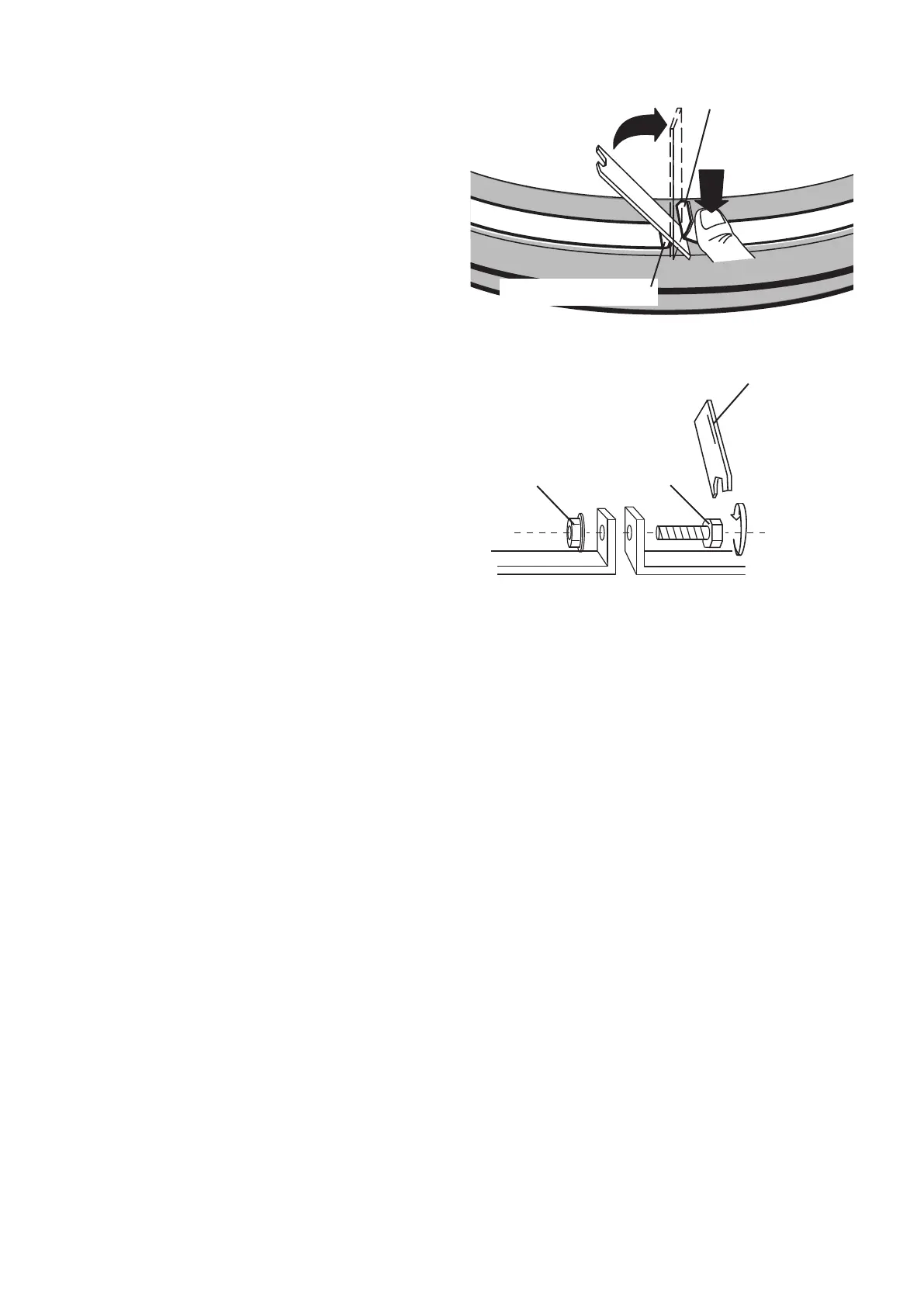

Insert the attached tool handle into the joint
gap in the bolt holding parts of the folded
spring band. Move the tool as shown in
the photo and bring the bolt hoding parts
together while pressing down the top part of
the spring band.
③
Fasten the nut with the attached tool as
shown in the photo to secure the spring
band of the gasket gland.
④
Bolt holding part
Bolt holding part
Attached tool
Bolt
Nut
3. Make a test run.
Make a test run to ensure that there is no steam leak around the chamber lid gasket. Perform
the following procedures to run the test.
Set the temperature for the sterilization cycle at 135°C without placing items to be sterilized
following the 5. Operating Procedures stated in this operator's manual. Set any given value
for the time, cooling fan, and exhaust level.
Start the sterilizing operation.
Make sure that there is no steam leak around the chamber lid gasket until the chamber
temperature reaches 135°C.
※
Immediately stop running the instrument when the steam leak has found and contact your dealer
or the nearest TOMY ofce for an inspection.
Press the stop key to end the operation after conrming that no steam leaks out of the lid.
