Manual TT-188 - 24 -

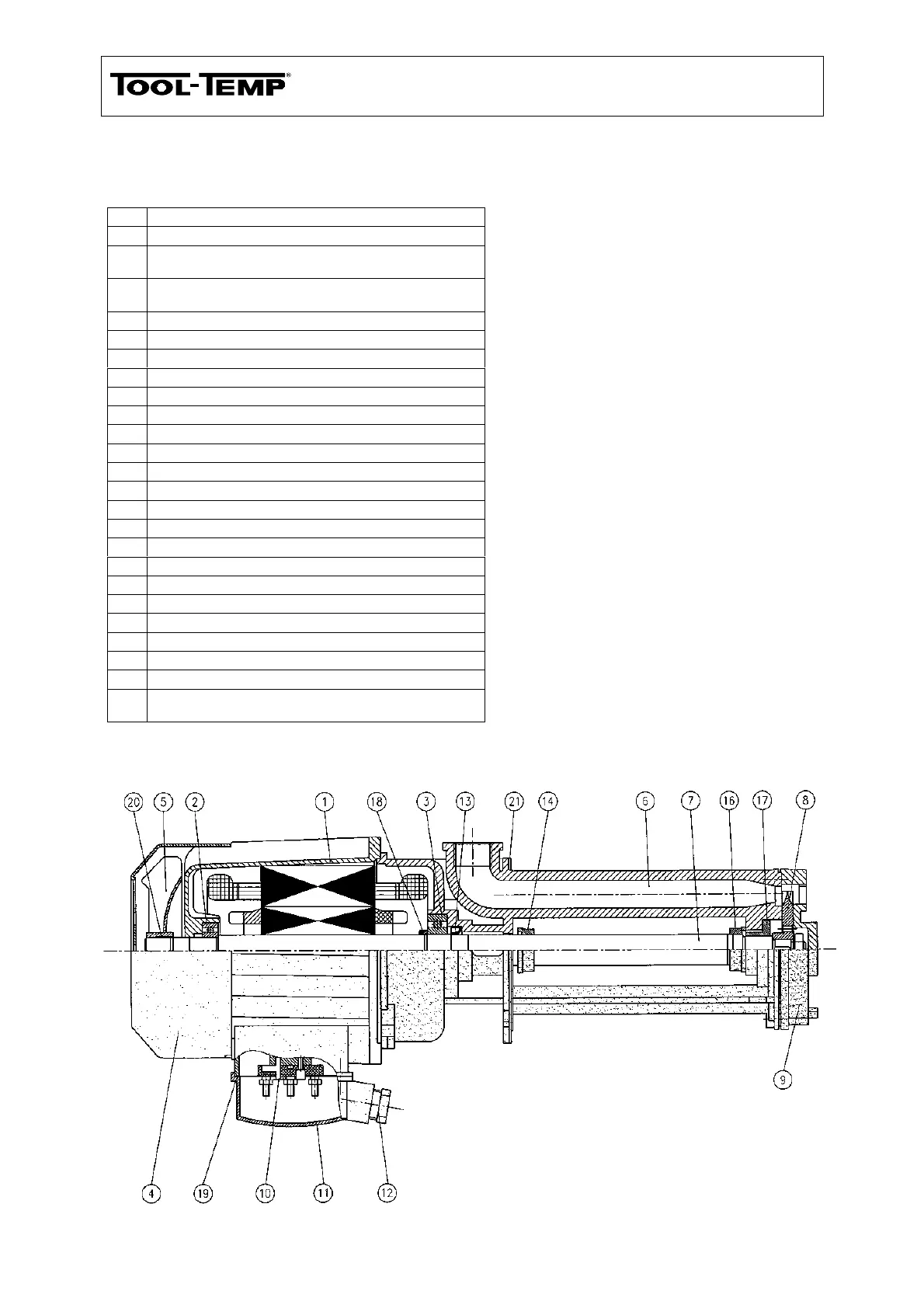

14.2 Pump spares for pump type E

pos. describtion

Pump type E, complete, new

indicate voltage

Pump type E, complete revised,

indicate voltage

1 Stator

2 Ball bearing 6003-Z-C3 MP1

3 Ball bearing 6004-Z-C3 MN4

4 Fan cover

5 Fan

6 Pump support

7 Pump shaft

8 Impeller 50 Hz, Ø 71,5 mm

8 Impeller 60 Hz, Ø 68,5 mm

9 Pump body

10 Terminal board

11 Terminal box

12 Screw type conduit fitting

13 Shaft sealing ring

14 Splash ring

16 Splash ring

17 Flange bushing

18 Bush

19 Terminal box sealing

20 Straining ring

Gasket for pump flange,

100 x 130 x 1,5 mm

Indicate the type of pump according to the serial plate when ordering spare parts.
