Top Photon - Page 13

BAG G Mold G-01-1 Steering Block x 2
PO-DT1004RD-A-1 5.2mm Wheel Hub x 2
PO-DT1004RD-B-1 2 x 10mm Wheel Hub Pin x 2
PO-DT1004RD-C-1 M2 Wheel Hub Screw x 2
MR105ZZ-1 5 x 10 x 4mm Bearing x 4
Page 13

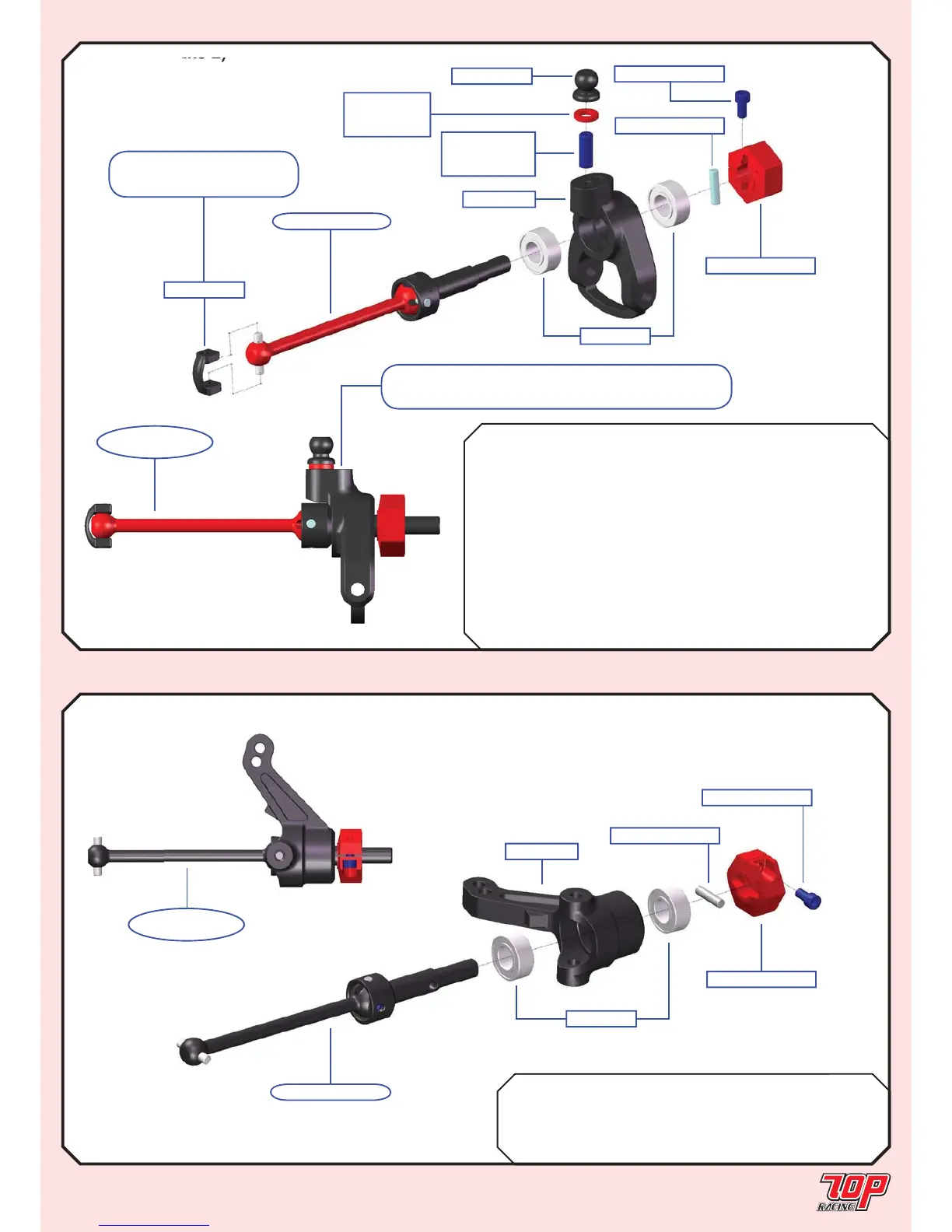

STEP 15 (Make 2)
ake
2)
Mold G-02-1
PO-DT1004RD-A-1
PO-DT1004RD-B-1
PO-DT1004RD-C-1
AW-SxxxRD-1
See parts table
for collar size
MR105ZZ-1
PA-HBS003-1
PO-DT0006-1
PA-SS03xxBK-1
See parts table
for set screw
from STEP 14A
Note: Cut any burr
that might exist.
REAR HUB CARRIER ASSEMBLY
STEP 16A (Make 2 for Rubber Asphalt Edition ONLY)
STEERING BLOCK ASSEMBLY
Rubber Foam
BAG G Mold G-02-1 Rear Hub Carrier x 2 x 2
PO-DT1004RD-A-1 5.2mm Wheel Hub x 2 x 2
PO-DT1004RD-B-1 2 x 10mm Wheel Hub Pin x 2 x 2
PO-DT1004RD-C-1 M2 Wheel Hub Screw x 2 x 2
AW-S250RD-1 3 x 5.5 x 2.5mm Collar x 2
AW-S200RD-1 3 x 5.5 x 2.0mm Collar x 2
AW-S200RD-1 3 x 5.5 x 2.0mm Collar x 2
MR105ZZ-1 5 x 10 x 4mm Bearing x 4 x 4
PA-HBS003-1 5.3mm Ball Stud x 2 x 2
PO-DT0006-1 Dog Bone C Drive x 2 x 2
PA-SS0310BK-1 M3x10mm Set Screw x 2
PA-SS0312BK-1 M3x12mm Set Screw x 2
from STEP 14B
PO-DT1004RD-A-1
MR105ZZ-1
PO-DT1004RD-B-1
PO-DT1004RD-C-1
Mold G-01-1
STEP 16A
FINISHED
STEP 15
FINISHED
Note: Use this screw hole instead for the setup of
foam carpet edition, when installing PA-HBS003-1.
