REAR SUSPENSION

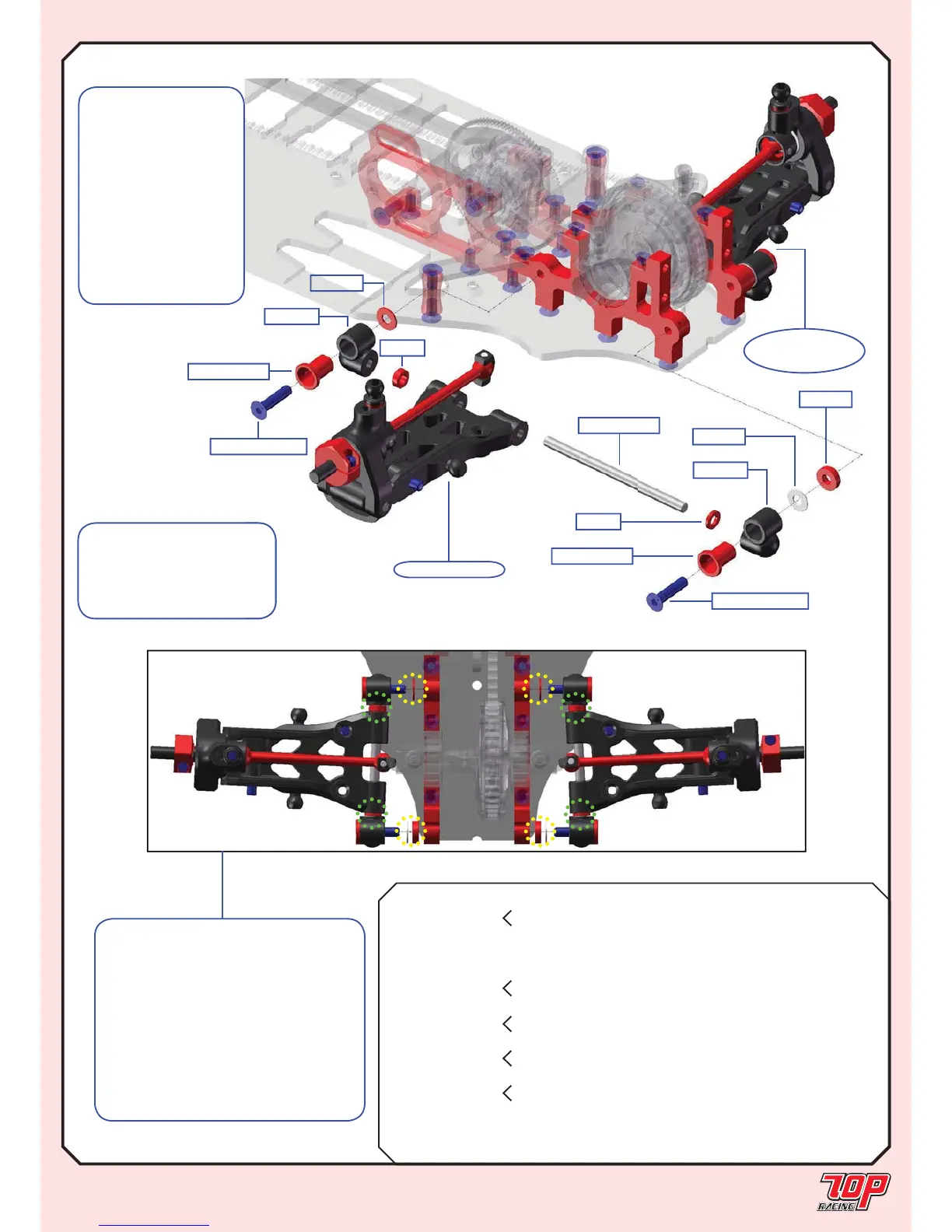

STEP 21
Note: This fi gure shows
the assembly of the left-rear
suspension. Assemble the
right-rear suspension in a
symmetrical manner.
Note:
1. The thicknesses and positions of
the large spacers determines tread
width and toe angle (marked by “yellow
dots”).
2. The thicknesses and positions of
the small spacers determine the wheel
base in the forward/rearward direction
(marked by “green dots”).
*Refer to the setup sheets for more
details.
s
r
ear
the
n
a
PA-CM0314BK-1
TC-PSU002-1
TC-PSU007-1
*ARM4
*ARM3
TC-PSU007-1
*SUSMR
*SUSMR
*SUS4/2
*SUS3/1
*SUS4/1
from STEP 18
STEP 21
(RIGHT SIDE)
FINISHED
PA-CM0316BK-1
Rubber Foam
BAG H
*SUSMR
Mold M-02-1 Suspension Mount M - MRC
x 4
Mold M-03-1 Suspension Mount L - LRC x 4
TC-PSU007-1 Suspension Mount Insert x 4 x 4
TC-PSU002-1 3mm x 51mm Hinge Pin x 2 x 2
*SUS3/1
AW-M100RD-1 Large 3mm Spacer (t = 1.0mm)
x 2
AW-M100RD-1 Large 3mm Spacer (t = 1.0mm) x 2
*SUS4/1
AW-M300RD-1 Large 3mm Spacer (t = 3.0mm) x 2
AW-M300RD-1 Large 3mm Spacer (t = 3.0mm) x 2
*SUS4/2
AW-M040SV-1 Large 3mm Spacer (t = 0.4mm) x 2
AW-M040SV-1 Large 3mm Spacer (t = 0.4mm) x 2
*ARM3
AW-S150RD-1 3 x 5.5 x 1.5mm Collar x 2
AW-S200RD-1 3 x 5.5 x 2.0mm Collar x 2 x 2
*ARM4 AW-S150RD-1 3 x 5.5 x 1.5mm Collar x 2
PA-CM0314BK-1 M3x14mm Countersunk Screw x 2 x 2
PA-CM0316BK-1 M3x16mm Countersunk Screw x 2 x 2
Note: Pay special
attention to the
orientation of TC-
PSU007 according
to the standard setup
sheet for rubber asphalt
and foam carpet
edition. Refer to page
15 to understand how
the orientation affects
suspension mount
height.
