Installation
Cable Routing From GNSS Receivers and Antennas to
2-16
P/N: 1049060-01
Cable Routing From GNSS Receivers and Antennas to
MC-X3
Carefully route the GNSS M12 cable and the antenna cables down through the rear compartment of
the machine (Figure 2-20) to the side compartment following the existing cable routing in the wiring
column.

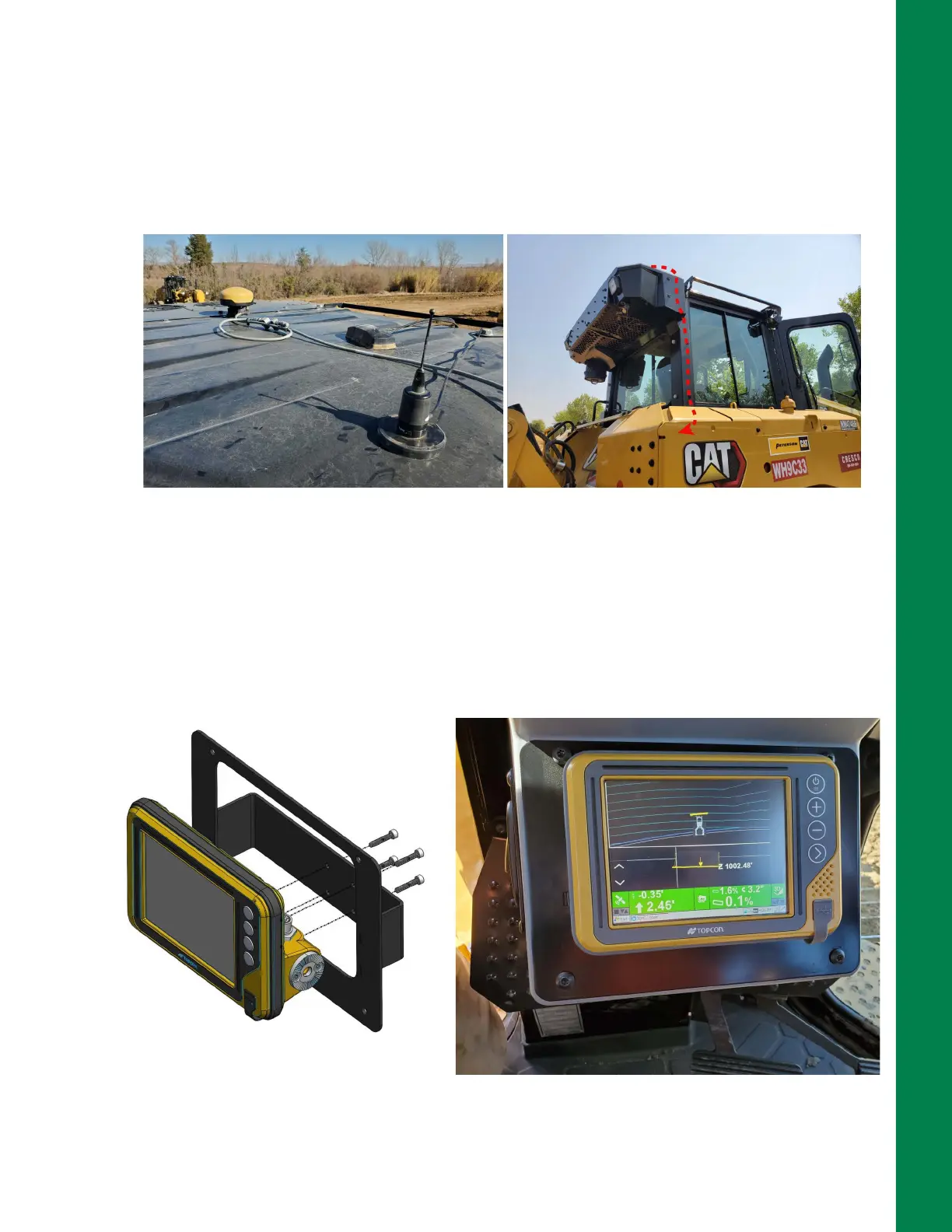

Figure 2-20: Receivers, Antennas, Cables, and Routing to MC-X3 Controller
Installing GX-55 Touchscreen Display
1. Remove the stock bracket from the dash. Slide the hinge sections apart.
2. Attach the GX-55 dash mount bracket to the cab display area (Figure 2-21).
3. Secure the GX-55 Touchscreen Display to the dash mount bracket (Figure 2-21).
Figure 2-21: GX-55 Touchscreen Display
