4. PRODUCT OUTLINE

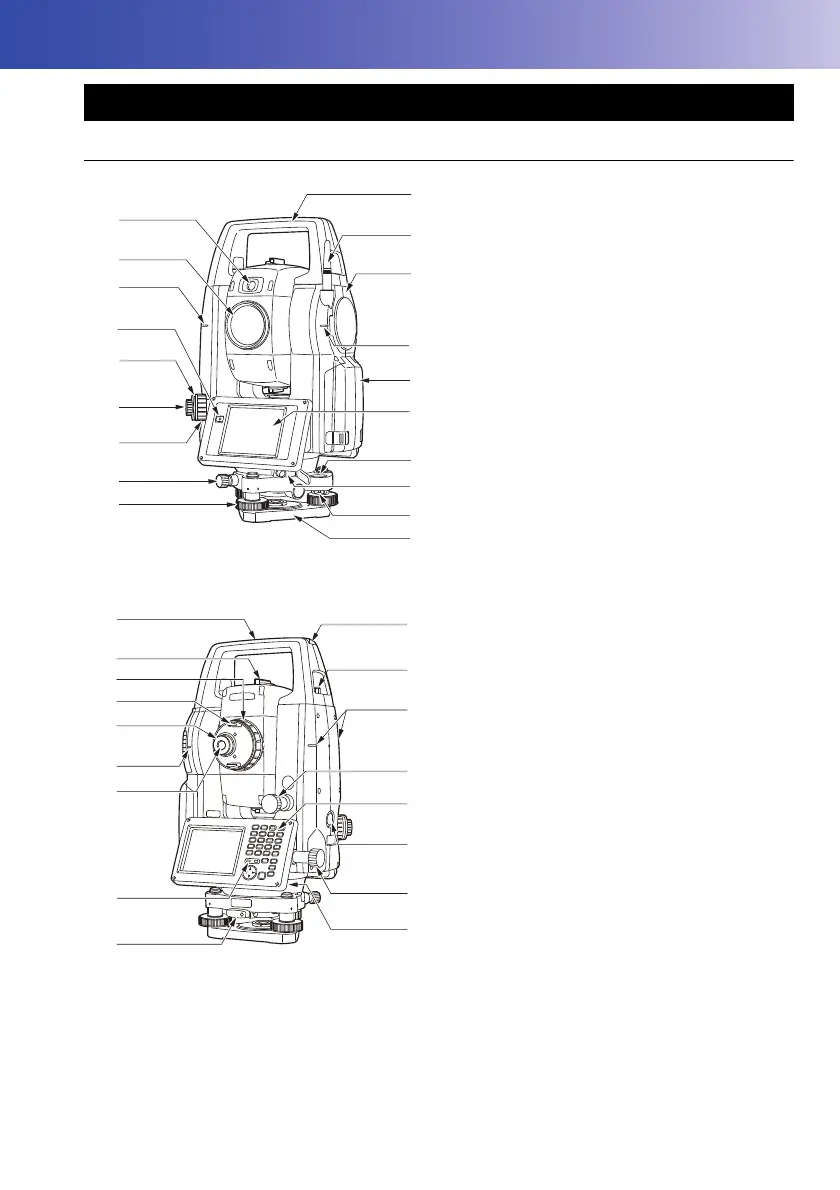

Parts and functions of the instrument
Handle
2 Bluetooth antenna
3 External interface hatch
(USB port/reset button)
4 & Instrument height mark
5 Battery cover
6 Display unit
7 Circular level
8 Serial / External power source connector
9 Circular level adjusting screws
10 Base plate
11 Levelling foot screw
12 Levelling base locking screw
13 Optical plummet focussing ring
14 Optical plummet eyepiece
15 Optical plummet reticle cover
16 Luminance sensor
17 Objective lens
(Includes "& Laser-pointer function")
18& Guide light
19 Tubular compass slot
20 Handle locking screw
21 & Vertical Jog
22 Keyboard
C"5.1 Basic Key Operation"
23 & Trigger key
24 & Horizontal Jog
25 Stylus (pen)
26 Tribrach clamp
27 Telescope eyepiece
28 Telescope eyepiece screw
29 Telescope knob
30 Telescope focussing ring
31&Sighting collimator
32Instrument center mark
4.1 Parts of the Instrument
4
4
17
18
1
2
3
7
6
5
9
8
10
11
12
14
13
16
15
19
20
23
21
22
24
25
28
27
26
29
30
31
32
4
4
16
