Topcon FC-200 - Connectors

11

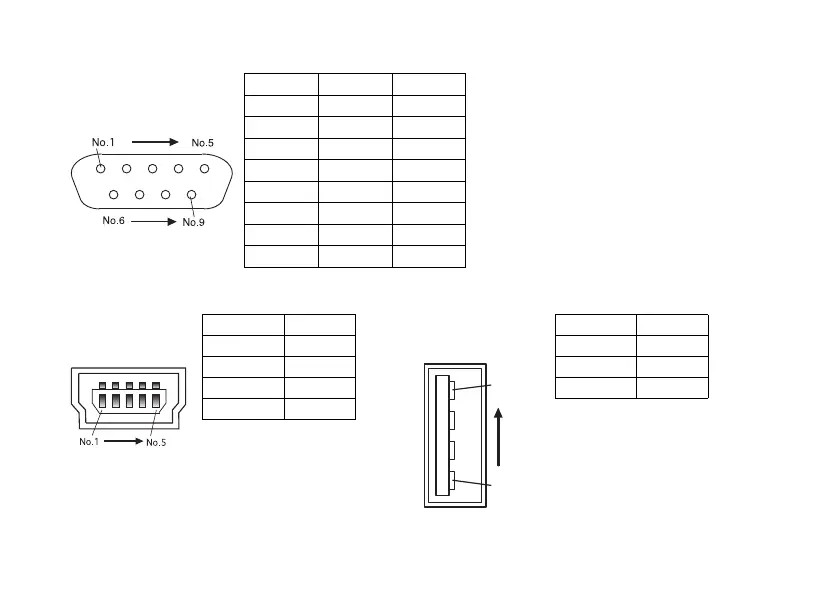

Connectors
No.4
No.1
No.1 DCD (IN)
No.2 RXD (IN)
No.3 TXD (OUT)
No.4 DTR (OUT)
No.5 GND
No.6 DSR (IN)
No.7 RTS (OUT)
No.8 CTS (IN)
No.9 RI (IN)
Serial connector
USB Connector
(Type Mini-B)
No.1 VDD
No.2 V-
No.3 V+
No.4 NC
No.5 GND
USB Connector
(Type A)
No.1 VCC
No.2 V-
No.3 V+
No.4 GND
