59
3 STANDARD MEASUREMENT MODE
Stake out operation can be performed for horizontal distance (HD), relative elevation (VD) or slope
distance (SD) .
[Example : Horizontal distance]

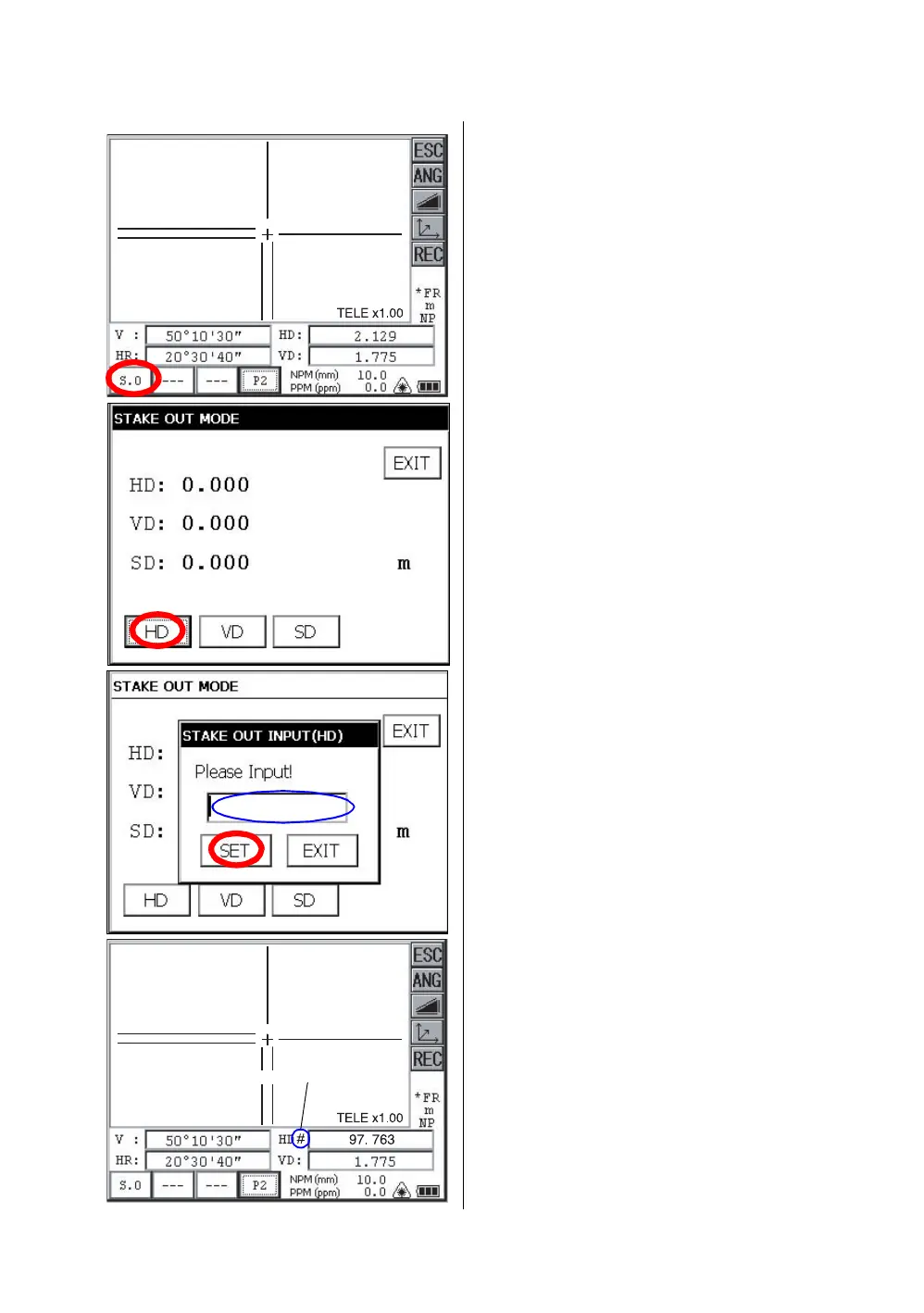

1 Press the [P1] key in the distance
measurement mode to get the function as in
page 2.
2 Press the [S.O] key .
The current setting value is displayed.
3 With the [HD] - [SD] keys, select a mode for
inputting the standard distance.
4 Enter the horizontal distance for stake out.
5 Press the [SET] key.
6 Press the [EXIT] key.
7 Collimate the Prism.
The difference between the measured distance
and the standard distance is displayed.
● To return to normal distance measurement mode, reset the standard distance to “ 0 ”.
Stake out indicator
To Next Page
