5 CHECK AND ADJUSTMENT

5.5.2 Showing Compensation Systematic Error of Instrument

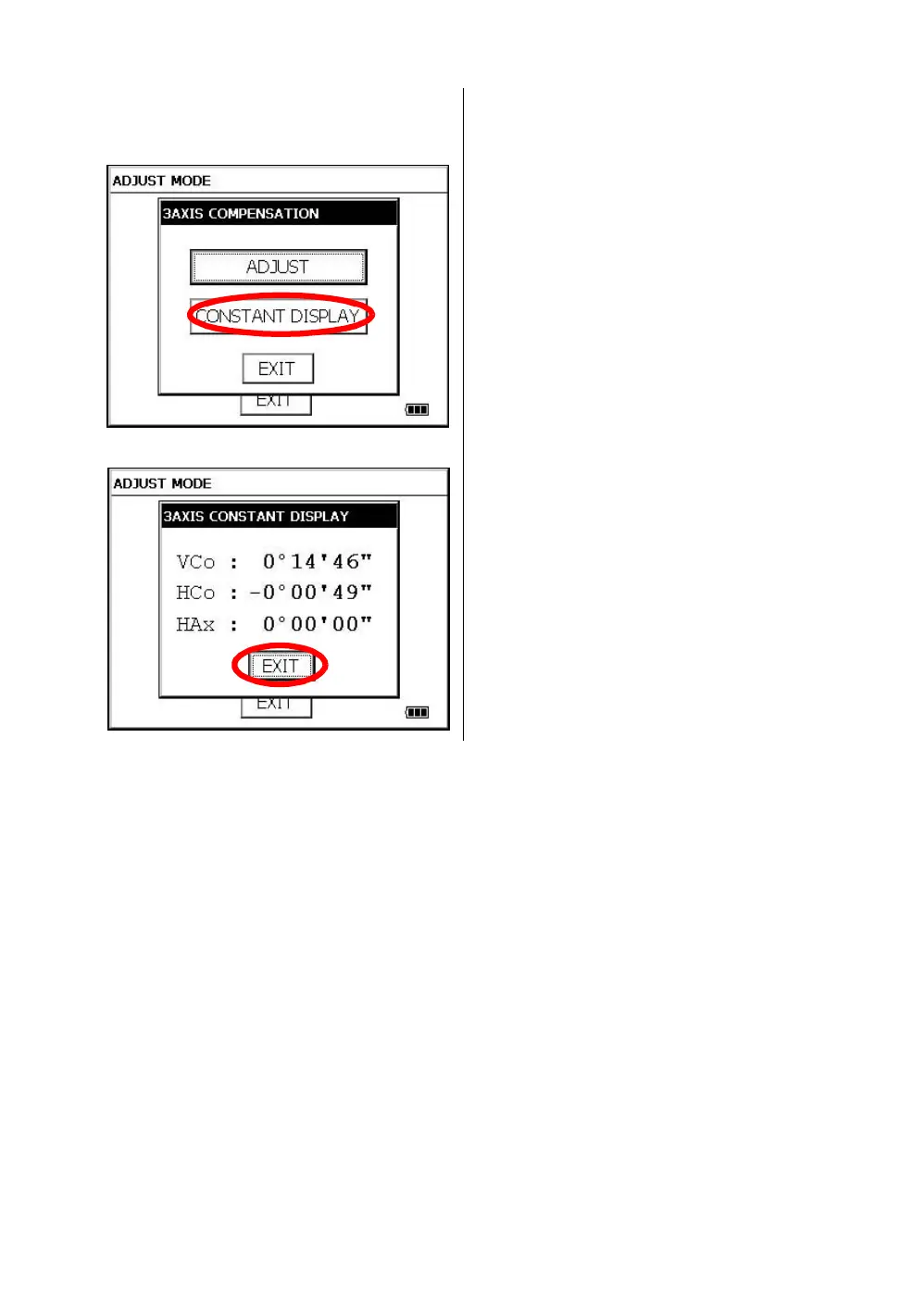

1 Press the [ADJUST] icon from the main menu.

2 Press the [3AXIS COMPENSATION] key.

3 Press the [CONSTANT DISPLAY] key.

Press the [EXIT] key.

The display returns to previous menu.
