Topcon HiPER GD User Manual

Specifications
Topcon HiPer GD and HiPer GGD Operator’s Manual
B-10
Connector Specifications
The following sections list HiPer GD and HiPer GGD connector
details.
Power Connector
The power connector (Figure B-1) is a sealed receptacle, 5 pin,
ODU part number G80F1C-T05QF00-0000.

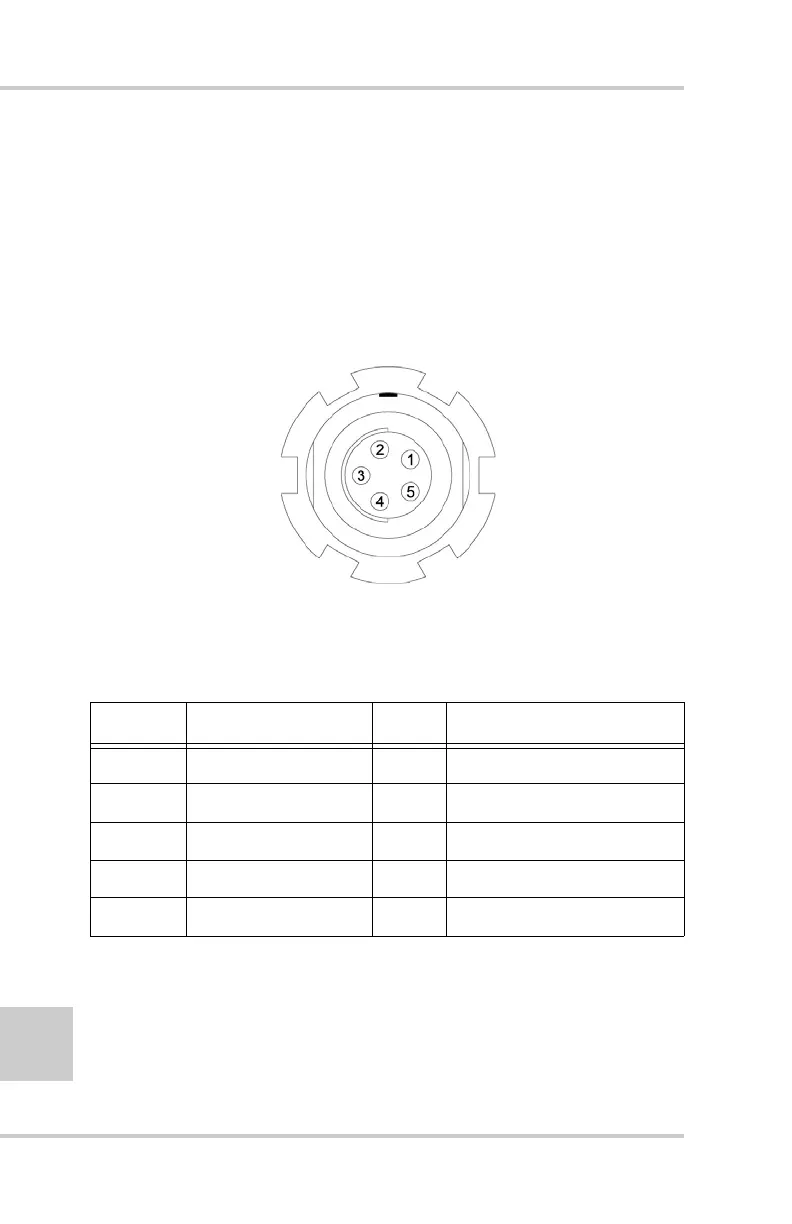

Figure B-1. Power Connector
Table B-2 gives power connector specifications.
Table B-2. Power Connector Specifications
Number Signal Name Dir Details
1 Power_INP P 6 to 28 volts DC input
2 Power_INP P 6 to 28 volts DC input
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5 Not used

Topcon HiPER GD Specifications

General

Brand	Topcon
Model	HiPER GD
Category	GPS
Language	English
