21
3. Use the batteries as the power source and only use the solar panel to
charge the batteries
If you only use the solar panel to charge the batteries, please note the power of the solar panel should be at
least 20W. The gate opener can works for 10 cycles per day if there is no other accessory except
photocell & electric lock & push button& alarm lamp connected to the control board. The capacity of the

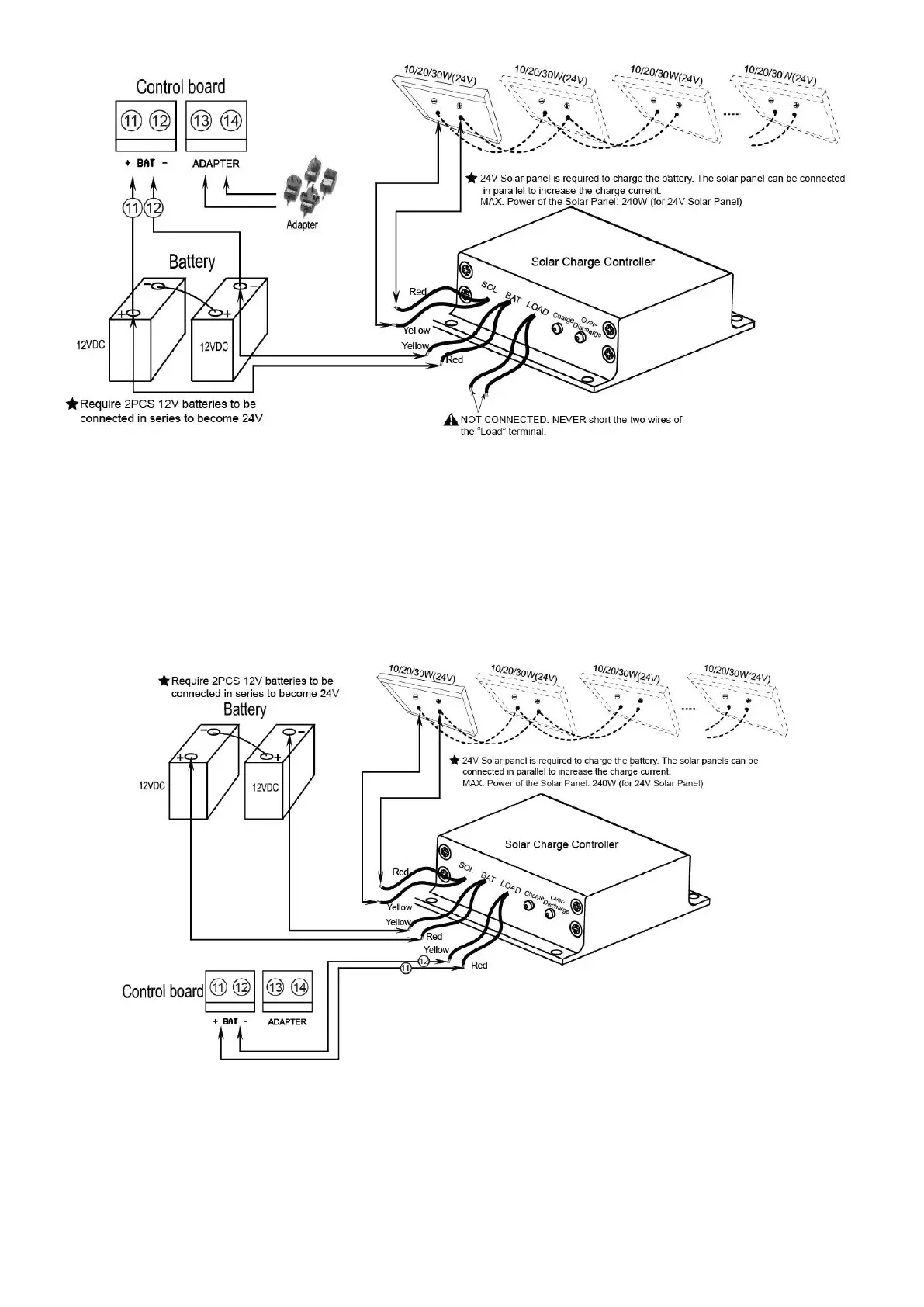

batteries and the power of the solar panel should be enlarged if you want to use more. You can connect the
solar panel and the solar charge controller refers to the following illustration.
4. Use the DPS180-U AC-DC power supply as the power source if AC
electricity is accessible and stable
The gate opener can be powered by an AC to DC 24V Power Supply (NOT INCLUDED). TOPENS DPS180-U
Waterproof AC 110V-240V to DC 24V Power Supply is available at TOPENS Store. Instead of using batteries,
this alternative save costs and is strongly recommended. The positive output of the 24VDC power supply
