Topens A3 - Control Board Wiring Details; Actuator, Lock, Light Wiring; Photocell & Push Button Wiring

23

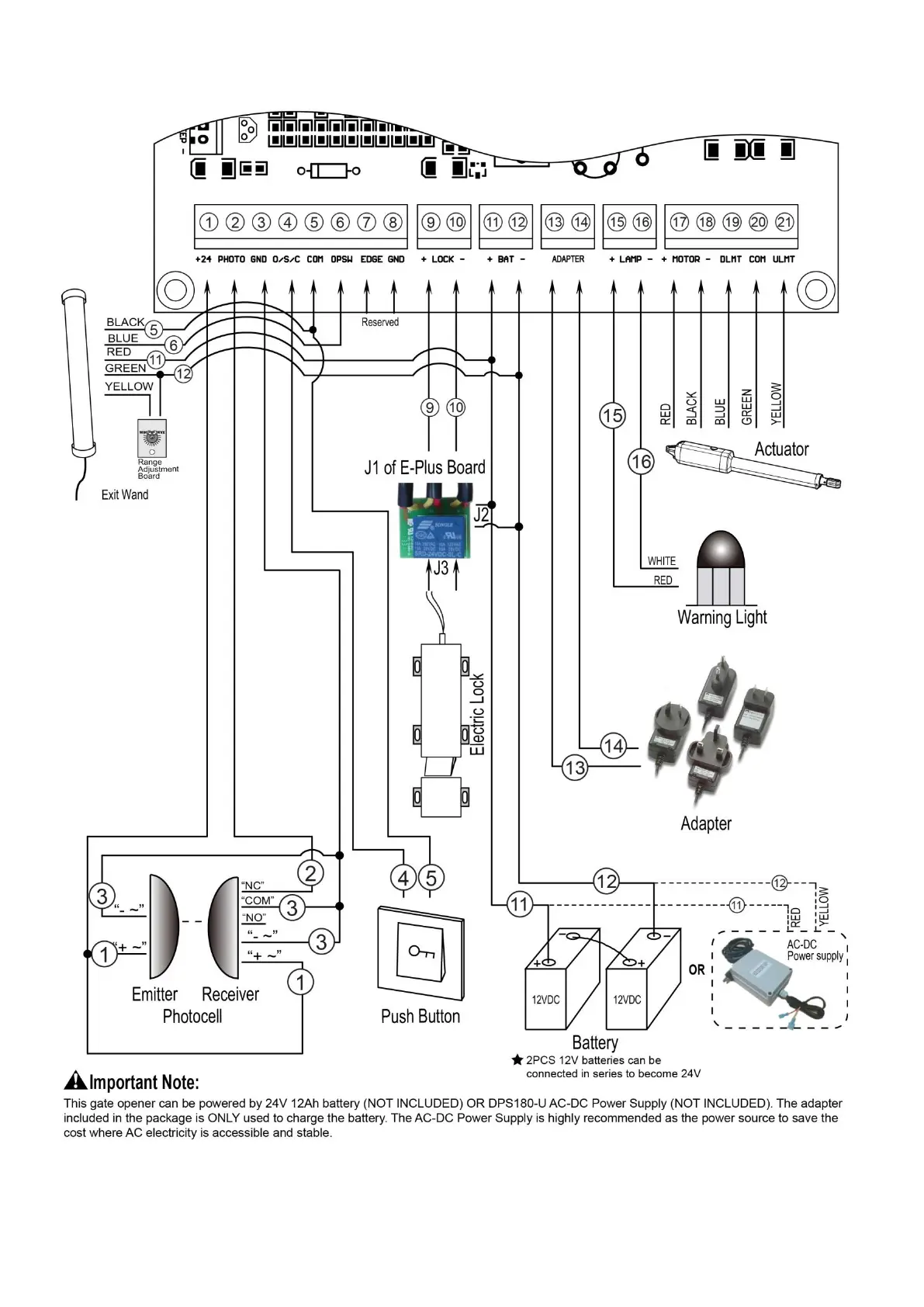

Connection of the Control Board
1. Actuator
Insert the stripped cable wires into the appropriate terminals on the opener terminals block. The red wire should
be inserted into the ―+MOTOR‖ terminal(#17), the black wire into ―MOTOR-‖ terminal (#18), the blue wire into
―DLMT‖ terminal(#19), the green wire into ―COM‖ terminal(#20), and the yellow wire into ―ULMT‖ terminal
