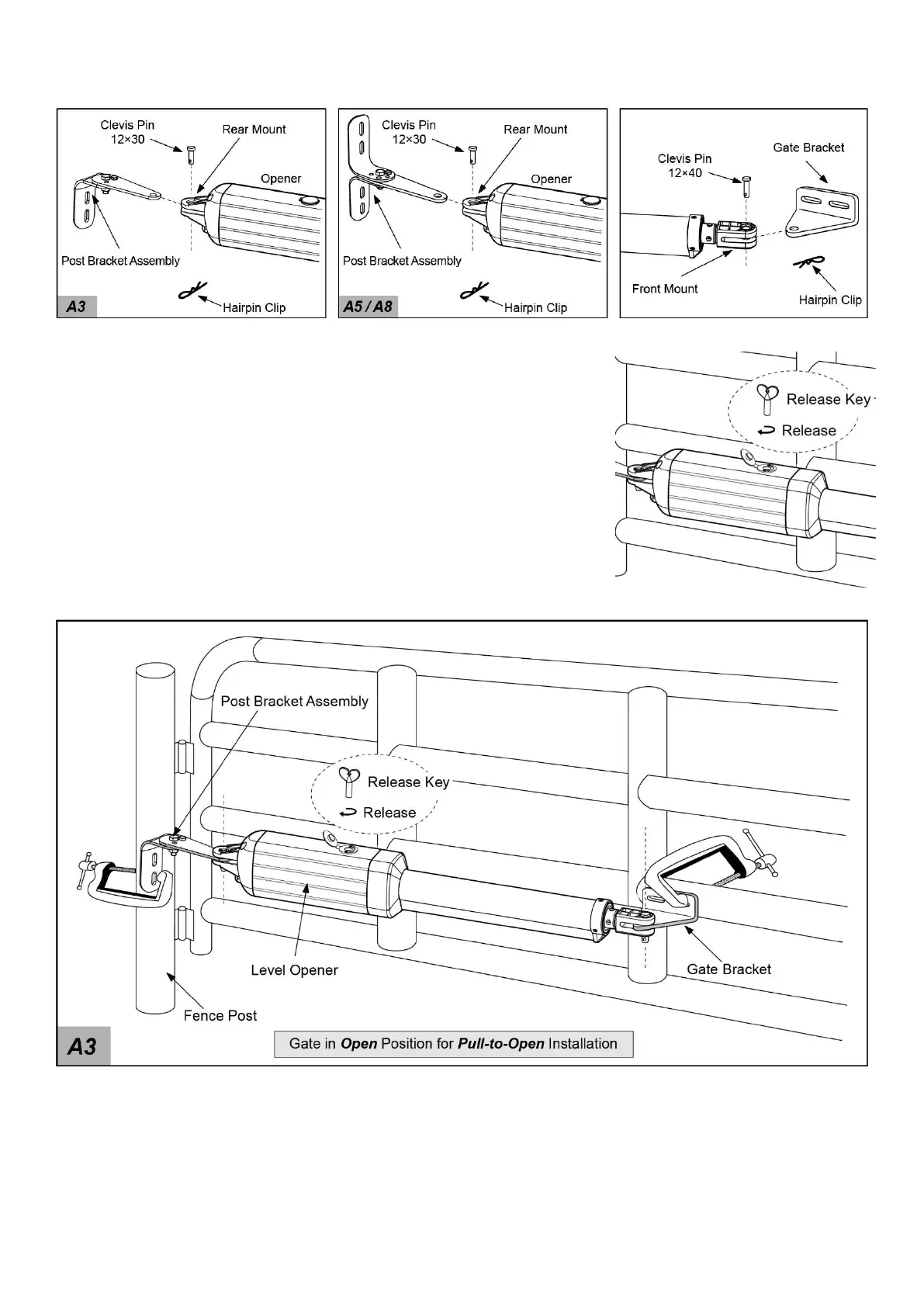

2. Attach the gate bracket and post bracket assy. to the opener by inserting a clevis pin. Secure the clevis pins
using the hairpin clips.
3. Open the release hole plug on the top of the gate opener, insert the
release key, and turn the key 90° clockwise. This releases the motor and
allows the push-pull rod to be manually extended and retracted. To restore
normal operation, turn the key 90° counterclockwise.
4. With the opener fully retracted and with the gate in the fully open
position (for Pull-to-Open installation), place the opener with the Post
Bracket Assy. and Gate Bracket on the gate post and the gate. While
holding the gate opener in the level position, temporarily secure it with two
C-clamps.
