Install the Opener on the Gate – for Pull to Open

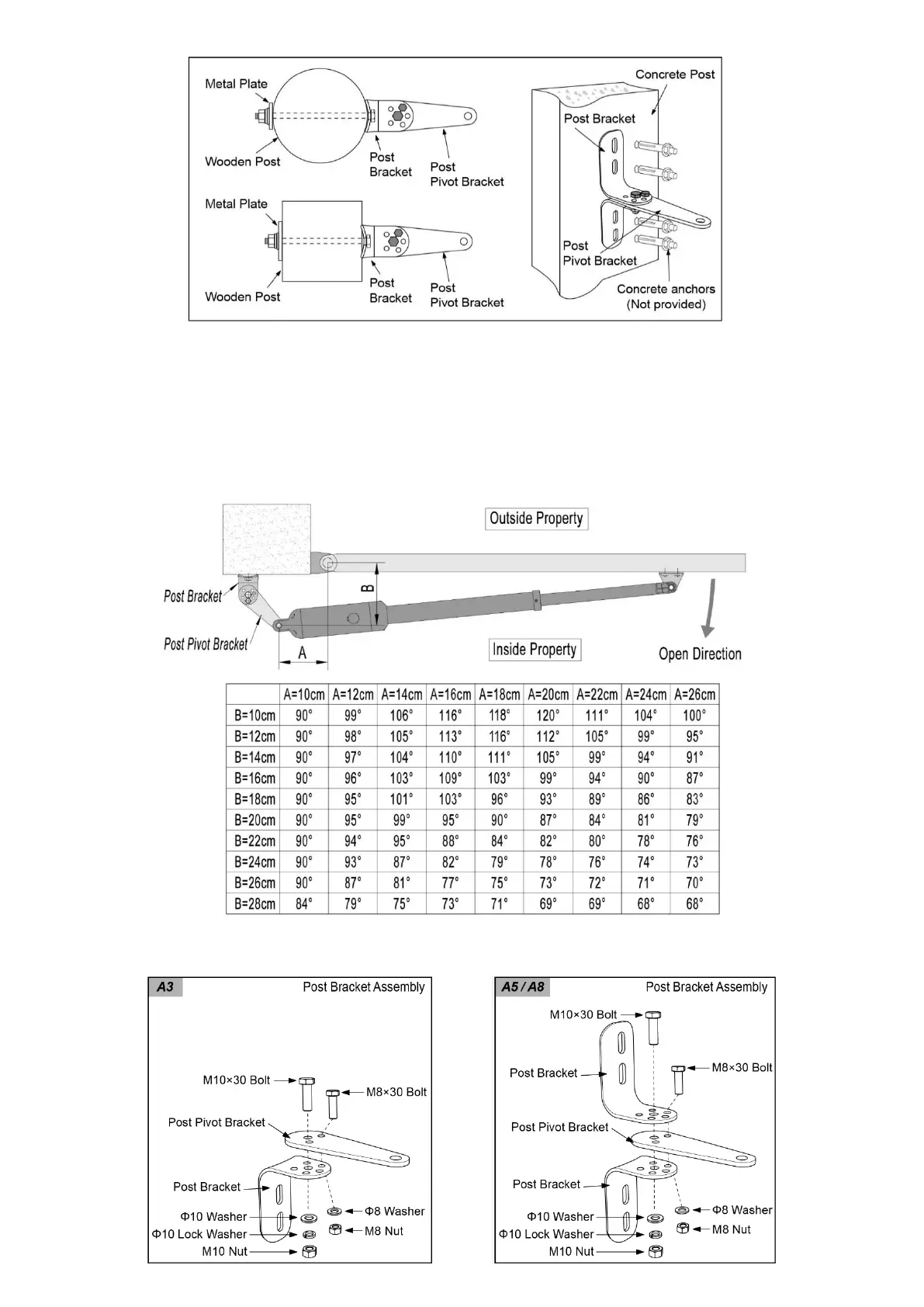

The position of Post Bracket is very important. The following illustrations and tables are required to determine
the proper mounting position for the Post Bracket. The tables show the maximum opening angle of the gate for
a given A and B. For example, if A is 16cm and B is 14cm, the maximum opening angle of the gate is 110°
Pull-to-Open Installation — Gate in Closed position (Moving-Rod is extended)
1. Insert the bolts through the holes of post bracket and post pivot bracket as shown. Place washers and nuts
on the bottom of the bolts and hand tighten.
