23

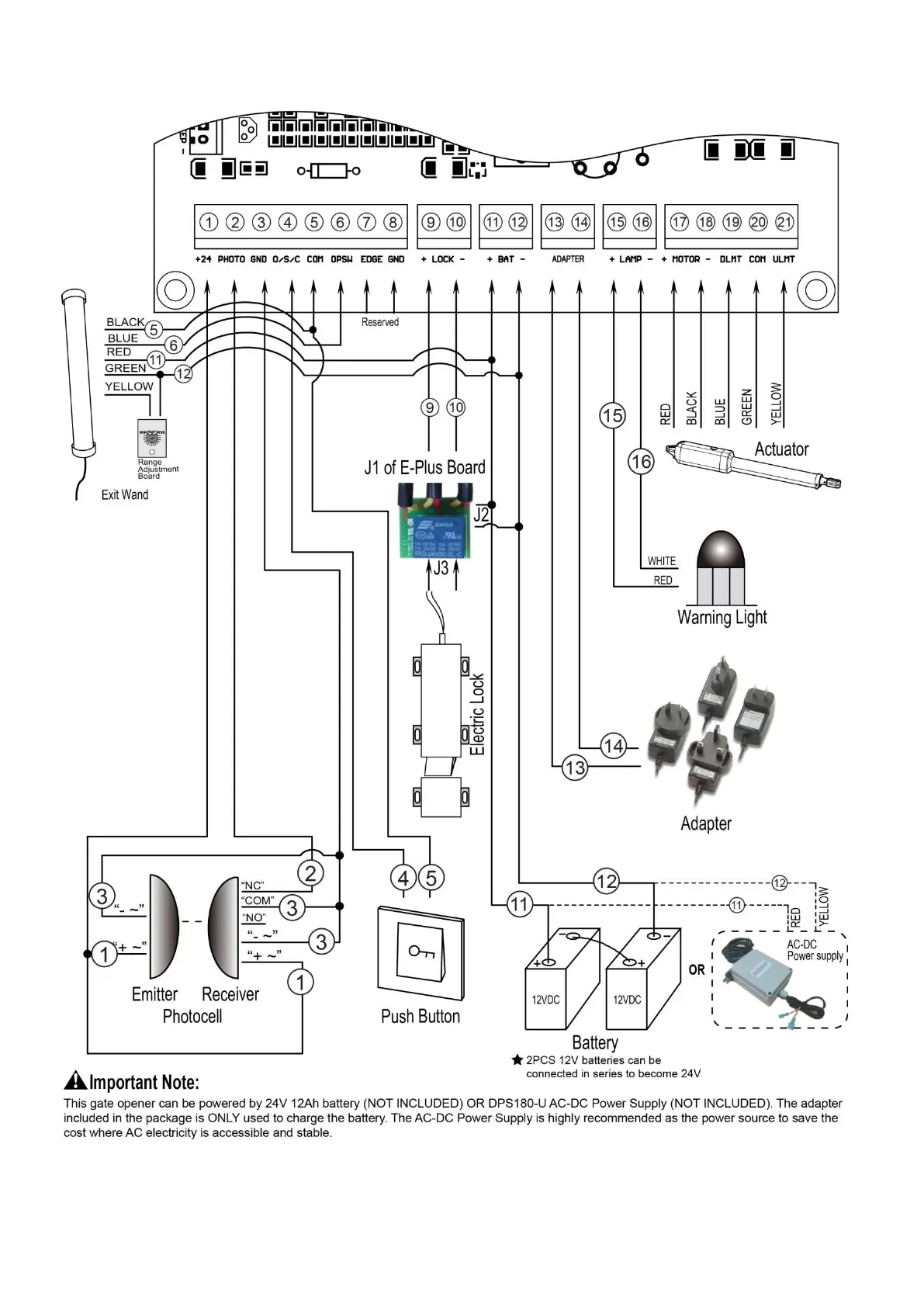

Connection of the Control Board
1. Actuator
Insert the stripped cable wires into the appropriate terminals on the opener terminals block. The red wire should
be inserted into the ―+MOTOR‖ terminal(#17), the black wire into ―MOTOR-‖ terminal (#18), the blue wire into
―DLMT‖ terminal(#19), the green wire into ―COM‖ terminal(#20), and the yellow wire into ―ULMT‖ terminal
