should be wired to the BAT+ (#11) terminal, the negative output should be wired to ―BAT-‖ (#12) terminal.
There is no need to use the adapter in this situation.
5. Use the UPS01 uninterrupted power supply as the power source

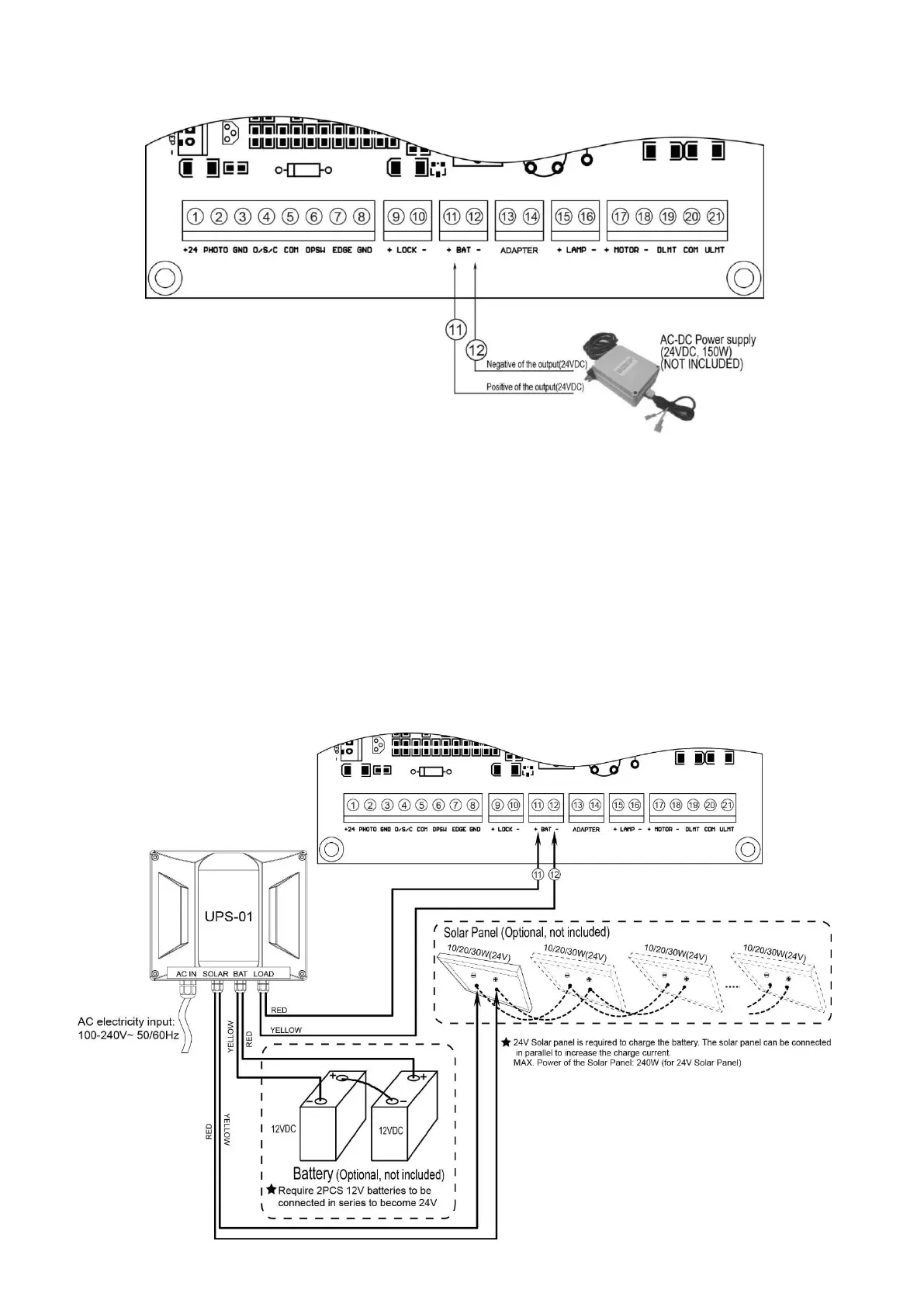

Firstly please connect the output of the power supply to power input of the gate opener control board. You can
plug the load output wire of the power supply to the power input cable of the control box. A 2-core power input
cable has been connected to the +BAT- (11# and 12#) terminal of the gate opener control board in factory.
Please note that the polarity must be connected correctly or it may damage the control board (Red wire is
positive and yellow wire is negative). Secondly please connect the battery to the power supply if you choose
it as main power source or the back-up power. Thirdly you can connect the solar panel to the power supply if
you choose it to charge the battery. Finally you can plug the AC cable to the AC main socket as needed.
