User manual of tracker MT01
-
15
-

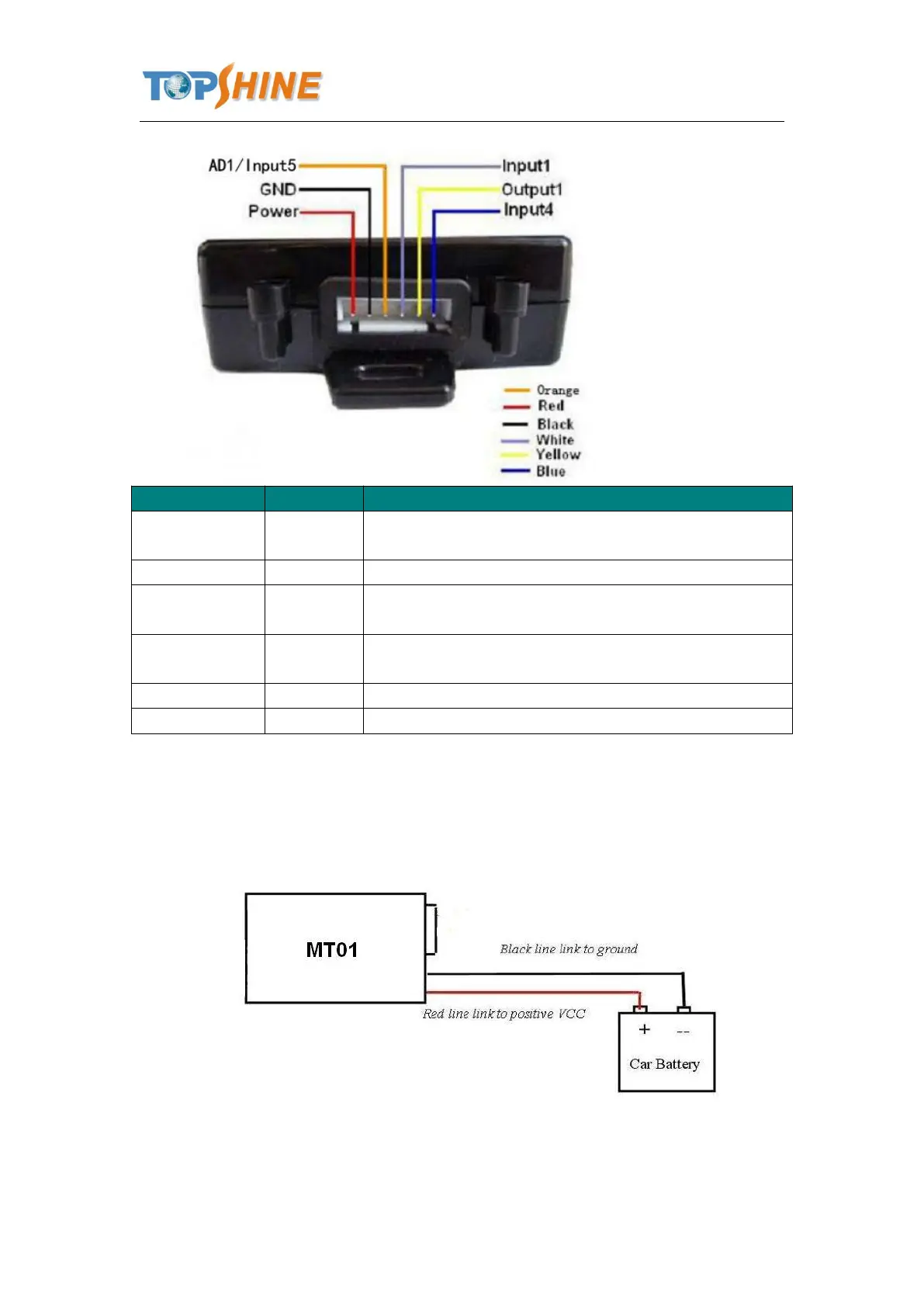

PIN Number
Color
Description
Input 1/SOS
White wire
Digital Input 1 (negative triggering), E.g. connect SOS panic
button
Input 4
Blue wire
Digital Input 4 (positive triggering), e.g. detecting the ACC
Output 1
Yellow wire
Output1. It can be used to connect with relay for engine
immobilization.
AD1/Input5
Orange wire
Connect to fuel sensor by default and it can be customised to
detect positive signal
GND
Black
Ground, Negative
POWER
Red
DC in (power source). Input voltage: 9V-36V, 12V suggested.
7.2 Power/GND
Connect GND (Black) and power (Red) wires to the battery of vehicle.
