Checks and repairs on electrical components
If no voltage is present, the circuit board is defective.
Replace the defective circuit board, see page 26.
If voltage is present, the circuit board is fine.
In this case, check the wiring of the remote control, as follows:
Connect the multimeter with the wire of the (ON) connection and the wire of
the (COM) connection.

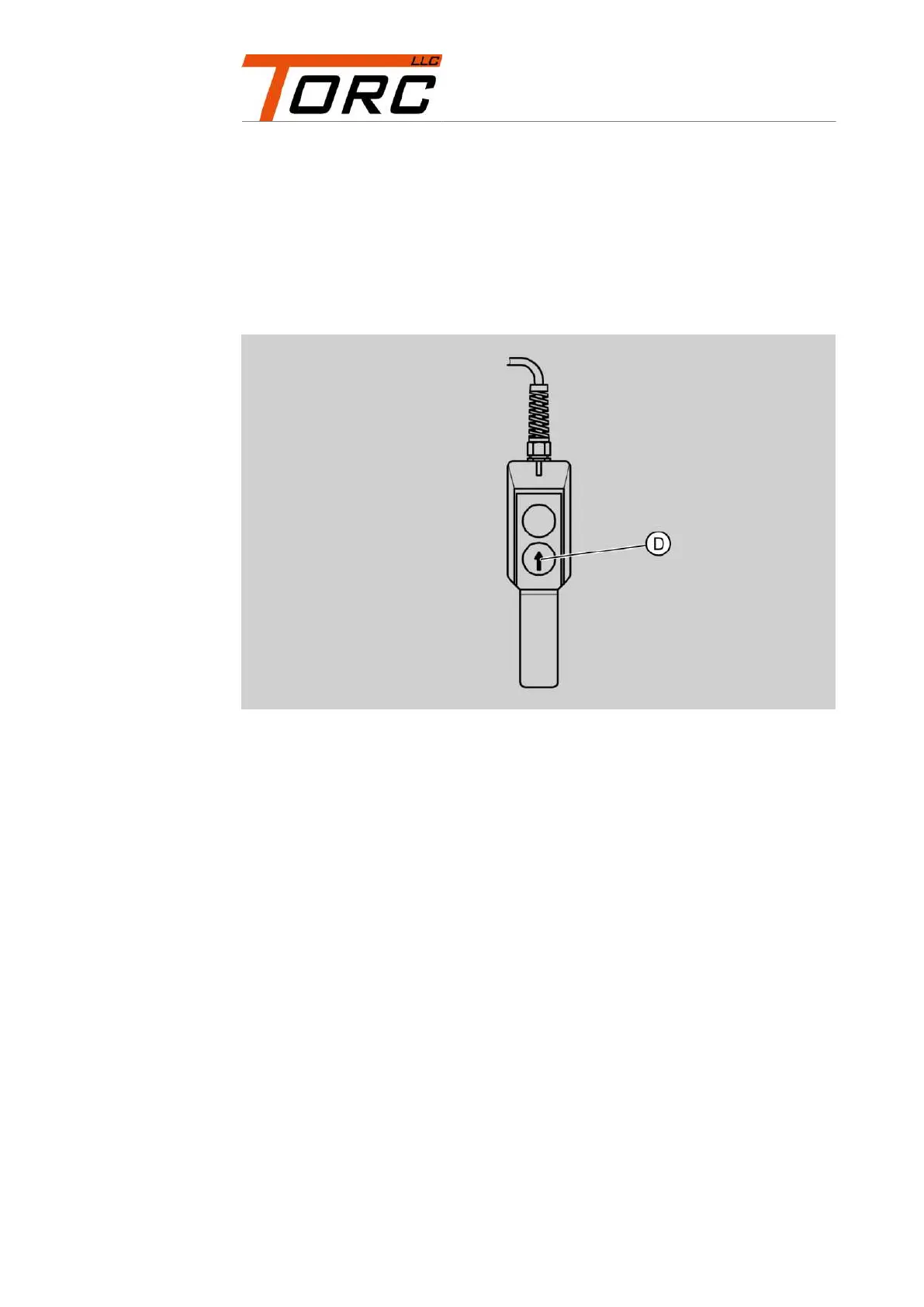

Press the button (D) on the remote control.
Measure the electrical resistance.
The resistance has to be significantly less than 10 Ω.
If the resistance is higher, the remote control is defective.
