Checks and repairs on electrical components
Replacing the solenoid valve
To replace the solenoid valve, proceed as follows:
Move the unit into the repair position for the upper structures, see from
page 51.

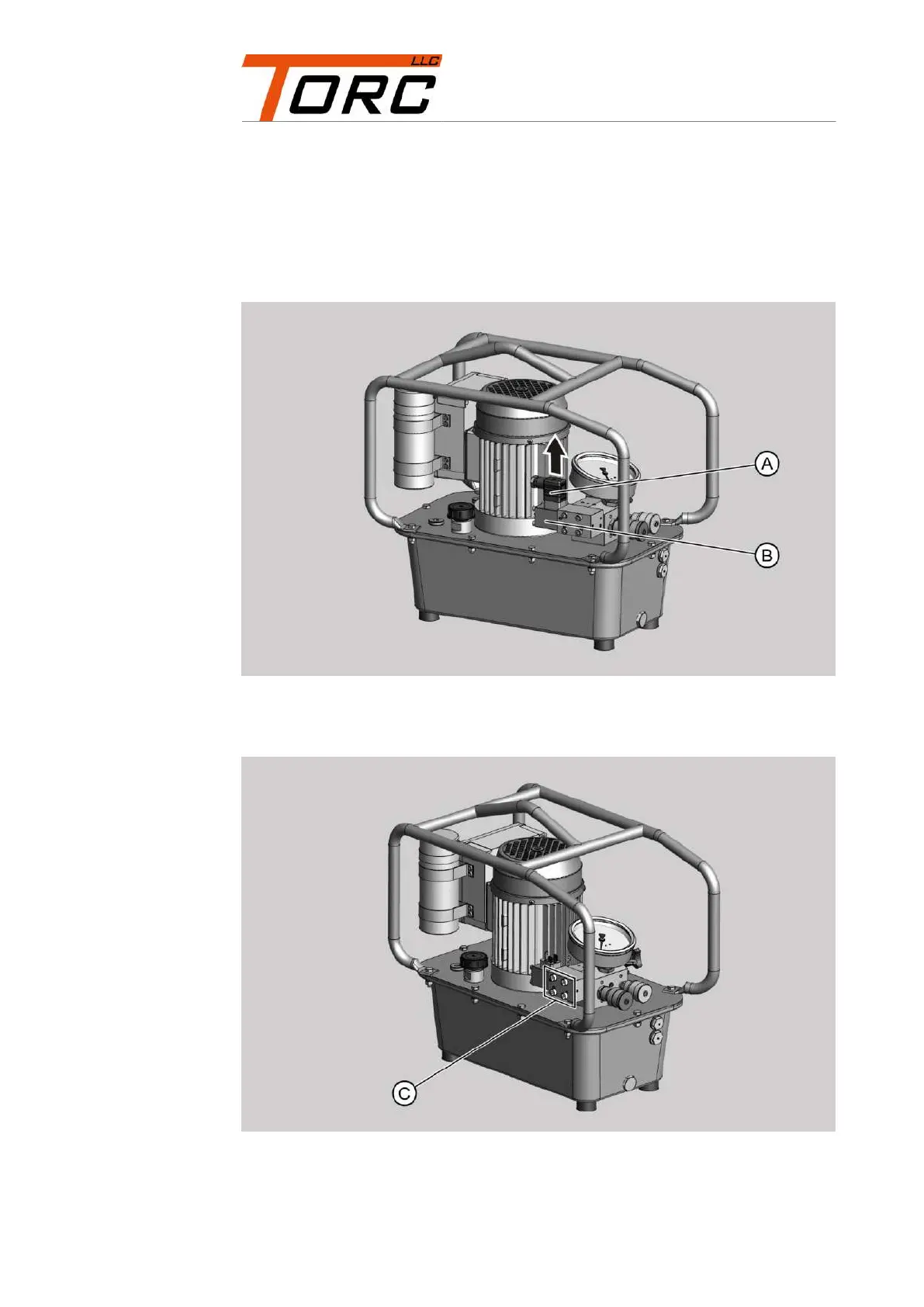

Release the screw which holds down the solenoid valve connector (A).
Remove the solenoid valve connector from the solenoid valve (B).
Release the screw connections (C) of the solenoid valve with a 4 mm
hexagon socket wrench.
