Checks and repairs on electrical components

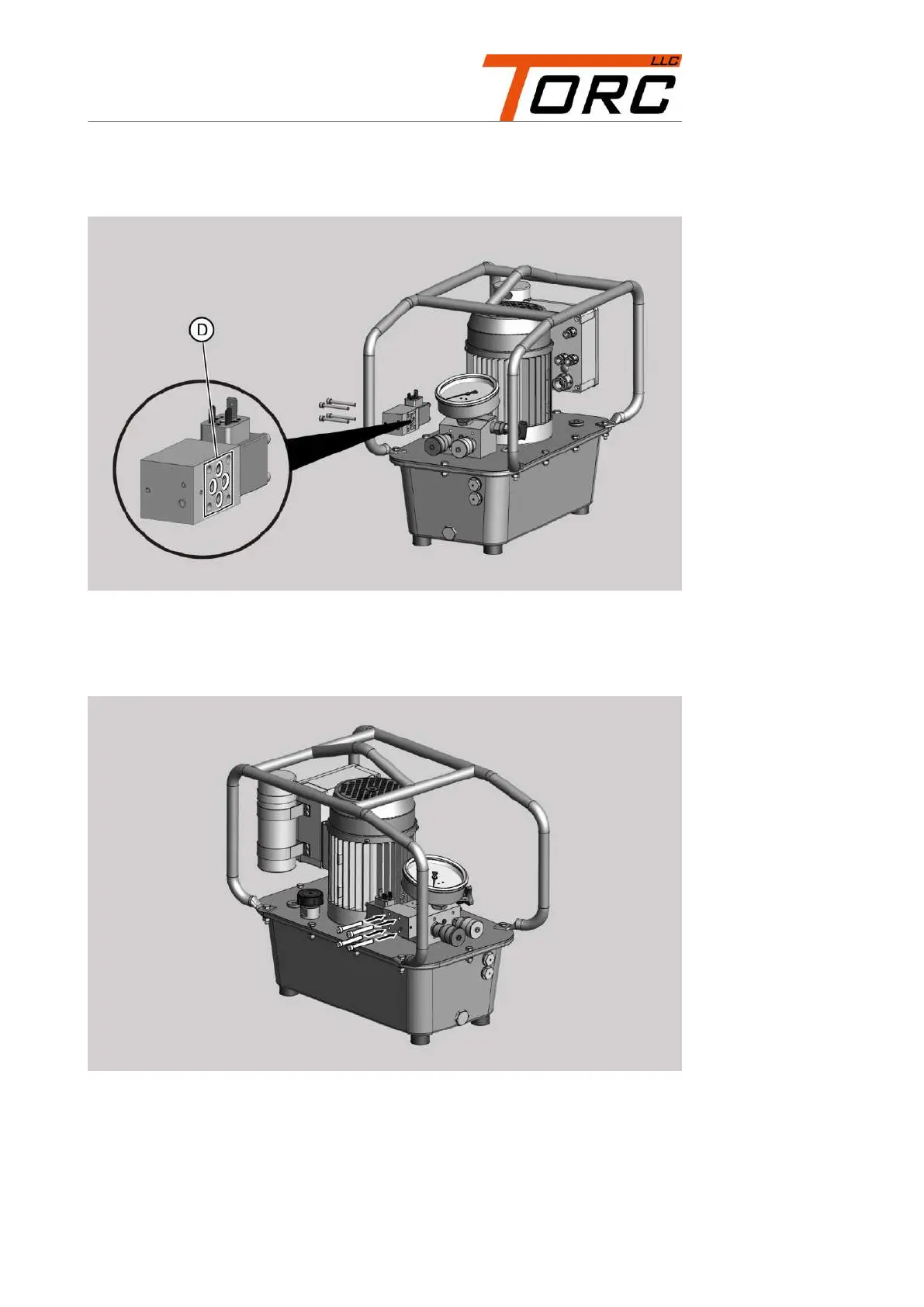

Remove the solenoid valve from the valve block.
For the new solenoid valve, ensure that the 4 O-rings (D) are in the
corresponding boreholes and that they are undamaged.
Connect the new solenoid valve and the valve block with the M5 hexagon
socket screws using a 4 mm hexagon socket wrench.
Tighten the hexagon socket screws with a torque of 8 N m.
Fix the solenoid valve connector to the solenoid valve with the
corresponding screw.
