Checks and repairs on hydraulic components

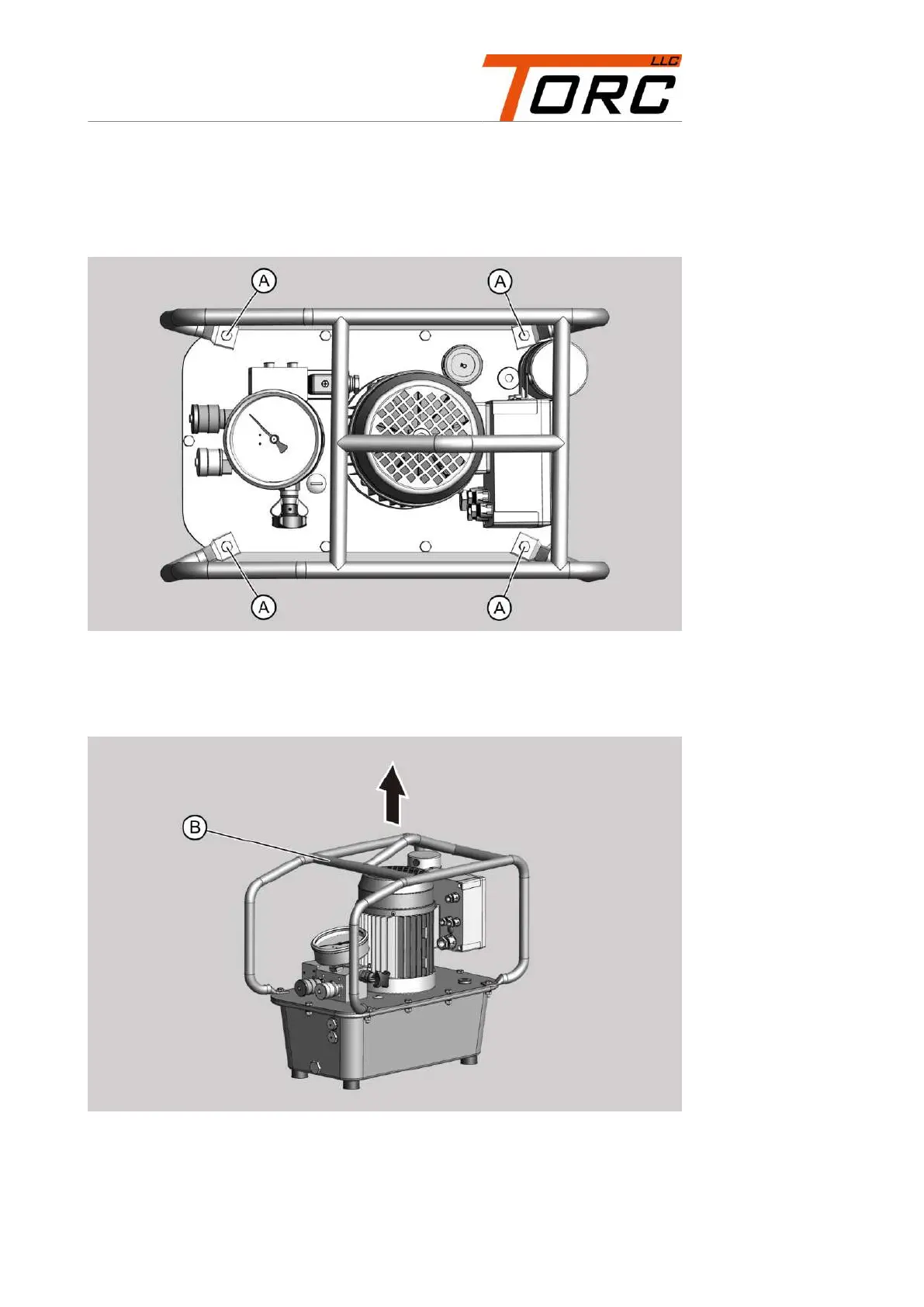

Removing the carrying handle
To remove the carrying handle, proceed as follows:
Place the unit on a solid surface.
Release the screw connections (A) with two combination wrenches WAF 10.
Remove the screws, the nuts and the tooth lock washer and keep them in
safe place.
Remove the carrying handle (B) and set it down safely.
