Checks and repairs on electrical components
To check the capacitor, proceed as follows:
Let the motor cool down to a temperature of about 25 °C/77 °F.
Check the temperature with a contactless thermometer.
Move the unit into the repair position for the electric control, see from
page 24.
Connect the mains plug to a grounded mains socket with a voltage of 230 V
and a frequency of 50/60 Hz.

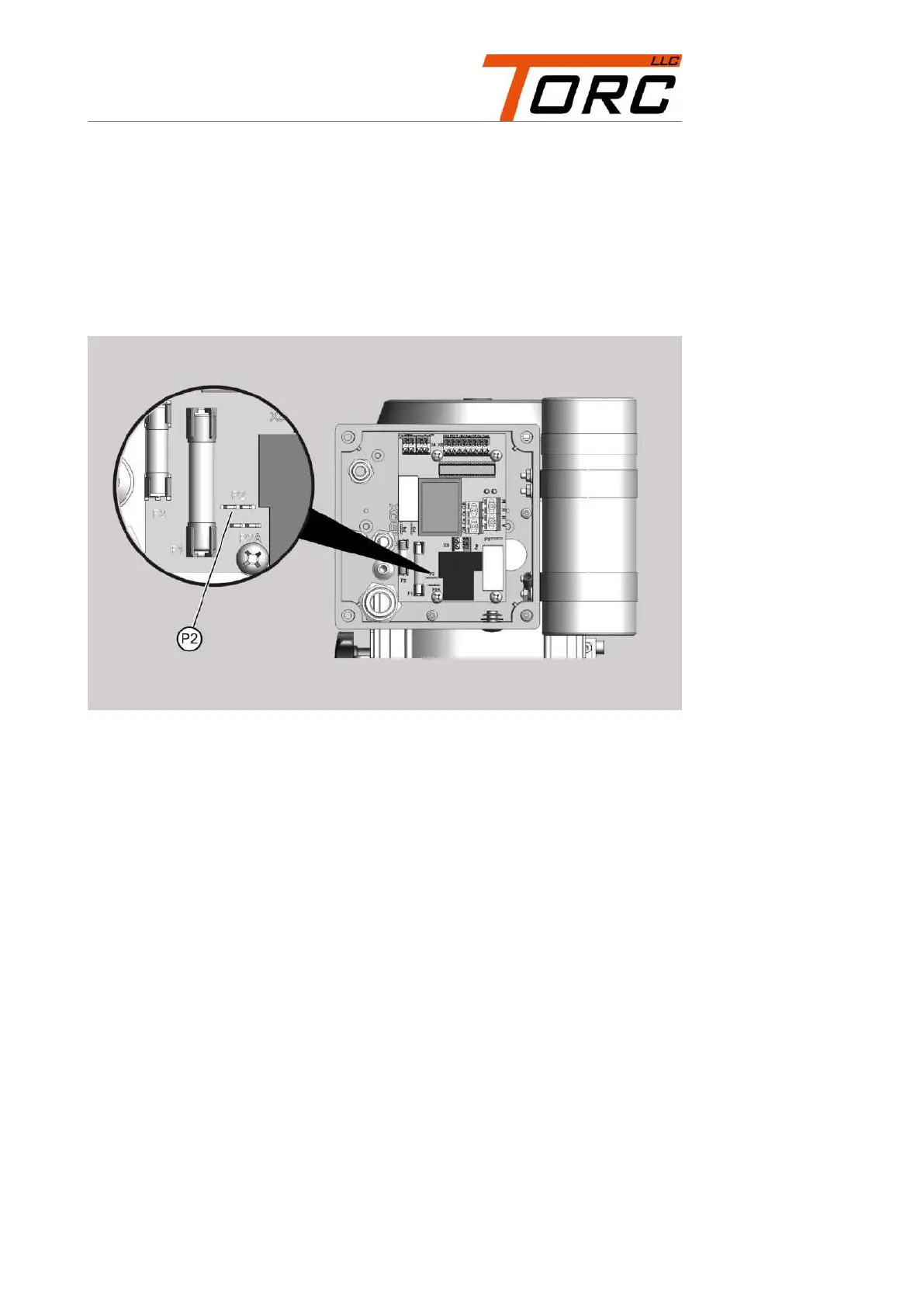

Connect a current clamp to the brown cable (P2).
