Checks and repairs on hydraulic components
To replace the low-pressure cut off valve, proceed as follows:
Move the unit into the repair position for the lower structures, see from
page 52.

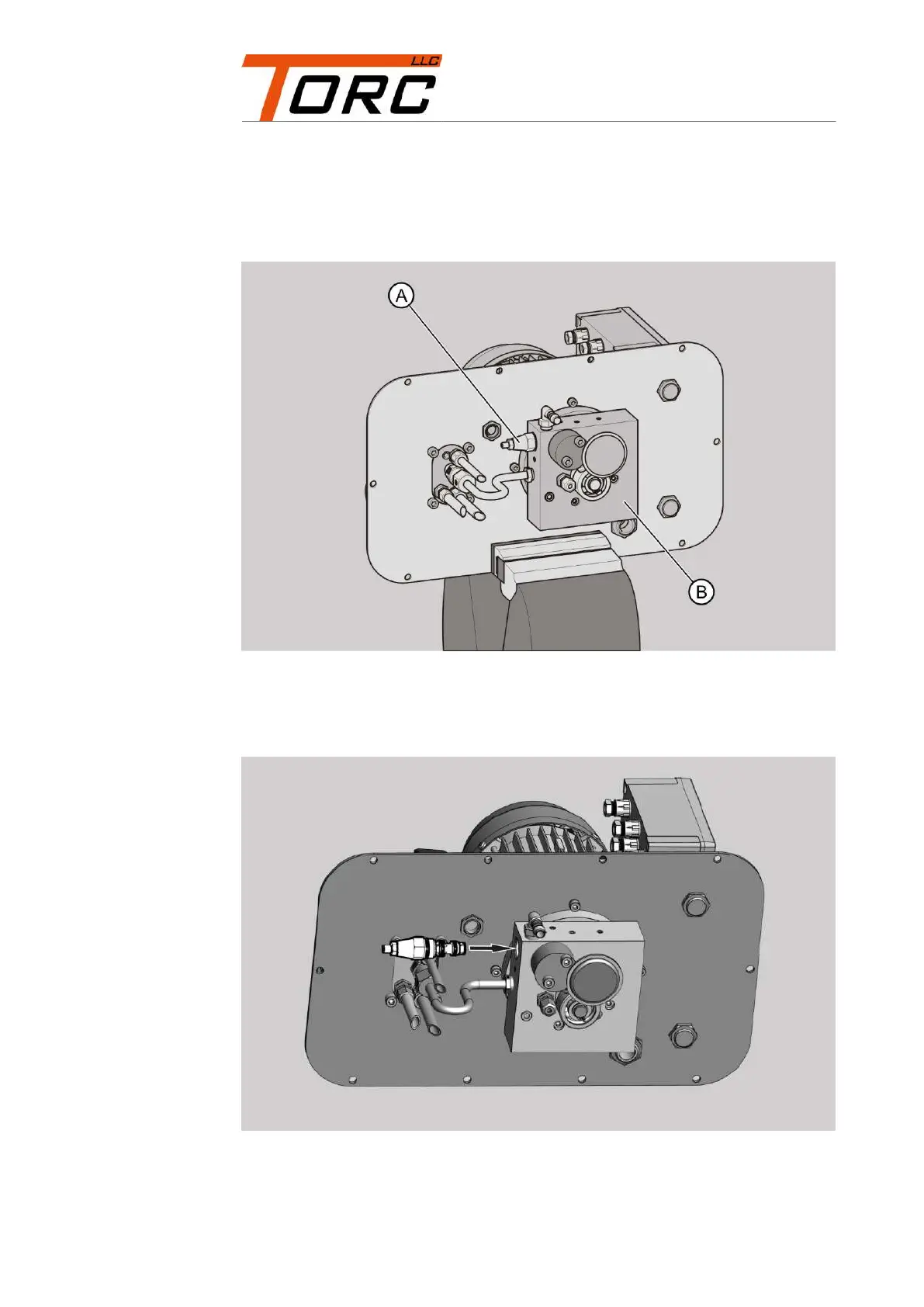

Unscrew the low-pressure cut off valve (A) from the pump flange (B) with a
combination wrench WAF 17.
Screw a functioning low-pressure cut off valve into the pump flange with a
combination wrench WAF 17.
Tighten the valve with a torque of 25 N m.
