Use the screws M6 × 20 for fixing the unit to the oil tank.

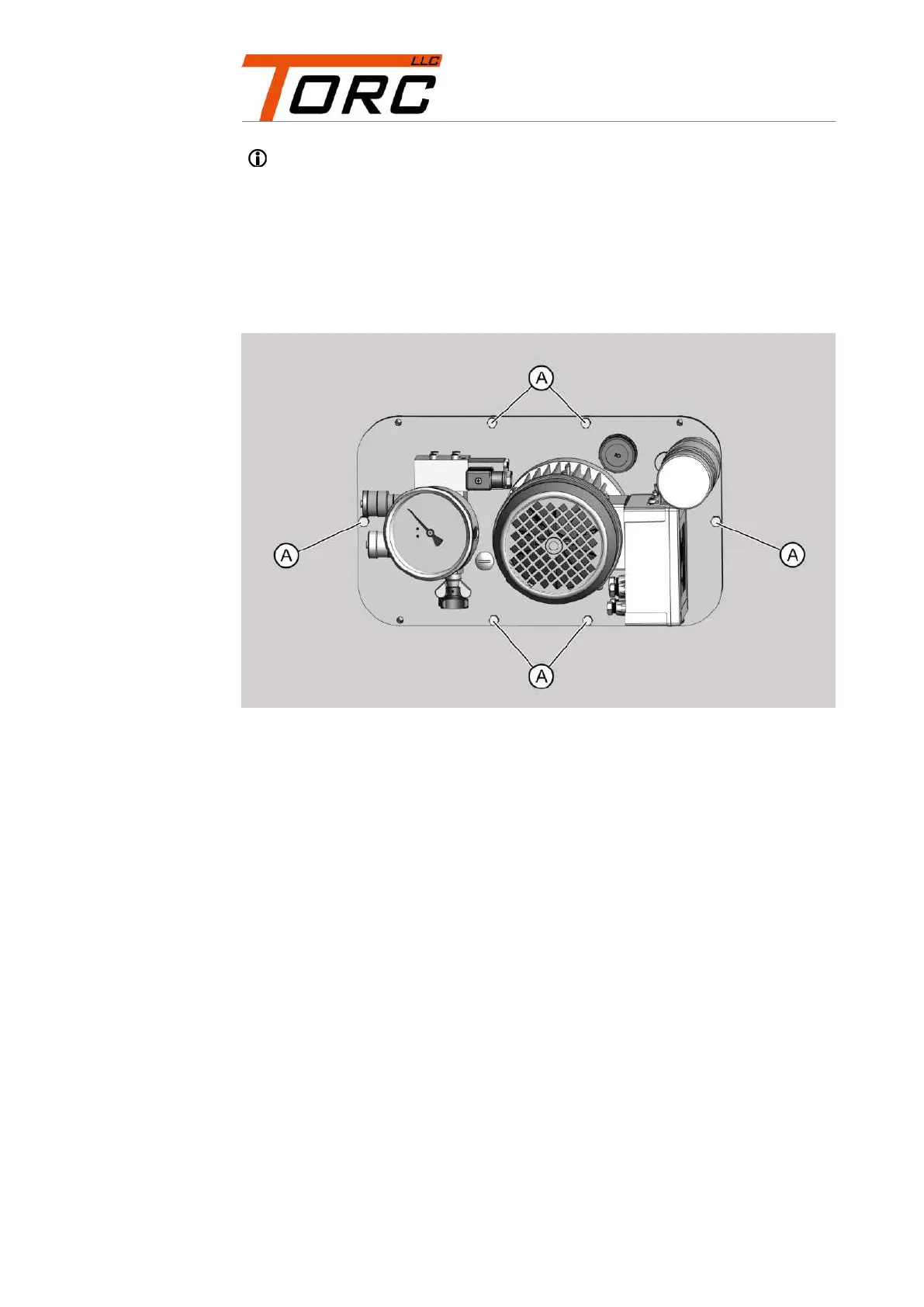

Place the screws (A) into the boreholes from the top.
Secure the power cord to the oil tank with a hose clamp.
Secure the remote control cable to the oil tank with a hose clamp.
Slide one tooth lock washer over each thread from underneath.
Screw the nuts onto the screws.
Tighten the screws and nuts with a torque of 12 N m.
