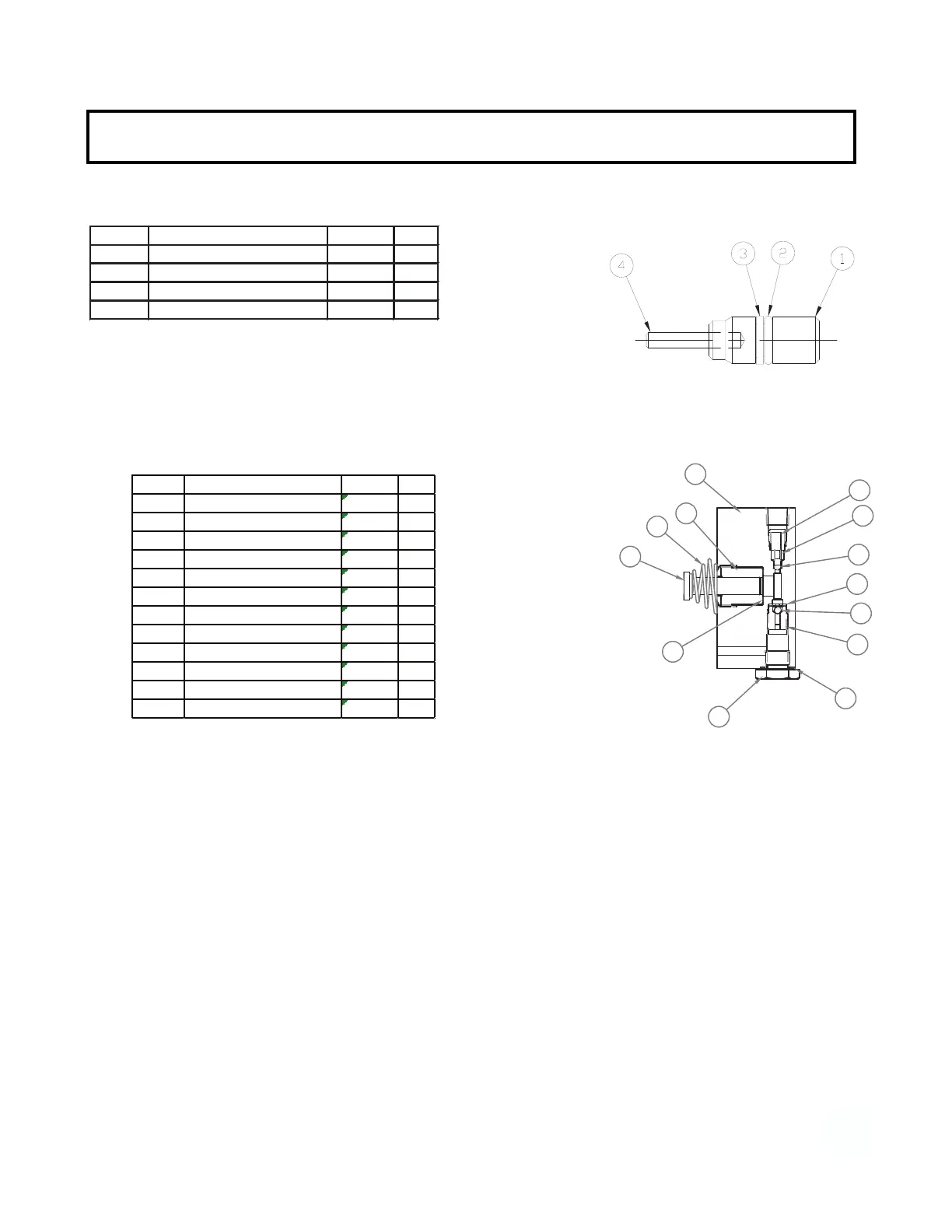

TorcUP AP1000 - PUMP SUB ASSEMBLY; PART# 43766 SS (UNLOADING PISTON ASM.); PART# 46336 SS (PISTON BLK ASM)

ITEM # DESCRITPION PART # QTY.
01 UNLOAD PISTON 43765 1.00
02 O RING 1/4X3/8 1.00
03 BACK-UP WASHER TEF 43768 1.00
04 DOWEL PIN 1/8X3/4 LG 43686 1.00
5602009
1
11
12
7
10
8
9
6
5
2
4
3
2
TORQUE TO
25 IN*LBS.
TORQUE TO
150 IN*LBS.
TORQUE TO
400 IN*LBS.
TORQUE TO
200 IN*LBS.
PART# 46336SS (PISTON BLK ASM. )
ITEM # DESCRIPTION PART # QTY
1 PISTON BLOCK 45539 1
2 BALL 1/8" 90906 2
3 SPRING 66042 1
4 BALL STOP 68810 1
5 BALL RETAINER 66043 1
6 INTAKE SEAT 66046 1
7 GASKET 25/64X19/32 85726 1
8 PLUG PISTON BLOCK 68825 1
9 GASKET 29/64 X 5/8 86269 1
10 ADAPTOR .255 DIA. 68909 1
11 SPRING, PISTON 68340 1
12 PISTON .255 DIA. 68222 1
PART# 43766SS (UNLOADING PISTON ASM.)PUMP ASM.
PART# 46336SS (PISTON BLK ASM)
PUMP SUB ASSEMBLY
18
