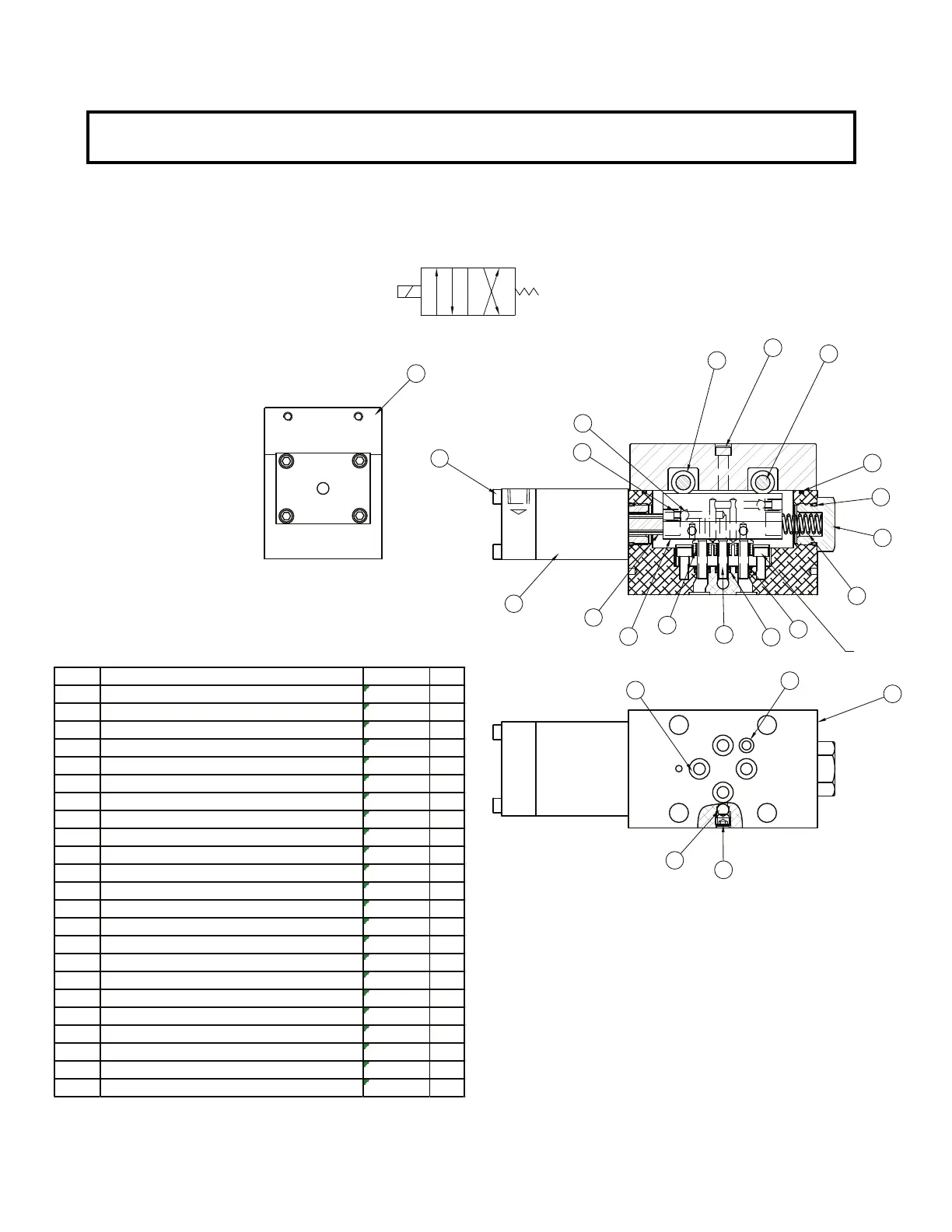

TorcUP AP1000 - VALVE ASSEMBLY; PART# 46297 SS (AIR SOLENOID 4 W;2 P)

ITEM# DESCRIPTION PART # QTY
1 BODY-VALVE 68708 1
2 SLIDER ADV/RET ONLY 44328 1
3 BALL 3/16" 90548 4
4 SET SCREW 1/4-28 X 1/4 CUP 40254 4
5 AIR CYL ASM
41954SS 1
6 O-RING 7/32X11/32 5602009 3
7 BACK UP WASHER 68391 3
8 SHEAR SEAL 68383 3
9 SPRING 68384 3
10 O-RING 2 5/8 X 2 3/4 5602038 1
11 BEARING ROLLER 5/16x1/2x5/16 WIDE 68385 4
12 PIN BEARING 68390 2
13 SET SCREW 5/16-18 X 1/4 CUP 94418 1
14 SHCS #10-32 X 1" LG PLATED 68264 2
15 VALVE TOP PLATE MACHINED 46
272 1
16 SHCS #10-24 X 3.25" 41959 4
17 O-RING 3/16X5/16 5602008 1
18 BALL 1/4" 92549 1
19 VALVE PLUG 2 POSITION SLIDER 46271 1
26 O-RING SAE PORT #10 5603910 1
27 SPRING 68711 1
29 SPACER VALVE SLIDER 46418 1
31 O-RING 5/16X7/16 URE 56020112 4
PART#46297SS (AIR SOLENOID 4W/2P)
15
14
10
2
4
3
1
9
8
12
11
13
17
HYDRAULIC
SCHEMATIC
29
19
4 PLACES
4 PLACES
7
6
5
16
P T
A B
P T
A B
26
27
TORQUE TO
50 IN*LBS.
TORQUE TO
25 IN*LBS.
TORQUE TO
84-108 IN*LBS.
TORQUE TO
150 IN*LBS.
TORQUE TO
75 IN*LBS.
TORQUE TO
50 IN*LBS.
31
18
PART# 46297SS (AIR SOLENOID 4W/2P)
VALVE ASSEMBLY
19
