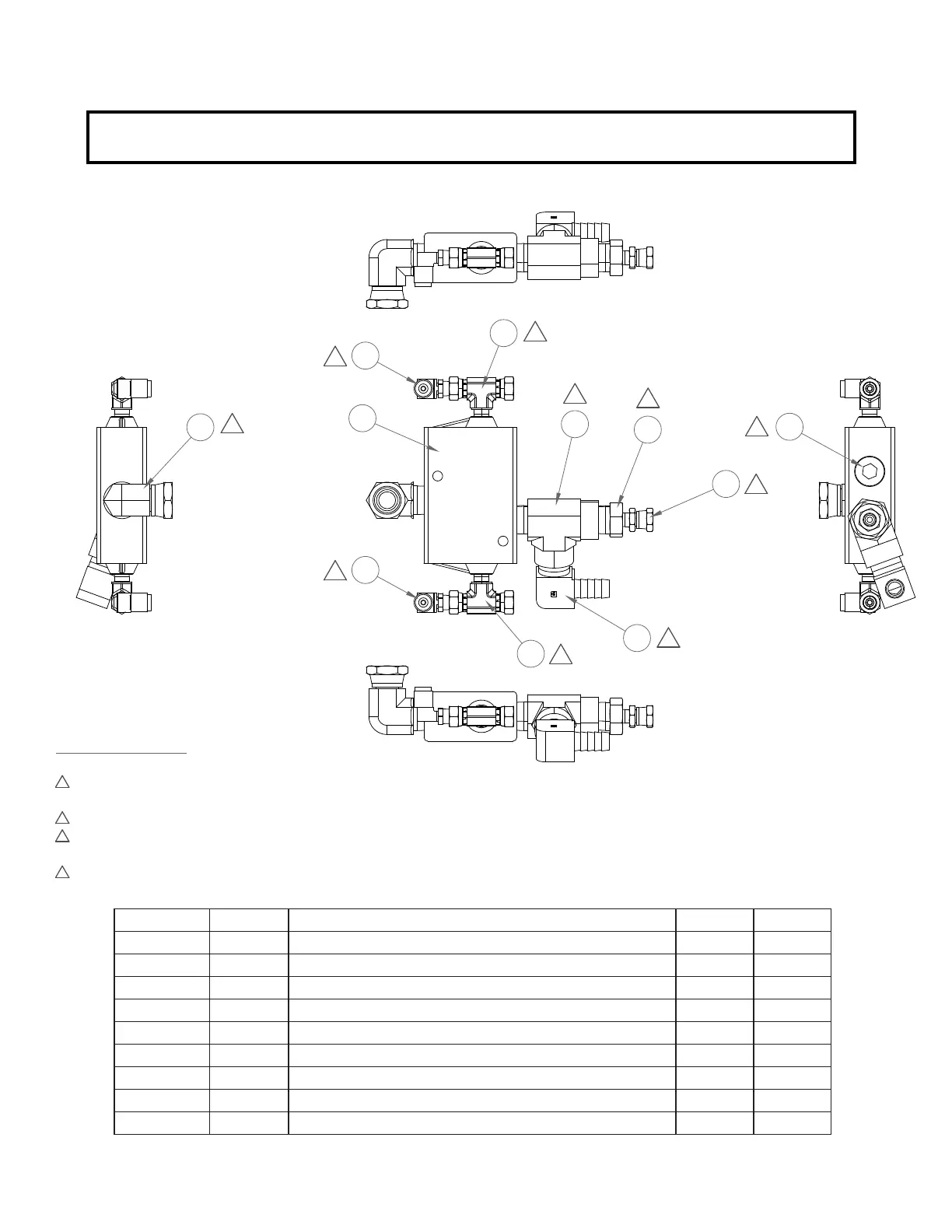

TorcUP AP1000 - PART# 46544 SS (AIR CONTROL VALVE ASSM.)

1
3
4
1
2
1
1
2
3
3
3
1
4
4
104
101
108
102
103
106
107
100
105
107
106
TORQUE NOTES:
APPLY TEFLON TAPE &
TORQUE TO 20-25 FT*LBS
TORQUE TO 20-25 FT*LBS
APPLY TEFLON TAPE &
TORQUE TO 80-100 IN*LBS
TORQUE TO 45-55 IN*LBS
Balloon # Item Description Quantity UOM
100 45969 AIR CONTROL VALVE 1/2 PORTS 1 EA
101 6011456 FITTING SWIVEL ELBOW 1/2 NPT 1 EA
102 42381 SWIVEL ADP 1/8 1 EA
103 42377 PIPE ADP 1/2-1/8 1 EA
104 42378 STREET TEE 1/2" NPT 1 EA
105 45991 HOSE BARB ELBOW 1/2 NPT TO 1/2 TUBE 1 EA
106 42968 1/8 SWIVEL TEE 2 EA
107 69362 SWIVEL NUT ELBOW 2 EA
108 46697 1/2 FLUSH PLUG W /SEALANT 1 EA
PART# 46544SS (AIR CONTROL VALVE ASSM.)
VALVE SUB ASSEMBLY
21
