Torex VDC Series - Accessories; Rotation Indicator; Dimensions

16 1 - Technical Catalogue
TO320 T - EN - Ed. 04.09

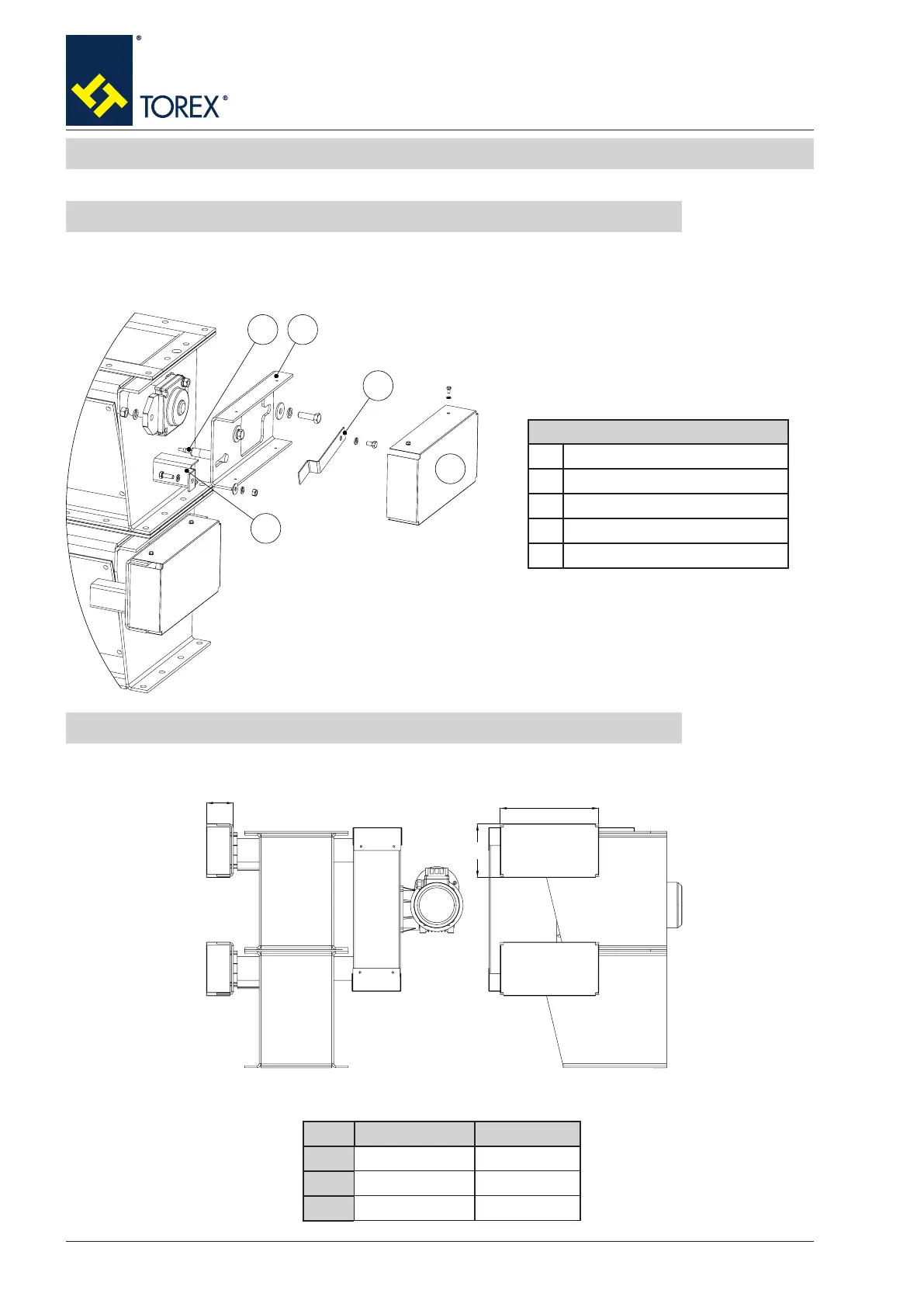

ACCESSORIES5.
Rotation indicator5.1
A rotation indicator kit based on a capacitive sensor is available for checking the opening of the VDC
ap.
Rotation indicator parts
1 Guard
2 Blade
3 Indicator xing plate
4 Capacitive sensor
5 Sensor protection
Type 200-250-315 400-500
A
300 mm 325 mm
B
165 mm 185 mm
C
82 mm 90 mm
1
2
3
4
5
A
B
C
Dimensions5.2
