16 Instructions for Use TORMAX iMotion 1301/1301.S / 1302.KI /1401 T-1305 en
Fault Display
E.g. H91 or E42 See chapter 8 for the meaning of the display.
• Reset by pressing the selector key 2 briefly.
Resetting the System
• Press the selector key 2 for at least 5 seconds.
The software is restarted. The control system then conducts a calibration run, checks the travel distance
and looks for the closed position. Displayed as H62 and H67.

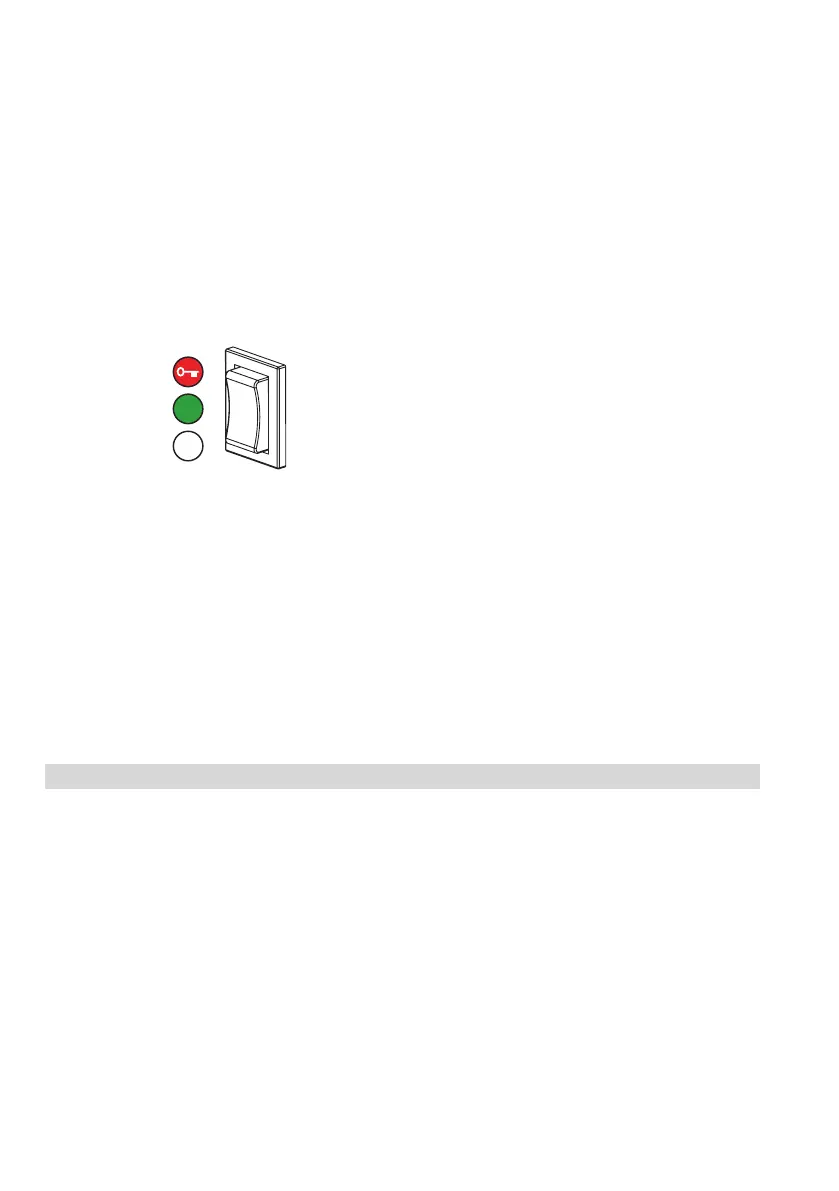

5.3 Operation with an Operating Mode Switch u
Selection of Operating Modes
The switch position defines the operating mode.
OFF
AUTOMATIC 1
OPEN
Resetting the system
– Change the operating mode in the event of a fault
or
– Cut o power supply to the system for at least 5 seconds (only system without battery unit).
5.4 Operation on Power Failure
Opening a Door using a Key Switch u with a Battery Unit u
• Turn the key switch to the “on” position and hold in place for at least 5 seconds, then turn the key
to the original position.
The battery is activated using the “wake up” function.
The key switch must not remain permanently in the “on” opposition.
The door is unlocked and opened.
The battery switches o again after the time programmed
by the installation engineer or
when the battery is fully discharged.
If required, the operating mode can be changed on the user interface during the wake-up.
5.5 Resetting the Panic Fitting u
• Select operating mode OFF (operating mode switch , user interface ) or disconnect the drive from
mains (installation switch, mains plug).
• Push the door leaf back into the initial position.
• Choose operating mode AUTOMATIC 1 or switch on operator.
T1305_4
