Instructions for Use TORMAX iMotion 1301/1301.S /1302.KI /1401 T-1305 en 3
1 General Information
1.1 Target Groups
• Operator of the automatic swing door. The operator is the person responsible for the operation and
maintenance of the system.
• Persons instructed by the operator to carry out certain duties, for example the servicing and main-
tenance of the automatic swing door.
1.2 Storage and Forwarding of the Manual
• Store the instructions for use in the vicinity of the automatic door system.
• If the manual has become illegible due to constant usage, reorder the instructions.
For download and print out see also: www.tormax.com
• When the door system is transferred or resaled to a third party, pass the following documents to
the new owner:
– This instructions for use
– Documentation concerning modification and repair work
– Proof of the regular examinations  System test book T-879
1.3 Area of Application
Product name, door system: Automatic swing door
Product name, door drive: TORMAX iMotion
®
1301 Swing Door Drive
TORMAX iMotion
®
1301.S Swing Door Drive
TORMAX iMotion
®
1302.KI Swing Door Drive
TORMAX iMotion
®
1401 Swing Door Drive

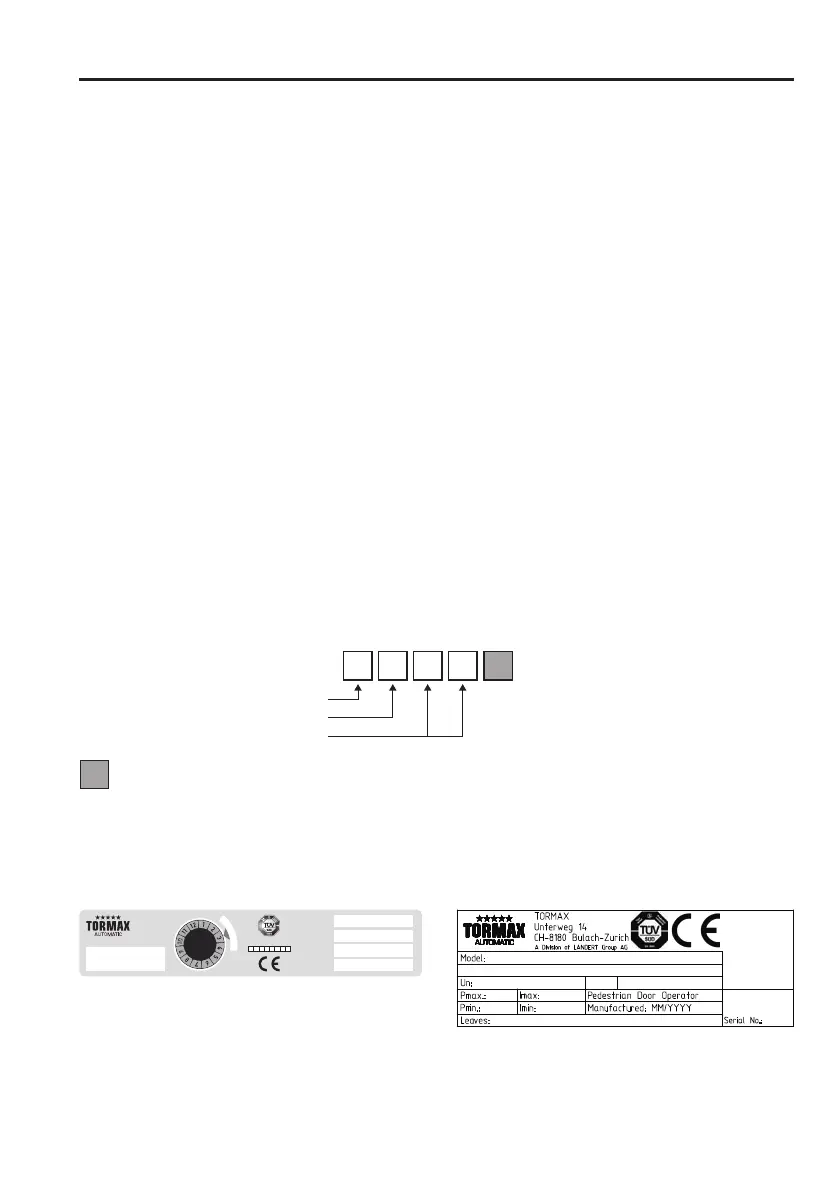

The door drives are defined in more detail by a 4-figure number:
The identification plate with the serial number is
placed in the control box (1401) or on the drive
itself under the casing (1301, 1301.S, 1302.KI).
Door system identification plate (example):
located on the side panel of the drive.
Continuous numbering
Drive for swing door system
Increasing power
1 3 0 1
.S = Drive with increased power
.KI= Drive integrated in lintel without linkage
Contact
Manufactured
Initial
Commissioning
System No.
Sliding Door
System
TORMAX …………… .HERM
WT-299 e 3.18
DIN 18650-1:2010
N
e
x
t
S
e
r
v
i
c
e
2019
000/000/00
MM.YYYY
DD.MM.YYYY
Max Muster AG
Hauptstrasse 43 – 8049 Zürich
SERVICE: 043 827 33 55
