PARTS LIST PARTS LIST

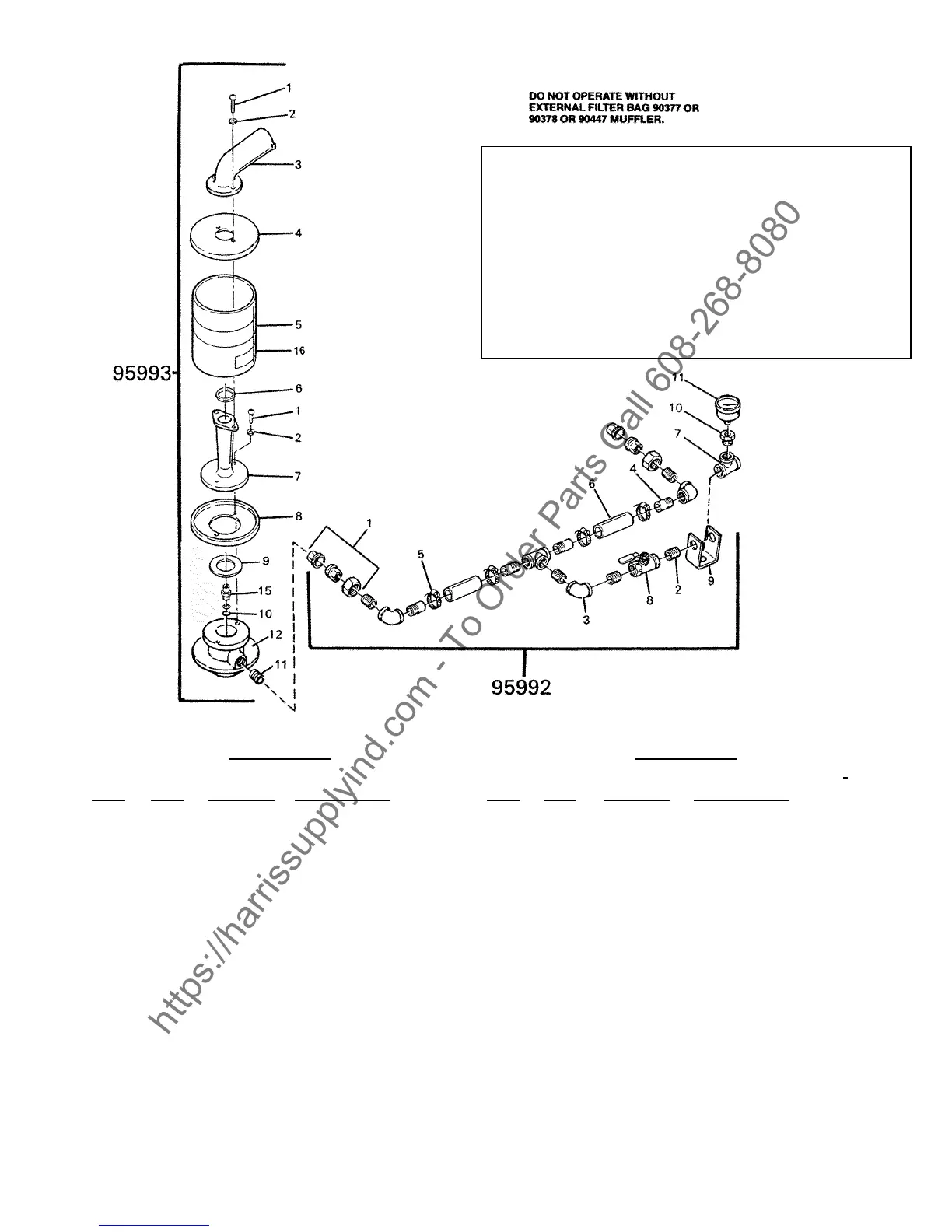

EXTERNAL FILTER AIR VAC (95993) CONNECTOR ASSY. DOUBLEHEAD (95992)
ITEM QTY. PART NO. DESCRIPTION ITEM QTY. PART NO. DESCRIPTION
1 4 02038 SCREW 1 2 06384 JOINT-UNION
2 4 01574 WASHER 2 5 05730 PIPE-NIPPLE
3 1 05734 ELBOW CONNECTION 3 3 05729 FITTING-IRON ELBOW
4 1 05735 MUFFLER COVER 4 4 05726 FITTING-GALV. ADAPTOR
5 1 05736 MUFFLER SHELL 5 4 05727 CLAMP
6 1 05737 GASKET 6 2 11561 HOSE
7 1 05723 NOZZLE 7 2 05731 PIPE-TEE
8 1 04927 MUFFLER BASE 8 1 04985 VALVE
9 1 05724 GASKET 9 1 15163 BRACKET
10 3 02481 RING-O 10 1 05733 PIPE-BUSHING
11 1 05730 PIPE-NIPPLE 11 1 05732 AIR PRESSURE GAGE
12 1 11407 BASE
15 1 04982 JET (3/16)
1 04983 JET (7/32)
1 04984 JET (1/4)
16 1 16510 LABEL- WARNING
TTACHING EXTERNAL FILTER:
Match notches in swivel filter collar with lugs on fan
chamber and fasten securely by twisting to right. Attach
filter tab onto bag rod.
MAINTENANCE OF EXTERNAL FILTER:
For maximum operating efficiency and to insure longer wear,
remove filter and empty by detaching clamp at bottom of filter
after every use.
Catalog No. 90377 and 90378 Polypropylene filters are
recommended for furnace and boiler cleaning operations.
https://harrissupplyind.com - To Order Parts Call 608-268-8080
