Tornado 90569

19

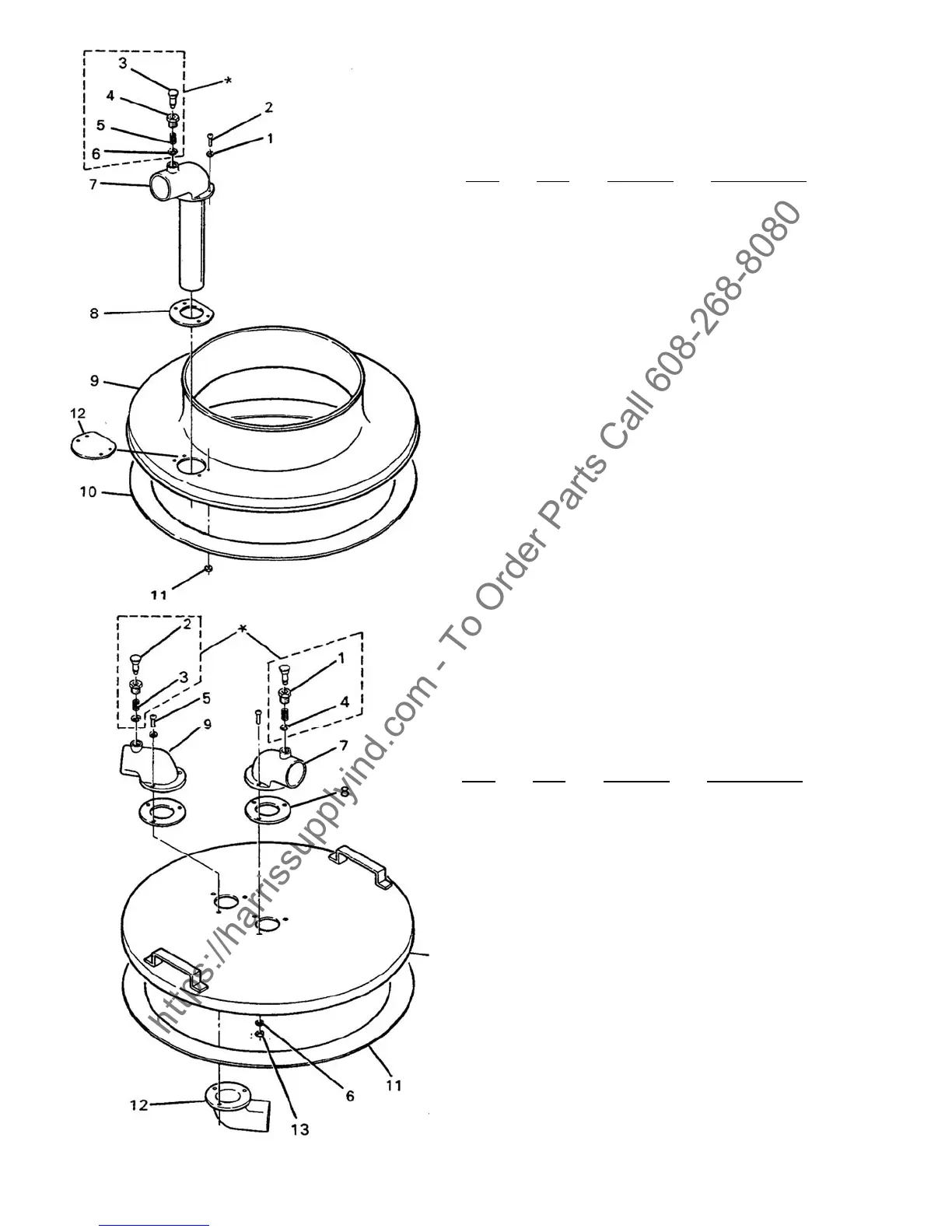

PARTS LIST
ADAPTOR COVER - 94155 (See Left)
ITEM QTY. PART NO. DESCRIPTION
1 4 01713 WASHER-LOCK
2 4 12896 SCREW-PHIL. RND HD.
3 1 08016 PIN
4 1 08015 NUT - HEX
5 1 08017 SPRING
6 1 08018 RING-RETAINING EXT.
7 1 14558 INTAKE WELD ASSY.
8 1 14554 GASKET-INTAKE
9 1 14553 ADAPTER COVER
10 1 17131 GASKET- TANK COVER
11 4 01604 NUT-FINISHED HEX
12 1 17537 COVER PLATE
* 1 08080 LOCK COMPLETE
PARTS LIST
ADD-A-TANK – 94655 (See Left)
ITEM QTY. PART NO. DESCRIPTION
1 2 08015 NUT-HEX
2 2 08016 PIN
3 2 08017 SPRING
4 2 08018 RING-RETAINING EXT.
5 6 01995 SCREW-PHIL. PAN HD.
6 3 01713 WASHER-LOCK
7 1 04657 INTAKE
8 2 04660 GASKET
9 1 04656 INTAKE
10 1 14638 TANK COVER S/A
11 1 17131 GASKET
12 1 04658 DEFLECTOR
13 3 01604 NUT-FINISHED HEX
* 1 08080 LOCK COMPLETE
