Tornado 90569

17
PARTS LIST

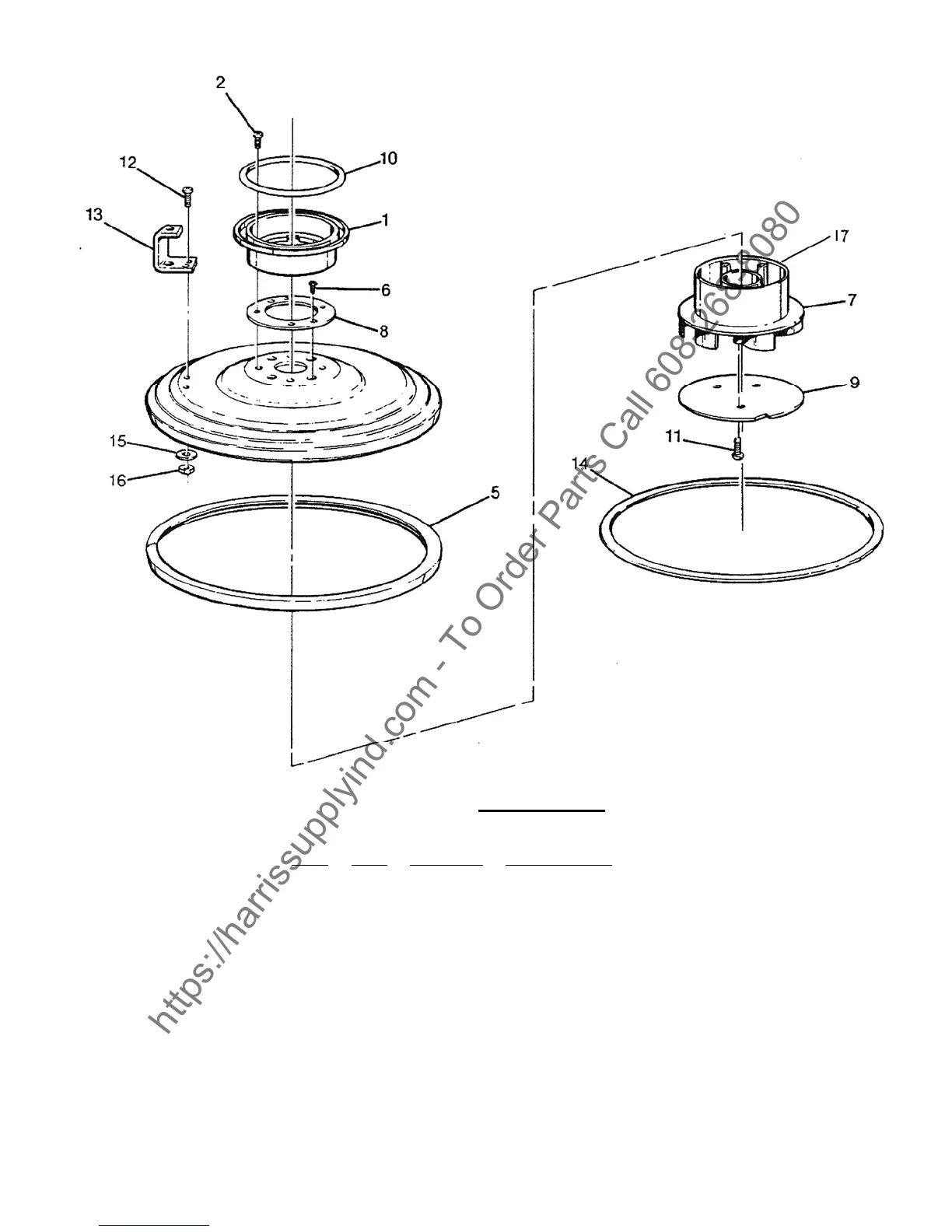

TANK COVER (98850)
ITEM QTY. PART NO. DESCRIPTION
1 1 90480 ADAPTOR ASSY.
2 4 02053 SCREW
3 4 06188 NUT - WELD
5 1 11700 BUMPER
6 4 11394 SCREW
7 1 11358 INTAKE GUIDE
8 1 11386 GASKET
9 1 12300 PLATE
10 1 08004 GASKET
11 3 11390 SCREW
12 2 00086 SCREW
13 1 11414 BRACKET
14 1 11356 GASKET
15 2 07741 SEALING WASHER
16 2 07533 NUT - HEX
17 1 80564 GASKET PRESS-SENSITIVE
