ATTENTION:
The execution of brush
disassembly operations with
electric supply on may cause
hand injuries.
ATTENTION:
The handling of the brush
operation must be carried out
using suitable gloves to
protect both mechanically
from contact with the bristles
and the chemical risk of
contact with dangerous
solutions.

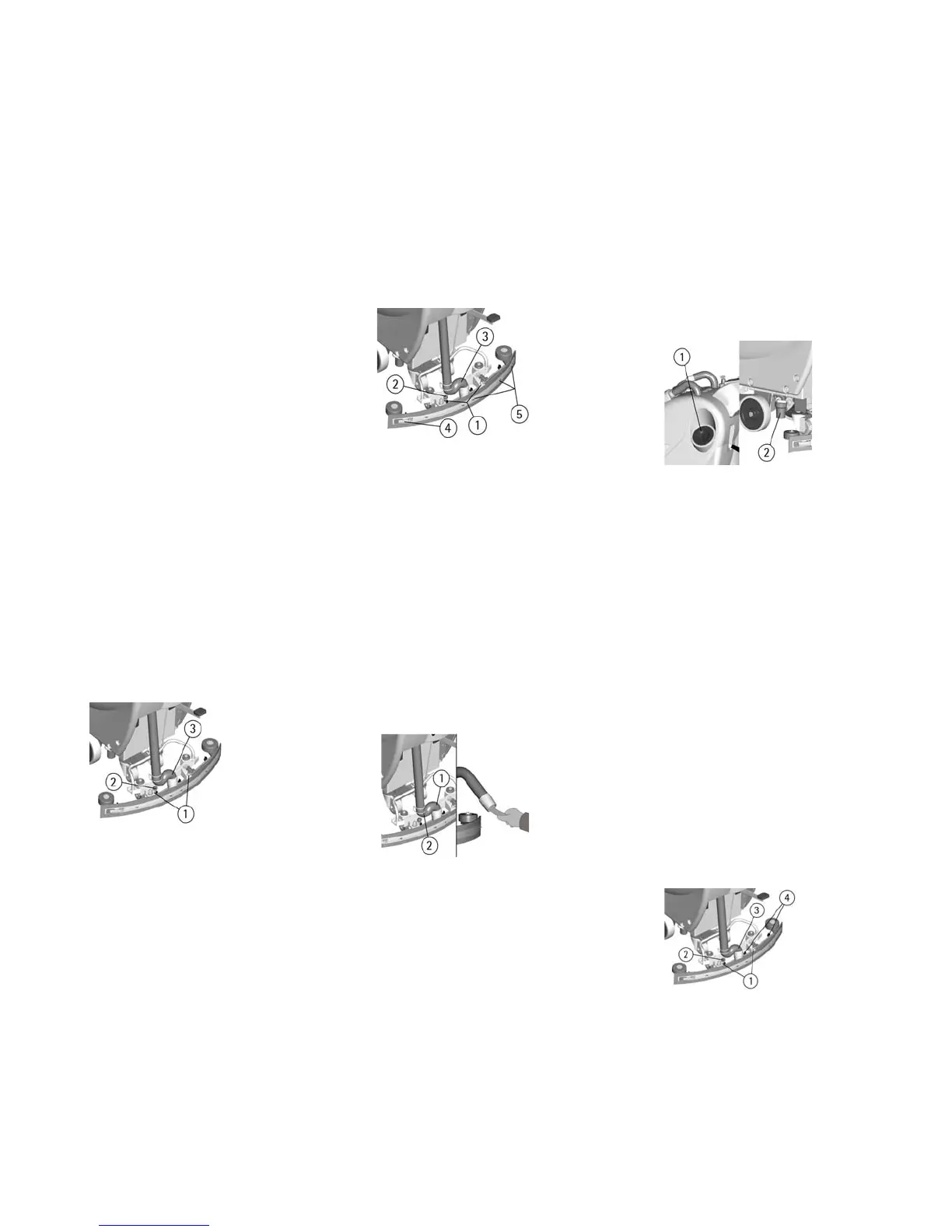

Squeegee cleaning
Keeping the squeegee clean
guarantees the best drying action.
For cleaning, it is necessary to:
1. Take off the squeegee hose (3)
from its coupling.
2. Disassemble the squeegee from
its support by rotating the lever (2)
counterclockwise and sliding the
stud bolts (1) in their slots up to
their release.
3. Clean with care the internal part
of the squeegee inlet eliminating
eventual dirt residuals.
4. Clean with care the squeegee
rubbers.
5. Reassemble all parts.
WEEKLY
MAINTENANCE
Rear squeegee rubber
replacement
Check the squeegee rubber wear
and eventually turn or replace it.
For replacement, it is necessary to:
1. Lift the squeegee using the lever
(fig. 1, pos. 17).
2. Release the hook (4) of the
rubber holder blade and take the
rubber off.
3. Turn the rubber to a new side or
replace it.
To reassemble the squeegee
repeat in reverse the operations
mentioned above, inserting the
rubber on the guides (5) and
blocking it with the rubber
holder blade.
Squeegee hose cleaning
In case of insufficient suction,
check that the squeegee hose is not
obstructed. To clean it, proceed as
follows:
1. Take off the hose from the
squeegee coupling (1) and release
the guide spring of the suction
hose (2).
2. Wash the inside of the hose with
a water jet, from the squeegee hose
side.
3. To reassemble the hose repeat in
reverse the operations mentioned
above.
Cleaning of solution
tank and filter
1. Bring the machine to an
appropriate place for draining
tanks.
2. Unscrew the solution tank cap
(1).
3. Remove solution filter (2).
4. Rinse the solution tank with a
water jet.
5. Rinse the solution tank filter
placed inside the exhaust plug,
under the machine.
6. Reassemble all parts and close,
if present, the solution valve of the
drainage device.
ATTENTION:
This operation must be
carried out using gloves for
protection against dangerous
solutions.
TWO-MONTH
MAINTENANCE
Front squeegee rubber
replacement
Check the wear of the squeegee
rubber and eventually replace it.
For replacement, it is necessary to:
1. Take off the squeegee hose (3)
from its coupling.
2. Disassemble the squeegee from
the support rotating the levers (2)
counterclockwise sliding the stud
bolts (1) in their slots.
3. Unscrew the wing nuts (4) in the
front part of the squeegee.
4. Take off the rubber holder
blade.
5. Replace the front rubber.
6. Reassemble all parts.
The checking of all the other
machine operations is left to an
authorized technical assistant.
