INTRODUCTORY COMMENT
Thank you for having chosen our machine. This floor-cleaning machine is used for industrial and
commercial cleaning and is able to clean any type of floor. During its forward movement, the combined
action of the brush and the detergent solution removes the dirt that is aspirated through the rear suction
assembly, giving a dry surface.
The machine must be used only for such purposes. It gives the best performance if it is used correctly and
maintained in perfect condition. We therefore ask you to read this instruction booklet carefully whenever
difficulties arise in the course of the machine’s use.

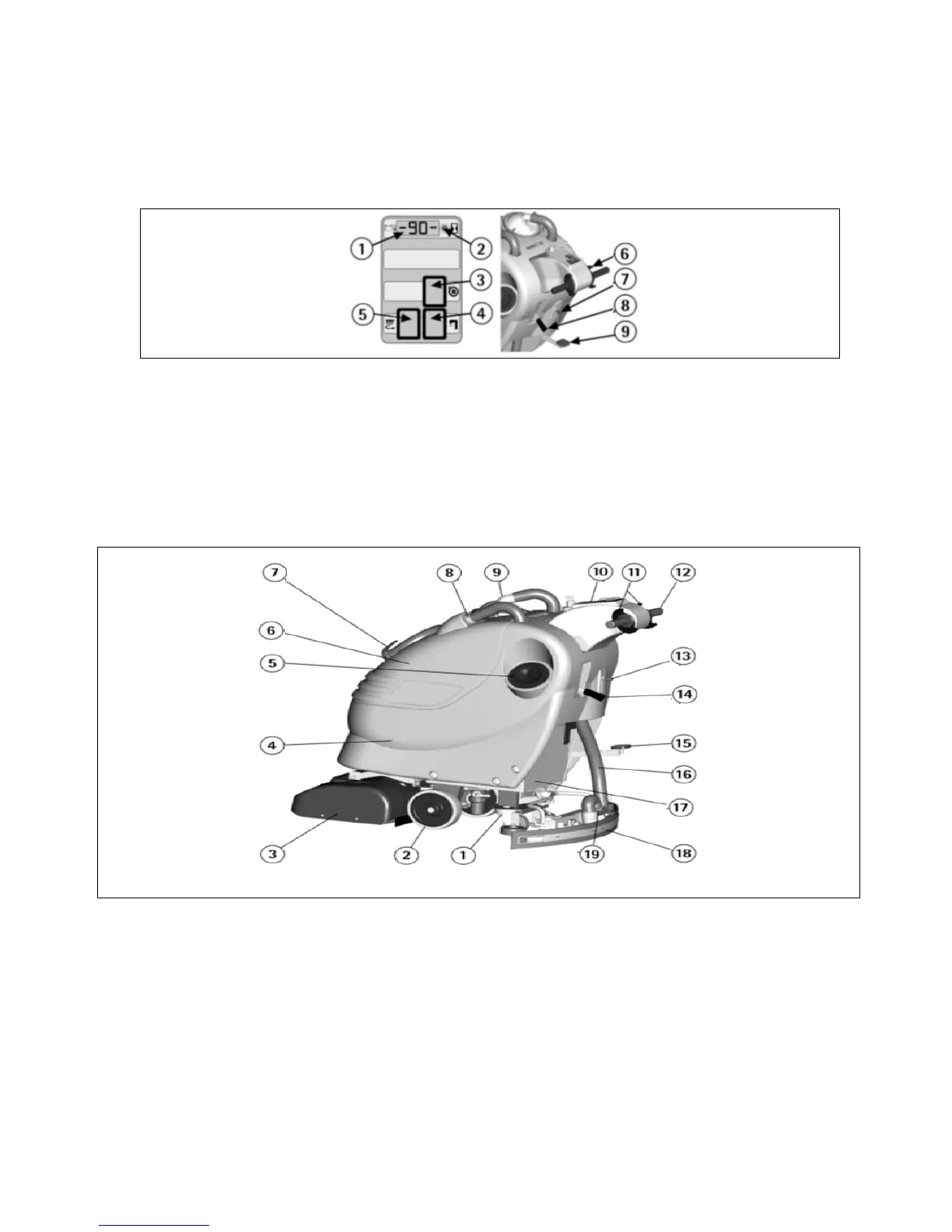

LEGEND INSTRUMENT BOARD AND
CONTROLS
1. CHARGE LEVEL DISPLAY: BATTERIES/HOUR
METER
2. VISUALIZATION PUSH BUTTON: HOUR/METER
3. SUCTION MOTOR SWITCH
4. SOLUTION VALVE OPEN SIGNAL LAMP
5. BRUSH MOTOR SWITCH
6. BRUSH ACTIVATION LEVERS
7. SOLUTION VALVE LEVER
8. SQUEEGEE LIFTING LEVER
9. BRUSH HEAD LIFTING PEDAL
LEGEND MACHINE
1. CASTER WHEELS
2. WHEELS
3. BRUSH HEAD
4. SOLUTION TANK
5. SCREW CAP FOR INLET DETERGENT SOLUTION
6. RECOVERY TANK
7. RECOVERY TANK DRAIN HOSE
8. INLET OPENING SUCTION HOSE
9. FLOAT ASSEMBLY COVER
10. INSTRUMENT BOARD
11. BRUSH ACTIVATION LEVER
12. HANDLE BARS
13. SOLUTION VALVE LEVER
14. SQUEEGEE LIFTING LEVER
15. BRUSH HEAD LIFTING PEDAL
16. SUCTION HOSE
17. BATTERY
18. SQUEEGEE ASSEMBLY
19. SPRING SQUEEGEE HOSE GUIDE
