ASSEMBLY

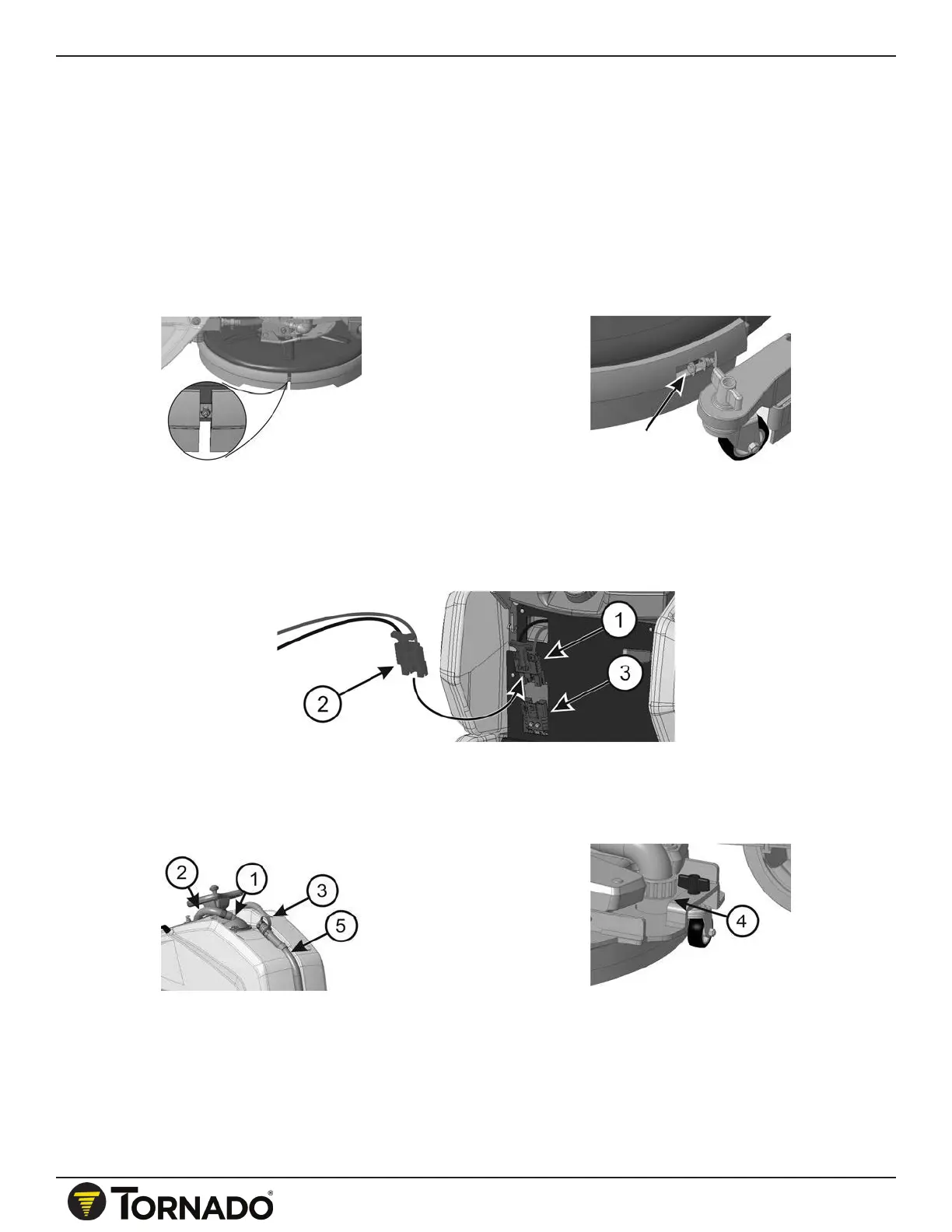

ASSEMBLING AND DISASSEMBLING THE SPLASH GUARDS
The two splash guards must be assembled on the brush base cover.
1. Insert the metal supports inside the dedicated housings on the rubber. Place the round hole to
the plain end of the support on the screw in front of the cover. Secure the supports by tightening
the nut.
2. Screw the screws on the rear part of the cover, on the free end of the metal supports
and the locks.
The operation has to be made for both the splash guards rubbers.
With the brush on, the splash guard rubber has to slightly touch the floor.
To disassemble the supports just repeat these operations in reverse order.
FLOOR CLEANING
CONNECTING THE BATTERY CONNECTOR AND SWITCHING ON THE MACHINE
Once that the battery charging has been completed:
1. Disconnect the connector (2) of the battery charger from the battery connector (1).
2. Connect then the battery connector (1) to the machine connector (3).
RECOVERY TANK
Check that the suction filter cap (1) is properly secured after turning the levers and that it is
properly connected to the suction motor hose (2). Verify that the squeegee hose is properly
inserted in its locations (3) and (4), also check that the draining hose cap (5) on the front of the
machine is closed.
